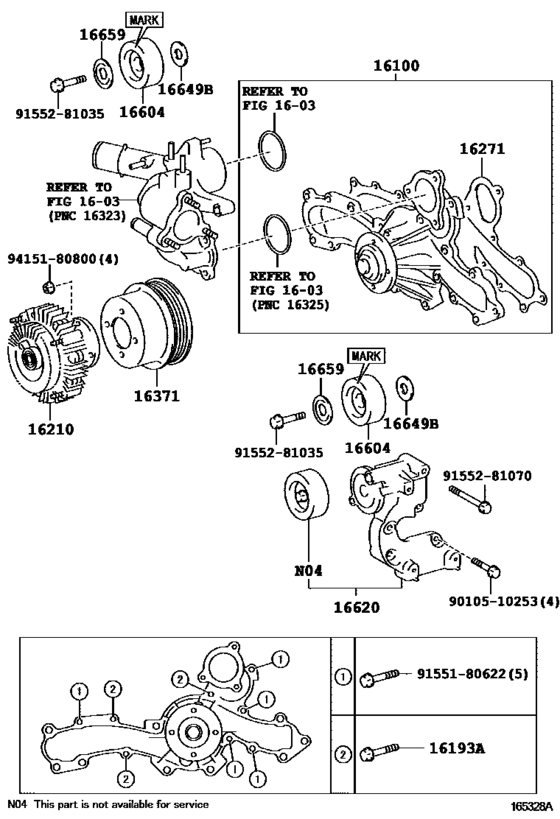

| 16100-39545 |
Pump Assy, Engine Water |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16193-31080 |
Bolt(For Water Pump Cover) |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16210-31040 |
Coupling Assy, Fluid |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16271-31040 |
Gasket, Water Pump |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16371-31040 |
Pulley, Fan |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16604-31020 |
Pulley Sub-Assy, Idler, No.2 |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16604-31030 |
Pulley Sub-Assy, Idler, No.2 |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16620-31051 |
Tensioner Assy, V-Ribbed Belt |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16649-31020 |
Plate, Idler Pulley Cover |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16659-31011 |
Plate, Idler Pulley Cover, No.2 |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 16659-AD010 |
Plate, Idler Pulley Cover, No.2 |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 90105-10253 |
BOLT |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 91551-80622 |
BOLT FLANGE |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 91552-81035 |
BOLT |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 91552-81070 |
Bolt(For Alternator) |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
| 94151-80800 |
Nut (For Transmission Control Cable) |
Water Pump ([01.2013 - ] (1301- )6GRFE) |
