GRB53

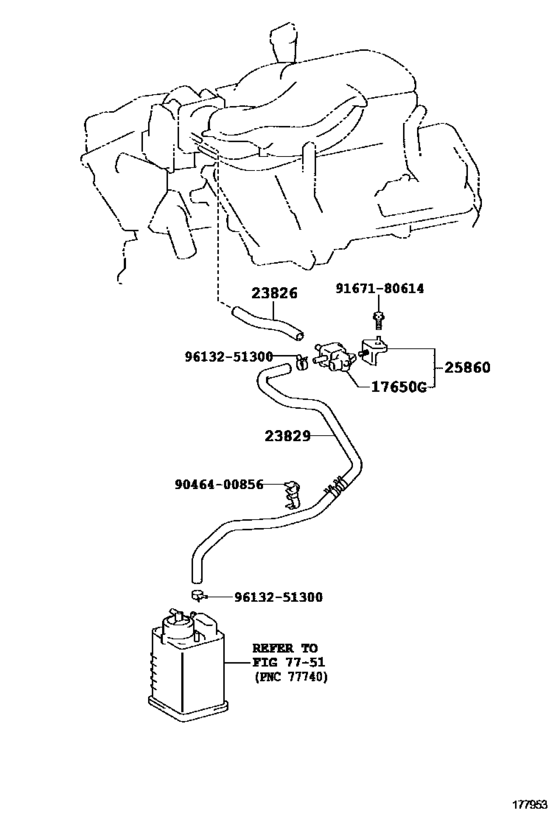

Vacuum Piping ([01.2013 - ] (1301- )6GRFE) 7
| # | OEM | Part name |
|---|---|---|
| 17650 | 90910-12276 | Valve, Duty Vacuum Switching |
| 23826 | 23826-31220 | Hose, Fuel Vapor Feed, No.1 |
| 23829 | 23829-0P140 | Hose, Fuel Vapor Feed, No.3 |
| 25860 | 25860-31100 | Valve Assy, Vacuum Switching, No.1 |
| 9046400856 | 90464-00856 | Clamp |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) |
| 9613251300 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| OEM | Part name | Category |
|---|---|---|
| 23826-31220 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([01.2013 - ] (1301- )6GRFE) |
| 23829-0P140 | Hose, Fuel Vapor Feed, No.3 | Vacuum Piping ([01.2013 - ] (1301- )6GRFE) |
| 25860-31100 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([01.2013 - ] (1301- )6GRFE) |
| 90464-00856 | Clamp | Vacuum Piping ([01.2013 - ] (1301- )6GRFE) |
| 90910-12276 | Valve, Duty Vacuum Switching | Vacuum Piping ([01.2013 - ] (1301- )6GRFE) |
| 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Vacuum Piping ([01.2013 - ] (1301- )6GRFE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([01.2013 - ] (1301- )6GRFE) |
