GRB53

Toyota COASTER · 2013 · 3,942 parts · 228 categories
GRB53 ×

← Back to categories

3,942 items

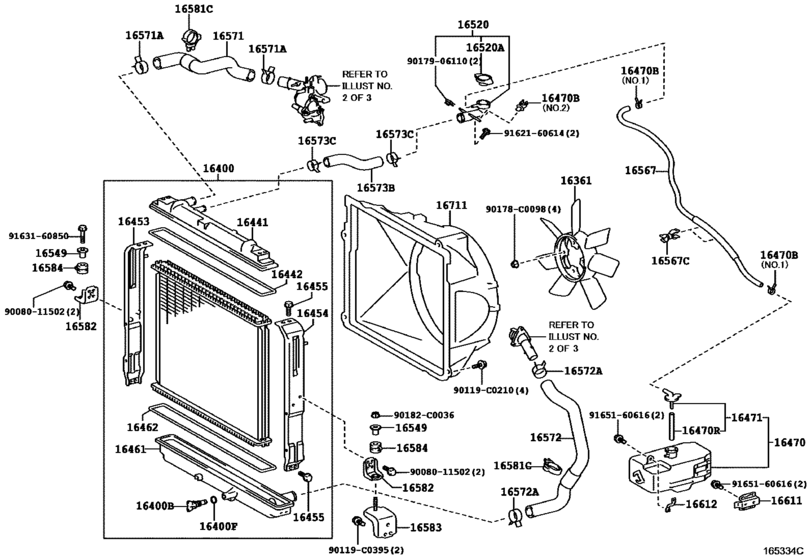

Radiator & Water Outlet ([01.2013 - ] (1301- )6GRFE) 82
#OEMPart name
16031 16031-31011 Water Inlet Sub-Assy, W/thermostat
16206 16206-31170 Pipe Sub-Assy, Water By-Pass
16261 16261-31100 Hose, Water By-Pass
16261 96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 16264-31110 Hose, Water By-Pass, No.2
16267 16267-31010 Hose, Water By-Pass, No.3
16267 96136-42501 Clip(For Ventilation Hose)
16281 16281-31060 Hose, Water By-Pass, No.4
16281 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16282 16282-31040 Hose, Water By-Pass, No.5
16283 16283-31030 Hose, Water By-Pass, No.6
16283 96136-52201 Clip(For Ventilation Hose No.2)
16295 16295-31020 Hose, Water By-Pass, No.7
16296 16296-31090 Hose, Water By-Pass, No.8
16297 16297-31050 Hose, Water By-Pass, No.9
16323 16323-31021 Housing, Water Inlet
16325 16325-31010 Gasket, Water Inlet Housing, No.1
16326 16326-31020 Gasket, Water Inlet Housing, No.2
16332 16306-31021 Pipe, Water Outlet, No.1
16341 16341-31010 Gasket, Water Outlet
16356 16356-31011 Joint, Water By-Pass, Rear
16361 16361-31060 Fan
16400 16400-0P400 Radiator Assy
16400 16417-15210 Plug, Radiator Drain Cock
16400 16418-15520 Packing(For Radiator Drain Cock)
16441 16441-0P400 Tank, Radiator, Upper
16442 16442-0P400 Ring, O(For Radiator Upper Tank)
16453 16453-0P400 Plate, Radiator Side
16454 16454-0P400 Plate, Radiator Side
16455 16455-0P400 Bolt, Radiator Side Support Plate
16461 16461-0P400 Tank, Radiator, Lower
16470 16470-17061 Tank Assy, Radiator Reserve
16470 16470-17062 Tank Assy, Radiator Reserve
16470 90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)
16470 90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)
16470 90467-12026 Clamp Or Clip(For Radiator Reserve Tank Hose)
16470 90445-12078 Hose(For Radiator Breather)
16471 16405-17030 Cap Sub-Assy, Reserve Tank
16520 16520-17021 Filler Assy, Water
16520 16520-17022 Filler Assy, Water
16520 16401-31480 Cap Sub-Assy, Radiator
16520 16401-31520 Radiator Cap Sub-Assy (108kPa)
16520 16401-36020 Cap Sub-Assy, Radiator
16549 16549-61010 Collar, Radiator Support, No.2
16567 16567-0P020 Hose(For Radiator Reserve Tank)
16567 90464-00366 Clamp Or Clip(For Radiator Reserve Tank Hose No.3)
16571 16571-0P270 Hose, Radiator, Inlet
16571 90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-0P270 Hose, Radiator, Outlet
16573 16573-17020 Hose, Radiator, No.3
16573 90467-31003 Clip(For Ventilation Hose)
16581 16581-31060 Clamp, Hose(For Water Hose)
16582 16582-17010 Bracket, Radiator, No.1
16583 16583-17010 Bracket, Radiator, No.2
16584 16584-61020 Insulator, Radiator Mounting
16603 16603-28020 Pulley Sub-Assy, Idler
16611 16611-16010 Bracket(For Radiator Reserve Tank)
16612 16612-17010 Bracket, Radiator Reserve Tank, No.2
16612 16612-17011 Bracket, Radiator Reserve Tank, No.2
16631 16631-31012 Bracket, Idler Pulley
16649 16659-31011 Plate, Idler Pulley Cover, No.2
16649 16659-AD010 Plate, Idler Pulley Cover, No.2
16711 16711-31470 Shroud, Fan
90119 90119-C0210 New Genuine Part
90119 90119-C0395 New Genuine Part
90178 90178-C0098 New Genuine Part
90182 90182-C0036 New Genuine Part
9011908 90119-08B42 BOLT WWASHER
9008011502 90080-11502 New Genuine Part
9010510469 90105-10469 Bolt (For Rear Axle Bearing Case Rh)
9012606028 90126-06028 Bolt, Stud(For Oil Pan)
9012606029 90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe)
9012606029 90126-A0014 Bolt, Stud(For Oil Strainer)
9017906110 90179-06110 New Genuine Part
9155180620 91551-80620 Bolt
9155180635 91551-80635 Bolt(For Head To Camshaft Bearing Cap)
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9163160850 91631-60850 BOLT WWASHER
9165160616 91651-60616 BOLT
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9676135031 96761-35031 Ring, O(For Water Inlet Pipe)
