GRB53

Toyota COASTER · 2013 · 3,942 parts · 228 categories
GRB53 ×

← Back to categories

3,942 items

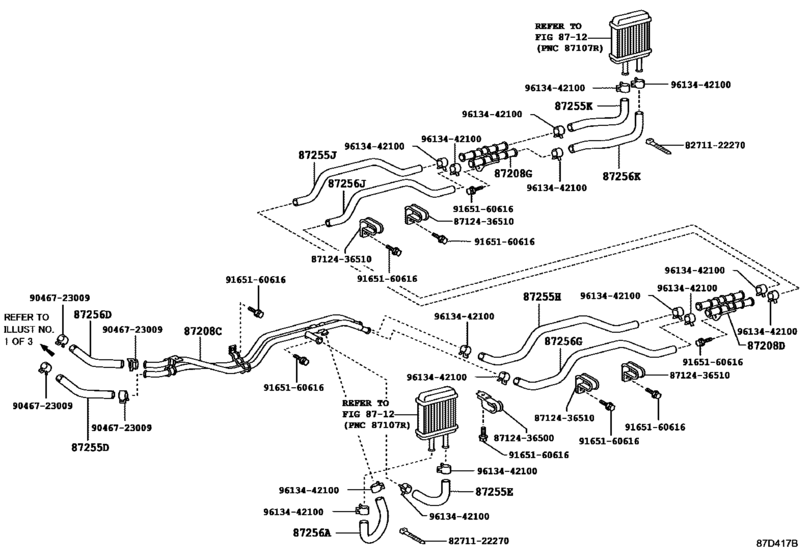

Heating & Air Conditioning - Water Piping ([01.2013 - 07.2015] REAR (1301-1507)23S) 20
#OEMPart name
87208 87208-0S040 Pipe Sub-Assy, Heater Water, C
87208 87208-36B40 Pipe Sub-Assy, Heater Water, C
87208 87208-0S060 Pipe Sub-Assy, Heater Water, D
87208 87208-36840 Pipe Sub-Assy, Heater Water, D
87255 87245-3C780 Hose, Rear Heater Water Inlet, D
87255 87245-0S170 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87255 87245-36D10 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87255 87245-0S160 Hose, Heater Water Inlet, H
87255 99556-31000 Hose, Heater Water, Inlet B
87255 87245-0S210 Hose, Heater Water Inlet, J
87255 87245-36D20 Hose, Rear Heater Water Inlet, K
87256 87245-0S180 Hose, Rear Heater Water Outlet, A (From Heater Unit)
87256 87245-36D00 Hose, Rear Heater Water Outlet, A (From Heater Unit)
87256 87245-0S010 Hose, Rear Heater Water Outlet, K
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8712436500 87124-36500 Clamp, Heater
8712436510 87124-36510 Clamp, Heater
9046723009 90467-23009 Clip Or Clamp(For Ventilation Hose)
9165160616 91651-60616 BOLT
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
