GRB53

Toyota COASTER · 2013 · 3,942 parts · 228 categories
GRB53 ×

← Back to categories

3,942 items

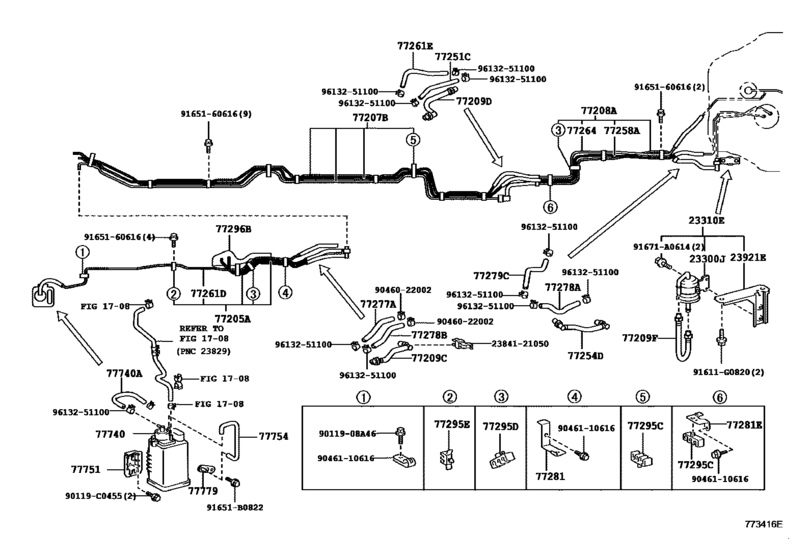

Fuel Tank & Tube ([01.2013 - 07.2015] FUEL TUBE (1301-1507)GRB53) 49
#OEMPart name
23300 23300-31210 Filter Assy, Fuel
23310 23310-31010 Filter Assy, Fuel Pump
23921 23921-31040 Support, Fuel Filter
77205 77205-0S020 Tube Sub-Assy, Fuel Main
77205 77205-0S030 Tube Sub-Assy, Fuel Main
77207 77207-0S010 Tube Sub-Assy, Fuel Main, No.3
77207 77207-0S020 Tube Sub-Assy, Fuel Main, No.3
77208 77208-0S020 Tube Sub-Assy, Fuel Main, No.4
77209 77209-0S010 Tube Sub-Assy, Fuel Tank Main
77209 77209-0S050 Tube Sub-Assy, Fuel Tank Main
77209 77209-0S020 Tube Sub-Assy, Fuel Tank Main
77209 77209-0S060 Tube Sub-Assy, Fuel Tank Main
77209 77209-0S040 Tube Sub-Assy, Fuel Tank Main
77251 95334-06015 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
77251 95334-06022 Hose, Fuel
77254 77209-0S030 Hose, Fuel
77254 77209-0S031 Hose, Fuel
77254 77209-0S070 Hose, Fuel
77258 77258-0S010 Tube, Fuel Return, No.4
77261 77261-0S010 Tube, Fuel Tank To Canister
77261 95333-06030 Hose, Fuel
77261 95338-06030 HOSE, FUEL
77264 77264-0S010 Tube, Canister To Front Side Member
77277 95337-06030 Hose, Fuel, No.2 (For Main Tube, No.2)
77279 77259-0S010 Hose, Fuel
77281 77281-36110 Bracket, Fuel Main Tube, No.1
77281 77281-36010 Bracket, Fuel Tube
77281 77281-36140 Bracket, Fuel Main Tube, No.2
77295 77295-36010 Grommet, Fuel Tube
77295 77295-36020 Grommet, Fuel Tube
77295 77295-36080 Grommet, Fuel Tube
77295 77295-36030 Grommet, Fuel Tube
77296 77296-0S010 Support, Fuel Tube Protector, No.1
77740 77740-36130 Canister Assy, Charcoal
77740 95337-06018 Hose, Fuel Emission
77751 77751-36090 Bracket, Charcoal Canister Base
77754 77754-36050 Hose, Charcoal Canister Outlet, No.1
77779 77779-36010 Tube, Charcoal Canister Outlet
90119 90119-C0455 New Genuine Part
91611 91611-G0820 Bolt
91651 91651-B0822 BOLT WWASHER
91671 91671-A0614 Bolt
9011908 90119-08A46 BOLT WWASHER
2384121050 23841-21050 Clamp, Fuel Pipe, No.1(For Efi)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046110616 90461-10616 New Genuine Part
9165160616 91651-60616 BOLT
9613251100 96132-51100 Clip (For Hose)
