Search › Model › GRB53
GRB53

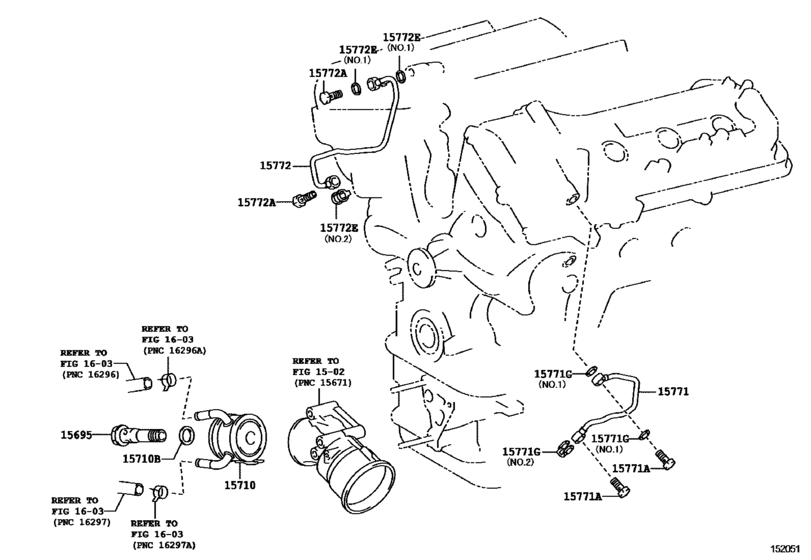

Engine Oil Cooler ([01.2013 - ] (1301- )6GRFE) 8
| # | OEM | Part name |
|---|---|---|
| 15695 | 15695-62010 | Valve Assy, Oil Cooler Relief |
| 15710 | 15710-31050 | Cooler Assy, Oil |
| 15710 | 90210-22001 | Ring, O(For Oil Cooler) |
| 15771 | 15771-31010 | Pipe, Oil, No.1 |
| 15771 | 90401-16043 | Union(For Oil Pipe) |
| 15771 | 90430-16012 | Gasket, W/head Taper Screw Plug |
| 15771 | 90430-16016 | Gasket |
| 15772 | 15772-31010 | Pipe, Oil, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 15695-62010 | Valve Assy, Oil Cooler Relief | Engine Oil Cooler ([01.2013 - ] (1301- )6GRFE) |
| 15710-31050 | Cooler Assy, Oil | Engine Oil Cooler ([01.2013 - ] (1301- )6GRFE) |
| 15771-31010 | Pipe, Oil, No.1 | Engine Oil Cooler ([01.2013 - ] (1301- )6GRFE) |
| 15772-31010 | Pipe, Oil, No.2 | Engine Oil Cooler ([01.2013 - ] (1301- )6GRFE) |
| 90210-22001 | Ring, O(For Oil Cooler) | Engine Oil Cooler ([01.2013 - ] (1301- )6GRFE) |
| 90401-16043 | Union(For Oil Pipe) | Engine Oil Cooler ([01.2013 - ] (1301- )6GRFE) |
| 90430-16012 | Gasket, W/head Taper Screw Plug | Engine Oil Cooler ([01.2013 - ] (1301- )6GRFE) |
| 90430-16016 | Gasket | Engine Oil Cooler ([01.2013 - ] (1301- )6GRFE) |
