Search › Model › GH1
GH1

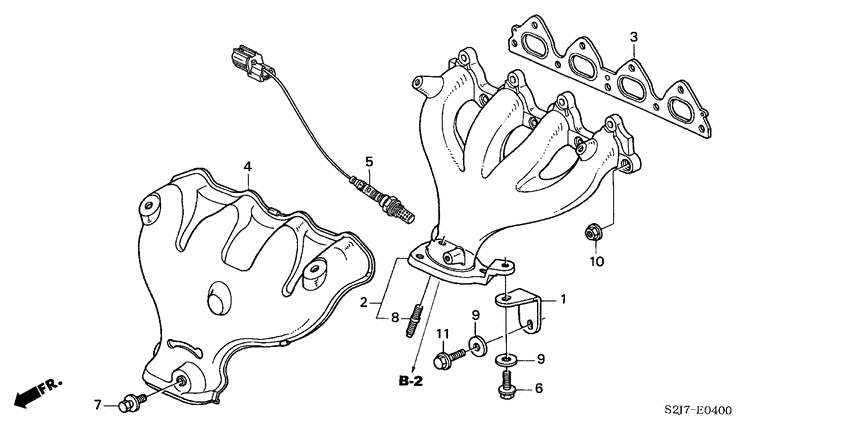

Exhaust manifold (SOHC) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 11942-P3Y-G00 | Stay - EX. MANIFOLD |
| 2 | 18100-P3Y-G01 | Manifold assy - EX. |
| 3 | 18115-P2A-004 | Gasket - EX. MANIFOLD (ISHINO GASKET) |
| 3 | 18115-P2A-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 4 | 18120-P3Y-G00 | Cover a - EX. MANIFOLD |
| 5 | 36531-PEL-013 | Sensor - FR. OXYGEN |
| 5 | 36531-PEL-023 | Oxygen Sensor |
| 5 | 36531-PEL-G02 | Sensor - FR. OXYGEN |
| 6 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 |
| 7 | 90015-PT0-J00 | Bolt-washer - 8X14 |
| 8 | 90065-PG6-000 | Bolt, STUD, 10X24 |
| 9 | 90451-PE2-000 | Washer - SPECIAL, 11X28 |
| OEM | Part name | Category |
|---|---|---|
| 11942-P3Y-G00 | Stay - EX. MANIFOLD | Exhaust manifold (SOHC) |
| 18100-P3Y-G01 | Manifold assy - EX. | Exhaust manifold (SOHC) |
| 18115-P2A-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Exhaust manifold (SOHC) |
| 18115-P2A-004 | Gasket - EX. MANIFOLD (ISHINO GASKET) | Exhaust manifold (SOHC) |
| 18120-P3Y-G00 | Cover a - EX. MANIFOLD | Exhaust manifold (SOHC) |
| 36531-PEL-013 | Sensor - FR. OXYGEN | Exhaust manifold (SOHC) |
| 36531-PEL-023 | Oxygen Sensor | Exhaust manifold (SOHC) |
| 36531-PEL-G02 | Sensor - FR. OXYGEN | Exhaust manifold (SOHC) |
| 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Exhaust manifold (SOHC) |
| 90015-PT0-J00 | Bolt-washer - 8X14 | Exhaust manifold (SOHC) |
| 90065-PG6-000 | Bolt, STUD, 10X24 | Exhaust manifold (SOHC) |
| 90451-PE2-000 | Washer - SPECIAL, 11X28 | Exhaust manifold (SOHC) |
