GGN60

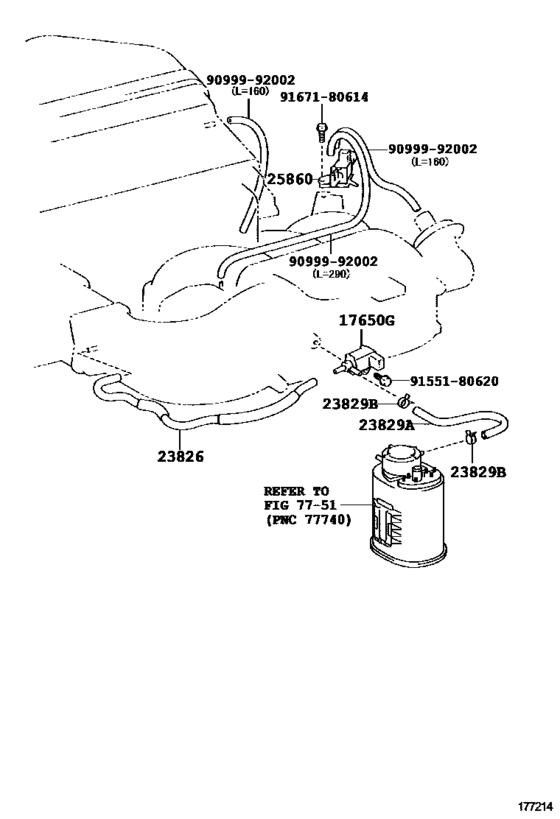

Vacuum Piping ([07.2011 - ] (1107- )1GRFE) 8
| # | OEM | Part name |
|---|---|---|
| 17650 | 90910-12262 | Valve, Duty Vacuum Switching |
| 23826 | 23826-31010 | Hose, Fuel Vapor Feed, No.1 |
| 23829 | 23829-0P020 | Hose, Fuel Vapor Feed |
| 23829 | 90466-T0040 | Clip(For Fuel Hose No.2) |
| 25860 | 25860-31010 | Valve Assy, Vacuum Switching, No.1 |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9155180620 | 91551-80620 | Bolt |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 23826-31010 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([07.2011 - ] (1107- )1GRFE) |
| 23829-0P020 | Hose, Fuel Vapor Feed | Vacuum Piping ([07.2011 - ] (1107- )1GRFE) |
| 25860-31010 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([07.2011 - ] (1107- )1GRFE) |
| 90466-T0040 | Clip(For Fuel Hose No.2) | Vacuum Piping ([07.2011 - ] (1107- )1GRFE) |
| 90910-12262 | Valve, Duty Vacuum Switching | Vacuum Piping ([07.2011 - ] (1107- )1GRFE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([07.2011 - ] (1107- )1GRFE) |
| 91551-80620 | Bolt | Vacuum Piping ([07.2011 - ] (1107- )1GRFE) |
| 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Vacuum Piping ([07.2011 - ] (1107- )1GRFE) |
