Search › Model › GGN60

GGN60

Toyota FORTUNER · 2006 · 4,409 parts · 240 categories

4,409 items

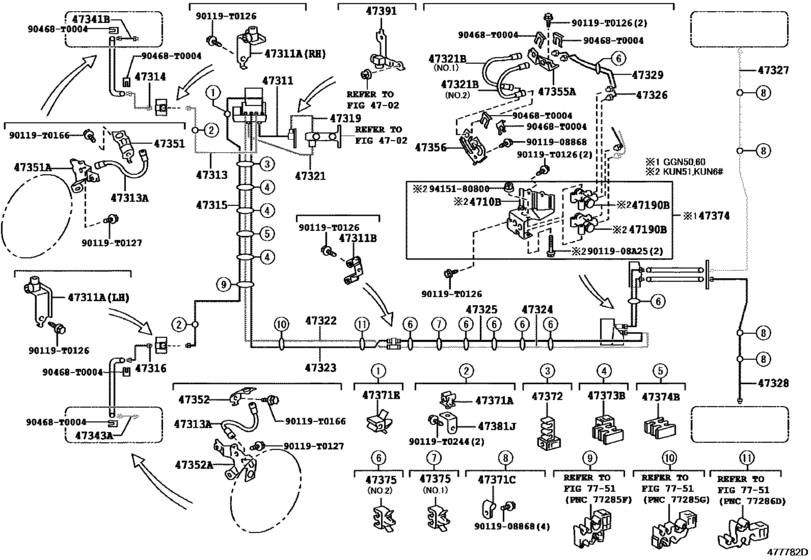

Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH) 70

#	OEM	Part name
44510	44050-71060	Actuator Assy, Brake
44510	44050-71170	Actuator Assy, Brake
44510	44050-71200	Actuator Assy, Brake
44510	44050-71240	Actuator Assy, Brake
44546	44546-60060	Cushion, Brake Actuator Bolt
44546	44547-0K010	Cushion, Brake Actuator Bolt
44590	44590-0K040	Bracket Assy, Brake Actuator
44590	44591-0K020	Bracket Assy, Brake Actuator
47311	47311-0K020	Tube, Front Brake, No.1
47311	47311-0K150	Tube, Front Brake, No.1
47311	90412-10251	Way(For Front Brake Tube)
47311	90412-10252	Way(For Front Brake Tube)
47311	90412-10253	Way, No.1(For Front Brake Tube)
47313	47313-0K010	Tube, Front Brake, No.3
47313	47313-0K130	Tube, Front Brake, No.3
47313	90080-94029	Hose, Flexible, No.1(For Front)
47314	47314-0K030	Tube, Front Brake, No.4
47315	47315-0K010	Tube, Front Brake, No.5
47315	47315-0K150	Tube, Front Brake, No.5
47316	47316-0K030	Tube, Front Brake, No.6
47319	47319-0K020	Tube, Front Brake, No.9
47321	47321-0K020	Tube, Rear Brake, No.1
47321	47321-0K110	Tube, Rear Brake, No.1
47321	90947-T2012	Hose, Flexible(For Rear Brake Tube)
47321	90947-T2059	Hose, Flexible(For Rear Brake Tube)
47321	90947-T2060	Hose, Flexible(For Rear Brake Tube)
47322	47322-0K010	Tube, Rear Brake, No.2
47323	47323-0K010	Tube, Rear Brake, No.3
47323	47323-0K130	Tube, Rear Brake, No.3
47324	47324-0K050	Tube, Rear Brake, No.4
47325	47325-0K140	Tube, Rear Brake, No.5
47325	47325-0K180	Tube, Rear Brake, No.5
47326	47326-0K020	Tube, Rear Brake, No.6
47327	47327-0K060	Tube, Rear Brake, No.7
47327	47327-0K110	Tube, Rear Brake, No.7
47328	47328-0K060	Tube, Rear Brake, No.8
47328	47328-0K110	Tube, Rear Brake, No.8
47329	47329-0K030	Tube, Rear Brake, No.9
47329	47329-0K100	Tube, Rear Brake, No.9
47341	47341-0K010	Tube, Wheel Cylinder, Front Rh No.1
47343	47343-0K010	Tube, Wheel Cylinder, Front Lh No.1
47351	47351-0K010	Bracket, Flexible Hose(For Front Rh)
47351	47353-0K020	Bracket, Flexible Hose, Front Rh No.1
47352	47352-0K030	Bracket, Flexible Hose(For Front Lh)
47352	47354-0K020	Bracket, Flexible Hose, Front Lh No.1
47355	47355-0K020	Bracket, Flexible Hose, No.5
47355	47355-0K030	Bracket, Flexible Hose, No.5
47356	47356-0K020	Bracket, Flexible Hose, No.6
47371	90949-T1011	Clamp, Brake Tube, No.1
47371	90461-T0001	Clamp, Brake Tube, No.7
47371	90949-T1007	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.6
47372	90949-T1014	Clamp, Brake Tube, No.2
47373	90949-T1008	Clamp, Brake Tube, No.3
47374	47307-71010	Connector, Tube
47374	90949-T1009	Clamp, Brake Tube, No.4
47375	90469-T0007	Clamp, Brake Tube, No.5
47375	90949-T1006	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5
47381	90949-T2001	Bracket, Brake Tube Clamp, No.2
47391	47391-71020	Way, Brake Tube
90119	90119-T0126	BOLT WWASHER
90119	90119-T0127	New Genuine Part
90119	90119-T0166	BOLT WWASHER
90119	90119-T0244	BOLT WWASHER
90119	90119-T0199	New Genuine Part
90182	90182-T0018	New Genuine Part
90468	90468-T0004	CLIP
445210	44521-0D010	Collar, Brake Actuator Case, No.1
9011908	90119-08A25	BOLT WWASHER
9011908868	90119-08868	BOLT WWASHER
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
44050-71060	Actuator Assy, Brake	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
44050-71170	Actuator Assy, Brake	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
44050-71200	Actuator Assy, Brake	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
44050-71240	Actuator Assy, Brake	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
44521-0D010	Collar, Brake Actuator Case, No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
44546-60060	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
44547-0K010	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
44590-0K040	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
44591-0K020	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47307-71010	Connector, Tube	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47311-0K020	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47311-0K150	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47313-0K010	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47313-0K130	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47314-0K030	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47315-0K010	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47315-0K150	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47316-0K030	Tube, Front Brake, No.6	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47319-0K020	Tube, Front Brake, No.9	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47321-0K020	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47321-0K110	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47322-0K010	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47323-0K010	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47323-0K130	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47324-0K050	Tube, Rear Brake, No.4	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47325-0K140	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47325-0K180	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47326-0K020	Tube, Rear Brake, No.6	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47327-0K060	Tube, Rear Brake, No.7	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47327-0K110	Tube, Rear Brake, No.7	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47328-0K060	Tube, Rear Brake, No.8	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47328-0K110	Tube, Rear Brake, No.8	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47329-0K030	Tube, Rear Brake, No.9	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47329-0K100	Tube, Rear Brake, No.9	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47341-0K010	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47343-0K010	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47351-0K010	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47352-0K030	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47353-0K020	Bracket, Flexible Hose, Front Rh No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47354-0K020	Bracket, Flexible Hose, Front Lh No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47355-0K020	Bracket, Flexible Hose, No.5	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47355-0K030	Bracket, Flexible Hose, No.5	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47356-0K020	Bracket, Flexible Hose, No.6	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
47391-71020	Way, Brake Tube	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90080-94029	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90119-08A25	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90119-T0126	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90119-T0127	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90119-T0166	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90119-T0199	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90119-T0244	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90182-T0018	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90412-10251	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90412-10252	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90412-10253	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90461-T0001	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90468-T0004	CLIP	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90469-T0007	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90947-T2012	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90947-T2059	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90947-T2060	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90949-T1006	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90949-T1007	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.6	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90949-T1008	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90949-T1009	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90949-T1011	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90949-T1014	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
90949-T2001	Bracket, Brake Tube Clamp, No.2	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
94151-80800	Nut (For Transmission Control Cable)	Brake Tube & Clamp ([07.2011 - ] W(VSC) (1107- )KUN61..SA,TH ; (1107- )GGN50,60,KU N60..SA ; (1107- )KUN51..RHD..5F ..IND,SA ; (1107- )KUN51..RHD..4FC,5FC..IND,SA,TH)
