Search › Model › GGN155
GGN155

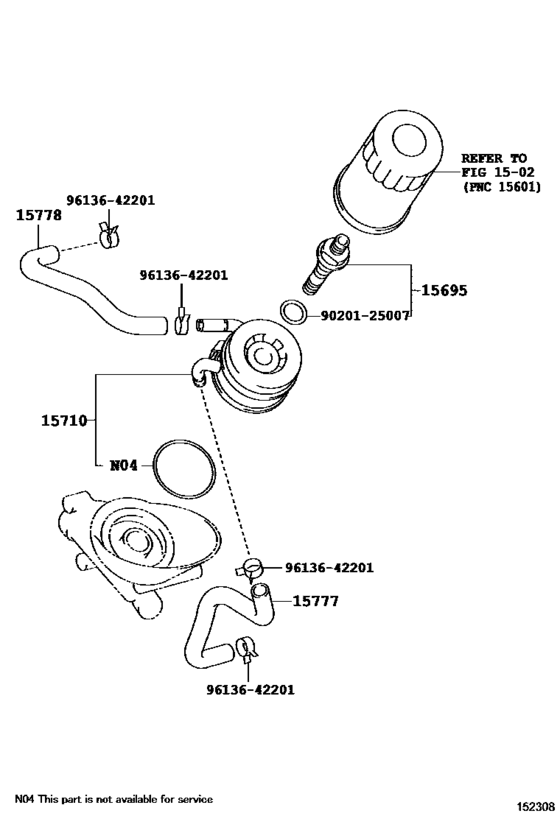

Engine Oil Cooler ([12.2015 - ] (1512- )1GRFE) 8
| # | OEM | Part name |
|---|---|---|
| 15695 | 15695-22010 | Valve Assy, Oil Cooler Relief - OIL COOLER UNION |
| 15710 | 15710-31010 | Cooler Assy, Oil |
| 15777 | 15777-0P020 | Hose, Oil Cooler |
| 15777 | 15777-31010 | Hose, Oil Cooler |
| 15778 | 15778-0P020 | Hose, Oil Cooler, No.2 |
| 15778 | 15778-31010 | Hose, Oil Cooler, No.2 |
| 9020125007 | 90201-25007 | WASHER PLATE |
| 9613642201 | 96136-42201 | Clip(For Ventilation Hose No.2) |
| OEM | Part name | Category |
|---|---|---|
| 15695-22010 | Valve Assy, Oil Cooler Relief - OIL COOLER UNION | Engine Oil Cooler ([12.2015 - ] (1512- )1GRFE) |
| 15710-31010 | Cooler Assy, Oil | Engine Oil Cooler ([12.2015 - ] (1512- )1GRFE) |
| 15777-0P020 | Hose, Oil Cooler | Engine Oil Cooler ([12.2015 - ] (1512- )1GRFE) |
| 15777-31010 | Hose, Oil Cooler | Engine Oil Cooler ([12.2015 - ] (1512- )1GRFE) |
| 15778-0P020 | Hose, Oil Cooler, No.2 | Engine Oil Cooler ([12.2015 - ] (1512- )1GRFE) |
| 15778-31010 | Hose, Oil Cooler, No.2 | Engine Oil Cooler ([12.2015 - ] (1512- )1GRFE) |
| 90201-25007 | WASHER PLATE | Engine Oil Cooler ([12.2015 - ] (1512- )1GRFE) |
| 96136-42201 | Clip(For Ventilation Hose No.2) | Engine Oil Cooler ([12.2015 - ] (1512- )1GRFE) |
