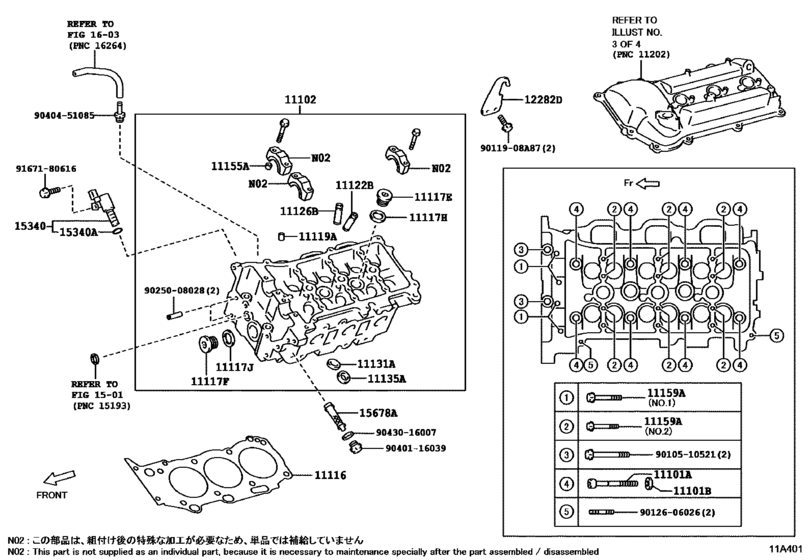

| 11102-39235 |
Head, Cylinder, Lh |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11102-39236 |
Head, Cylinder, Lh |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11116-31011 |
Gasket, Cylinder Head, No.2 |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11122-20020 |
Bush, Intake Valve Guide |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11122-22040 |
Bush, Intake Valve Guide |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11123-20020 |
Bush, Intake Valve Guide |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11126-20020 |
Bush, Exhaust Valve Guide |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11127-20020 |
Bush, Exhaust Valve Guide |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11131-31010 |
Seat, Intake Valve |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11132-31010 |
Seat, Intake Valve |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11135-31030 |
Seat, Exhaust Valve |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 11136-31030 |
Seat, Exhaust Valve |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 12282-31040 |
Hanger, Engine, No.2 |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 15340-31010 |
Valve Assy, Cam Timing Oil Control, Lh |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 15678-31010 |
Filter, Oil Control Valve |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90099-14137 |
Ring, O(For Cam Timing Oil Control Valve) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90105-08353 |
Bolt(For Head To Camshaft Bearing Cap) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90105-10521 |
Bolt(For Cylinder Head Set Sub) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90119-06902 |
Bolt(For Head To Camshaft Bearing Cap) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90119-08A87 |
BOLT W-WASHER |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90126-06026 |
Bolt, Stud(Manifold To Throttle Body) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90201-11034 |
Washer, Plate(For Cylinder Head Set) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90250-05021 |
Pin, Straight |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90250-08028 |
Pin, Straight |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90253-11021 |
Pin, Ring |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90341-24011 |
Plug, W/head Taper Screw, No.1 |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90341-27006 |
Plug, W/head Straight Screw, No.1 |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90401-16039 |
BOLT UNION |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90404-51085 |
UNION |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90430-16007 |
Gasket (For Rear Differential Oil Cooler Tube) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90430-24013 |
Gasket(For Water Hole) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90430-27005 |
Gasket(For Cylinder Head Screw Plug) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 90910-02162 |
Bolt(For Cylinder Head Set) |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
| 91671-80616 |
BOLT FLANGE |
Cylinder Head ([12.2015 - ] CYLINDER HEAD(LH BANK) (1512- )1GRFE) |
