Search › Model › GGL16

GGL16

Lexus RX · 2008 · 5,810 parts · 206 categories

5,810 items

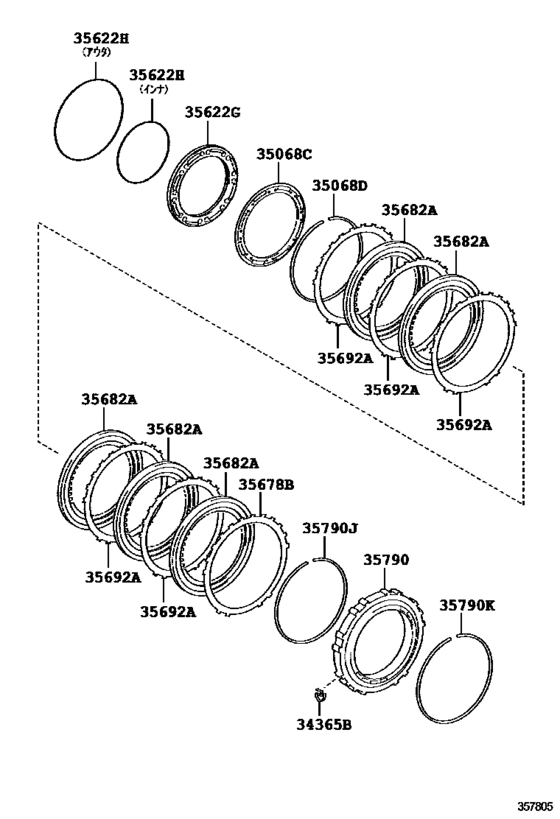

Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#) 26

#	OEM	Part name
34365	34365-33021	Retainer, Outer Race
35068	35068-33030	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-99109	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35622	35622-33010	Piston, Brake, No.2
35622	90301-99156	Ring, O (For Brake Piston Inner)
35622	90301-99157	Ring, O (For Brake Piston No.2)
35622	90301-99190	Ring, O (For Brake Piston Inner)
35622	90301-99191	Ring, O (For Brake Piston No.2)
35678	35678-33060	Flange, Brake, No.2
35678	35678-33070	Flange, Brake, No.2
35678	35678-33080	Flange, Brake, No.2
35678	35678-33090	Flange, Brake, No.2
35678	35678-33100	Flange, Brake, No.2
35678	35678-73010	Flange, Brake, No.2
35678	35678-73020	Flange, Brake, No.2
35678	35678-73030	Flange, Brake, No.2
35678	35678-73040	Flange, Brake, No.2
35678	35678-73050	Flange, Brake, No.2
35682	35682-33010	Disc, Brake, No.2
35682	35682-33020	Disc, Brake, No.2
35692	35692-33010	Plate, Brake, No.2
35692	35692-33030	Plate, Brake, No.2
35790	35791-73011	Clutch Assy, 1 Way
35790	35791-48010	Clutch Assy, 1 Way
35790	90520-99105	Ring, Snap No.1 (For 1 Way Clutch)
35790	90520-99106	Ring, Snap No.2 (For 1 Way Clutch)

OEM	Part name	Category
34365-33021	Retainer, Outer Race	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35068-33030	Spring Sub-Assy, 1St & Reverse Brake Return	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35622-33010	Piston, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-33060	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-33070	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-33080	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-33090	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-33100	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-73010	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-73020	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-73030	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-73040	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35678-73050	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35682-33010	Disc, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35682-33020	Disc, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35692-33010	Plate, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35692-33030	Plate, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35791-48010	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
35791-73011	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
90301-99156	Ring, O (For Brake Piston Inner)	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
90301-99157	Ring, O (For Brake Piston No.2)	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
90301-99190	Ring, O (For Brake Piston Inner)	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
90301-99191	Ring, O (For Brake Piston No.2)	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
90520-99105	Ring, Snap No.1 (For 1 Way Clutch)	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
90520-99106	Ring, Snap No.2 (For 1 Way Clutch)	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
90520-99109	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Center Support & Planetary Sun Gear (Atm) ([12.2008 - ] U660E,U660F,U760E (0812- )AGL10,GGL1#)
