Search › Model › GGH30
GGH30

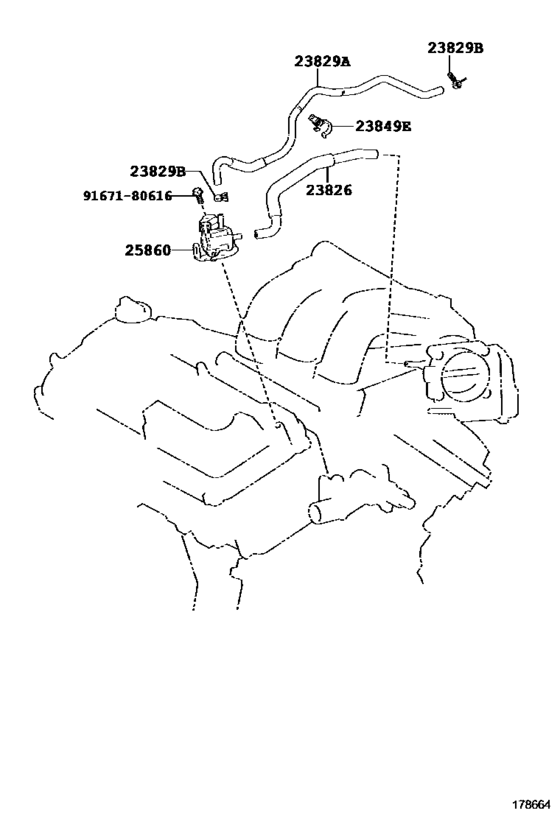

Vacuum Piping ([01.2015 - ] (1501- )2GRFE) 6
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-31080 | Hose, Fuel Vapor Feed, No.1 |
| 23829 | 23826-31300 | Hose, Fuel Vapor Feed |
| 23829 | 96132-51100 | Clip (For Hose) |
| 23849 | 23849-31010 | Support, Fuel Hose Clamp |
| 25860 | 25860-31070 | Valve Assy, Vacuum Switching, No.1 |
| 9167180616 | 91671-80616 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 23826-31080 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([01.2015 - ] (1501- )2GRFE) |
| 23826-31300 | Hose, Fuel Vapor Feed | Vacuum Piping ([01.2015 - ] (1501- )2GRFE) |
| 23849-31010 | Support, Fuel Hose Clamp | Vacuum Piping ([01.2015 - ] (1501- )2GRFE) |
| 25860-31070 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([01.2015 - ] (1501- )2GRFE) |
| 91671-80616 | BOLT FLANGE | Vacuum Piping ([01.2015 - ] (1501- )2GRFE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([01.2015 - ] (1501- )2GRFE) |
