GGH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,039 parts · 207 categories

4,039 items

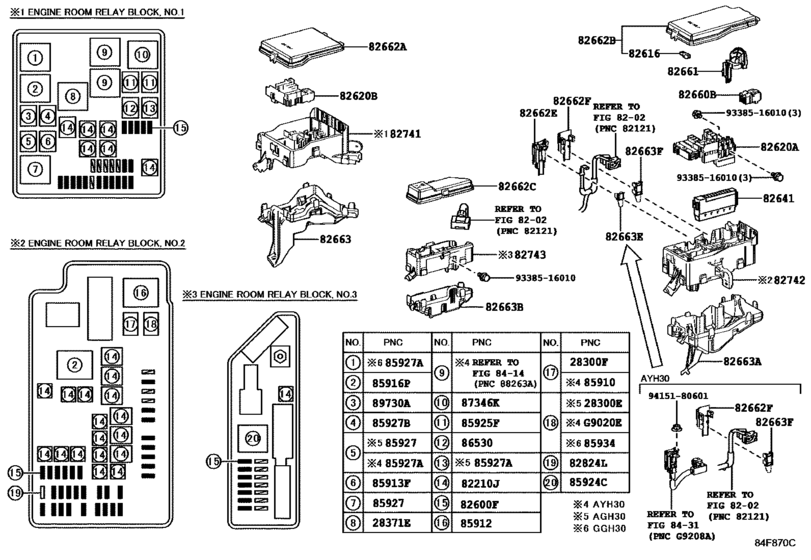

Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- )) 39

#	OEM	Part name
28300	28300-21020	Relay Assy, Starter
28371	90987-02025	Relay
82210	90982-08274	Fusible Link
82210	90982-08286	Fusible Link
82210	90982-08294	Fusible Link
82210	90982-08295	Fusible Link
82210	90982-08296	Fusible Link
82210	90982-08304	Fusible Link
82210	90982-08305	Fusible Link
82210	90982-08306	Fusible Link
82600	90982-09019	Instrument Panel Fuse
82600	90982-09020	Fusible Link
82600	90982-09021	Fusible Link
82600	90982-09022	Instrument Panel Fuse
82600	90982-09023	Instrument Panel Fuse
82600	90982-09025	Instrument Panel Fuse
82616	82616-58010	Puller, Fuse
82620	82620-58050	Block Assy, Fusible Link
82620	82620-58060	Block Assy, Fusible Link
82641	82641-58020	Relay, Integration No.1
82641	82641-58021	Relay, Integration No.1
82660	82660-58060	Block Assy, Relay
82661	82661-58010	Cover, Relay Block, No.1
82662	82662-58240	Cover, Relay Block, Upper, No.1
82662	82662-58200	Cover, Relay Block, Upper, No.2
82662	82661-58030	Cover, Relay Block, Upper, No.7
82662	82661-58050	Cover, Relay Block, Upper, No.8
82663	82663-58030	Cover, Relay Block, Lower
82663	82663-58020	Cover, Relay Block, Lower, No.2
82663	82661-58020	Cover, Relay Block, Lower, No.7
82663	82661-58040	Cover, Relay Block, Lower, No.8
82741	82741-58030	Block, Engine Room Relay
82742	82741-58020	Block, Engine Room Relay, No.2
82824	82824-41010	Pin, Short
85912	90987-04010	Relay Assy (For Heater Blower Motor)
85913	90987-02027	Relay
85934	90987-02028	Relay, Water Pump
9338516010	93385-16010	New Genuine Part
9415180601	94151-80601	New Genuine Part

OEM	Part name	Category
28300-21020	Relay Assy, Starter	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82616-58010	Puller, Fuse	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82620-58050	Block Assy, Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82620-58060	Block Assy, Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82641-58020	Relay, Integration No.1	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82641-58021	Relay, Integration No.1	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82660-58060	Block Assy, Relay	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82661-58010	Cover, Relay Block, No.1	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82661-58020	Cover, Relay Block, Lower, No.7	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82661-58030	Cover, Relay Block, Upper, No.7	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82661-58040	Cover, Relay Block, Lower, No.8	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82661-58050	Cover, Relay Block, Upper, No.8	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82662-58200	Cover, Relay Block, Upper, No.2	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82662-58240	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82663-58020	Cover, Relay Block, Lower, No.2	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82663-58030	Cover, Relay Block, Lower	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82741-58020	Block, Engine Room Relay, No.2	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82741-58030	Block, Engine Room Relay	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
82824-41010	Pin, Short	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-08274	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-08286	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-08294	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-08295	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-08296	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-08304	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-08305	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-08306	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-09019	Instrument Panel Fuse	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-09020	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-09021	Fusible Link	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-09022	Instrument Panel Fuse	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-09023	Instrument Panel Fuse	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90982-09025	Instrument Panel Fuse	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90987-02025	Relay	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90987-02027	Relay	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90987-02028	Relay, Water Pump	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
90987-04010	Relay Assy (For Heater Blower Motor)	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
93385-16010	New Genuine Part	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))
94151-80601	New Genuine Part	Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM(2/2) (1501- ))

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 207
Collected: 2026-08-02
