GGH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,039 parts · 207 categories
GGH30 ×

← Back to categories

4,039 items

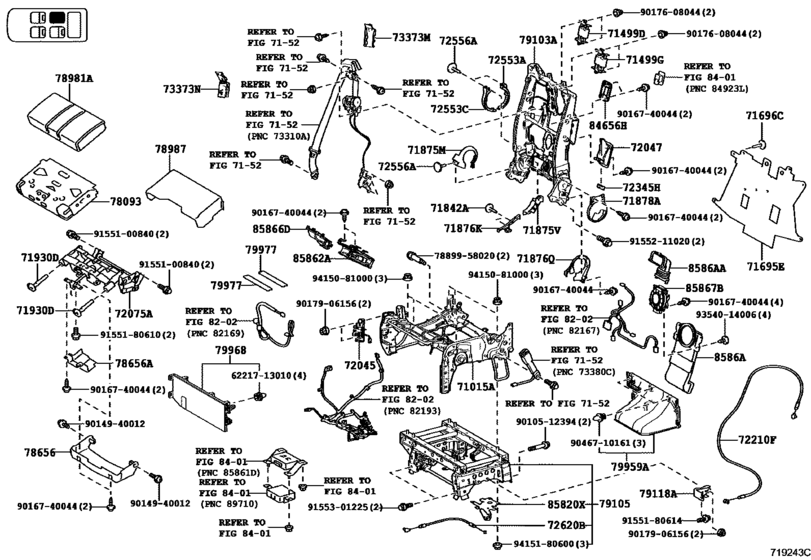

Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH):POWER SEAT(VIP) (1501- )V) 125
#OEMPart name
66990 66990-58060-A0 Holder Assy, Cup, No.1 Rh
66990 66990-58060-C0 Holder Assy, Cup, No.1 Rh
71015 71015-58080 Frame Sub-Assy, Rear Seat Cushion, Rh
71324 71324-58100 Cushion, Rear Seat
71499 71499-58040 Damper, Rear Seat Back Spring
71499 71499-58050 Damper, Rear Seat Back Spring
71695 71695-58090 Protector, Rear Seat, No.2
71696 90467-07042-A3 Clip, Rear Seat Protector
71696 90467-07042-C0 Clip
71696 90467-06175 Clip(For Luggage Compartment Door)
71812 71812-58160-A0 Cover, Reclining Adjuster, Lh
71812 71812-58160-C0 Cover, Reclining Adjuster, Lh
71825 71825-58080-A0 Moulding, Rear Seat Cushion, Rh
71825 71825-58080-C0 Moulding, Rear Seat Cushion, Rh
71833 71833-58100-A1 Cover, Rear Seat Reclining, No.1 Rh
71833 71833-58100-C1 Cover, Rear Seat Reclining, No.1 Rh
71842 90467-05161-A8 Clip(For Rear Seat)
71842 90467-05161-C0 Clip
71843 71843-58080-A0 Cover, Rear Seat Reclining, No.2 Rh
71843 71843-58080-C0 Cover, Rear Seat Reclining, No.2 Rh
71848 71848-58190-A0 Cap, Seat Adjuster Cover, Rh
71848 71848-58190-C0 Cap, Seat Adjuster Cover, Rh
71849 71849-58150-A0 Cap, Seat Adjuster Cover, Lh
71849 71849-58150-C0 Cap, Seat Adjuster Cover, Lh
71874 71874-58050-A0 Shield, Rear Seat Cushion, Lower Lh
71874 71874-58050-C0 Shield, Rear Seat Cushion, Lower Lh
71875 71875-58360-A0 Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71875 71875-58360-C0 Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71875 71875-58550-A0 Cover, Reclining Adjuster Inside, Rh
71875 71875-58550-C0 Cover, Reclining Adjuster Inside, Rh
71875 71875-58330-A2 Cover, Reclining Adjuster Inside, Rh
71875 71875-58330-C2 Cover, Reclining Adjuster Inside, Rh
71875 71875-58340-A0 Cover, Reclining Adjuster Inside, Rh
71875 71875-58340-C0 Cover, Reclining Adjuster Inside, Rh
71876 71876-58500-A0 Cover, Reclining Adjuster Inside, Lh
71876 71876-58500-C0 Cover, Reclining Adjuster Inside, Lh
71876 71876-58480-A0 Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)
71876 71876-58480-C0 Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)
71876 71876-58330-A2 Cover, Reclining Adjuster Inside, Lh
71876 71876-58330-C2 Cover, Reclining Adjuster Inside, Lh
71878 71878-58090-A0 Cover, Rear Seat Reclining, Inner Rh
71878 71878-58090-C0 Cover, Rear Seat Reclining, Inner Rh
71930 71931-47010-C0 Support Assy, Rear Seat Legrest
72045 72045-58020 Cover Sub-Assy, Rr Seat Track, Outer Rh
72047 72046-58020-A0 Cover Sub-Assy, Front Seat Track, Outer Lh
72047 72046-58020-C0 Cover Sub-Assy, Front Seat Track, Outer Lh
72075 72075-58030 Arm Sub-Assy, Rear Reclining Adjuster, Lower Inner Rh
72083 72083-58030-A0 Pad Sub-Assy, Rear Seat Armrest, Rh
72083 72083-58030-C0 Pad Sub-Assy, Rear Seat Armrest, Rh
72210 72210-58290 Cable Assy, Seat Track Control
72345 72345-58030-A1 Cap, Seat Stand Frame
72345 72345-58030-C0 Cap, Seat Stand Frame
72455 72455-58010 Bracket, Seat Fram Set, No.1
72465 72465-58010 Bracket, Seat Frame Set, No.3
72525 72525-58130-A0 Handle, Reclining Adjuster Release, No.1 Rh
72525 72525-58130-C0 Handle, Reclining Adjuster Release, No.1 Rh
72553 72553-58060-A0 Protector, Reclining Cover, Rh
72553 72553-58060-C0 Protector, Reclining Cover, Rh
72553 72553-58070-A0 Protector, Reclining Cover, Rh
72553 72553-58070-C0 Protector, Reclining Cover, Rh
72620 72620-58030 Cable Assy, Rear No.1 Seat Lock
72803 72803-58090 Frame Sub-Assy, Rear Seat Armrest, Rh
72804 72804-58070 Frame Sub-Assy, Rear Seat Armrest, Lh
72830 72830-58270-A0 Armrest Assy, Rear Seat, Rh
72830 72830-58270-C0 Armrest Assy, Rear Seat, Rh
72840 72890-58A60-A0 Armrest Assy, Rear Seat, Lh
72840 72890-58A60-C0 Armrest Assy, Rear Seat, Lh
72903 72903-58010 Table Sub-Assy, Rear Seat Turn, Rh
72960 72960-58030 Table Assy, Rear Seat Turn, Rh
73373 73373-58060 Cover, Rear Seat Shoulder Belt, Rh
73373 73373-58080 Cover, Rear Seat Shoulder Belt, Rh
78093 78093-58010 Frame Sub-Assy, Rear Seat Footrest
78656 78656-58080-C0 Cover, Rear Seat Legrest
78656 78656-58090-C0 Cover, Rear Seat Legrest
78981 78981-58010 Panel, Rear Seat Footrest
78987 78987-58040-A0 Cover, Rear Seat Footrest, No.1
78987 78987-58040-C0 Cover, Rear Seat Footrest, No.1
79103 79103-58100 Frame Sub-Assy, No.1 Seat Back, Rh
79105 79105-58100 Leg Sub-Assy, No.1 Seat, Rh
79118 79118-58010 Bracket, Rear No.1 Seat Leg
79118 79118-58020 Bracket, Rear No.1 Seat Leg
79236 79236-58060-C0 Cover, Rear Seat Leg, Rh (For Rh Seat)
79926 55539-58120-A0 Cover, Seat Leg Garnish
79926 55539-58120-C0 Cover, Spare Switch Hole
79959 79959-58260-C0 Cover, Rear Seat Leg, Rh
79968 79968-58040-C0 Cover, Rear Seat Leg Side, No.5
79977 79977-58020 Felt, Seat Back
84656 84656-58030 Bezel, Power Seat Switch
85820 85801-58050 Motor Assy, Power Seat
85820 85801-58060 Motor Assy, Power Seat
85862 85860-58010 Blower, Rear Seat Climate Control, Rh
85866 85866-58010 Duct, Seat Cushion Climate Control, Rh
85867 85867-33020 Blower, Seat Back Climate Control, Rh
5895960060 58959-60060 Cushion, Instrument Panel
6221713010 62217-13010 Clip(For Rear Floor Mat Plate)
7247558010 72475-58010 Sleeve, Seat Adjusting Spring Rear Hook
7247558020 72475-58020 Sleeve, Seat Adjusting Spring Rear Hook
7247558030 72475-58030 Sleeve, Seat Adjusting Spring Rear Hook
7889958020 78899-58020 Bolt, Front Seat
9010512394 90105-12394 BOLT FLANGE
9014940012 90149-40012 SCREW
9015960613 90159-60613 New Genuine Part
9016740044 90167-40044 BOLT
9017608044 90176-08044 NUT
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017906323 90179-06323 Nut
9017908191 90179-08191 New Genuine Part
9020111007 90201-11007 Washer, Plate(For Governor Pressure Adapter)
9046704034 90467-04034 Clip
9046705171 90467-05171 Clip, Instrument Panel
9046705172 90467-05172 Clip, Instrument Panel, No.1
9046710161 90467-10161 Clip
9155100840 91551-00840 Bolt (For Transaxle Housing & Transaxle Case Setting)
9155180610 91551-80610 BOLT FLANGE
9155180614 91551-80614 Bolt(For Vacuum Transmitting Pipe)
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9155211020 91552-11020 New Genuine Part
9155301225 91553-01225 New Genuine Part
9354014006 93540-14006 New Genuine Part
9354054010 93540-54010 Screw, Roof Headlining Trim
9356053010 93560-53010 New Genuine Part
9356855016 93568-55016 Screw
9415081000 94150-81000 NUT FLANGE
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9415180840 94151-80840 NUT, FLANGE
