GGH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,039 parts · 207 categories
GGH30 ×

← Back to categories

4,039 items

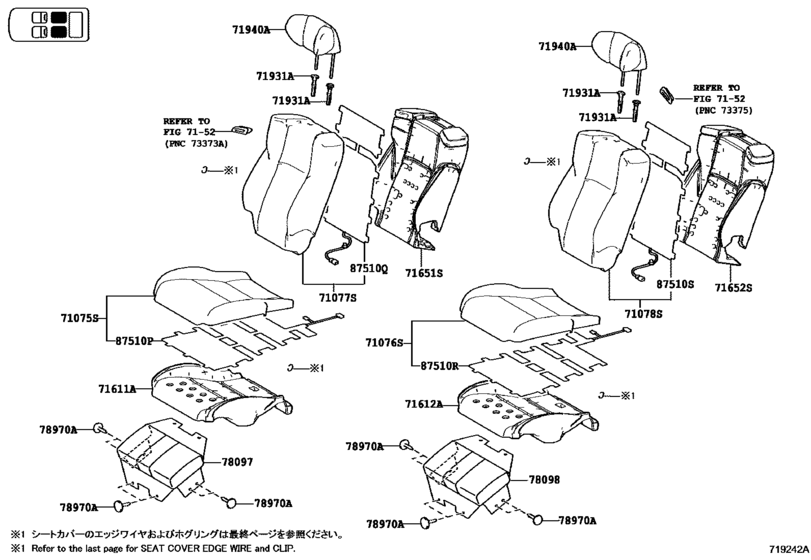

Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT:POWER SEAT(VIP) (1501- )V) 22
#OEMPart name
71075 71075-58280-A1 Cover Sub-Assy, Rear Seat Cushion, Rh
71075 71075-58280-C2 Cover Sub-Assy, Rear Seat Cushion, Rh
71076 71076-58280-A1 Cover, Rear Seat Cushion, Lh (For Separate Type)
71076 71076-58280-C2 Cover, Rear Seat Cushion, Lh (For Separate Type)
71077 71077-58260-A2 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-58260-C3 Cover, Rear Seat Back, Rh (For Separate Type)
71078 71078-58260-A2 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-58260-C3 Cover, Rear Seat Back, Lh(For Separate Type)
71611 71611-58070 Pad, Rear Seat Cushion, Rh
71612 71612-58070 Pad, Rear Seat Cushion, Lh
71651 71651-58060 Pad, Rear Seat Back, Rh(For Separate Type)
71652 71652-58060 Pad, Rear Seat Back, Lh(For Separate Type)
71931 71930-44020-A7 Support, Front Seat Headrest
71931 71930-44020-C0 Support, Front Seat Headrest
71940 71940-58500-A0 Headrest Assy, Rear Seat
71940 71940-58500-C0 Headrest Assy, Rear Seat
78097 78097-58010-A0 Cover Sub-Assy, Rear Seat Footrest, Rh
78097 78097-58010-C1 Cover Sub-Assy, Rear Seat Footrest, Rh
78970 90467-05162-A6 Clip
78970 90467-05162-C0 Clip, Heater To Register Duct
87510 87510-58100 Heater Assy, Seat
87510 87530-58060 Heater Assy, Seat
