Search › Model › GGH30

GGH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,039 parts · 207 categories

4,039 items

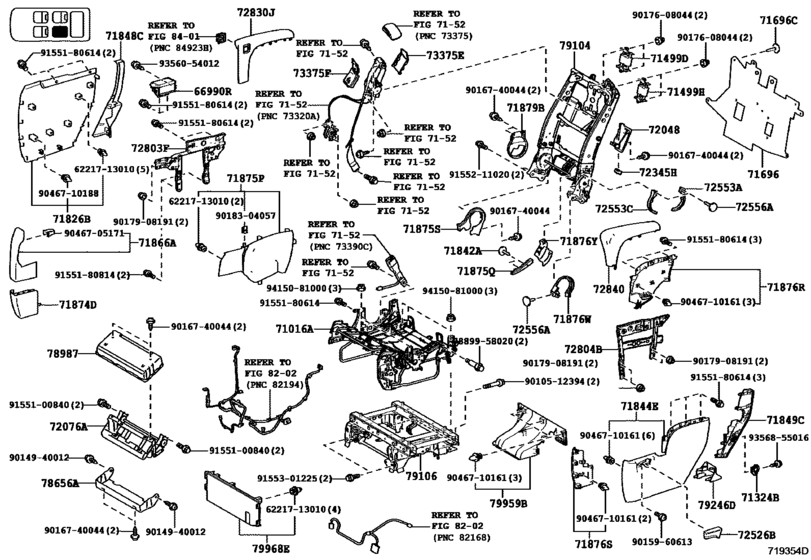

Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q) 61

#	OEM	Part name
66990	66990-58070-A1	Holder Assy, Cup, No.1
71016	71016-58050	Frame Sub-Assy, Rear Seat Cushion, Lh
71324	71324-58110	Cushion, Rear Seat
71499	71499-58040	Damper, Rear Seat Back Spring
71499	71499-58050	Damper, Rear Seat Back Spring
71696	71696-58010	Protector, Rear Seat, No.2
71696	90467-07042-A3	Clip, Rear Seat Protector
71826	71826-58070-A0	Moulding, Rear Seat Cushion, Lh
71842	90467-05161-A8	Clip(For Rear Seat)
71844	71844-58100-A0	Cover, Rear Seat Reclining, Rh (For Lh Seat)
71848	71848-58210-A0	Cap, Seat Adjuster Cover, Rh
71849	71849-58170-A0	Cap, Seat Adjuster Cover, Lh(For Lh Seat)
71866	71866-58040-A0	Bezel, Rear Seat Cover, No.2
71874	71874-58040-A0	Shield, Rear Seat Cushion, Lower Lh
71875	71875-58400-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71875	71875-58450-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71875	71875-58430-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71876	71876-58390-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)
71876	71876-58400-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)
71876	71876-58450-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)
71876	71876-58540-A0	Cover, Reclining Adjuster Inside, Lh
71879	71879-58090-A0	Cover, Rear Seat Reclining, Inner Lh
72048	72046-58020-A0	Cover Sub-Assy, Front Seat Track, Outer Lh
72076	72075-58010	Arm Sub-Assy, Rear Reclining Adjuster, Lwr Inner Lh
72345	72345-58030-A1	Cap, Seat Stand Frame
72526	72526-58120-A0	Handle, Reclining Adjuster Release, No.1 Lh
72553	72553-58060-A0	Protector, Reclining Cover, Rh
72553	72553-58070-A0	Protector, Reclining Cover, Rh
72803	72803-58050	Frame Sub-Assy, Rear Seat Armrest, Rh (For Lh Seat)
72804	72804-58090	Frame Sub-Assy, Rear Seat Armrest, Lh (For Lh Seat)
72830	72890-58A50-A1	Armrest Assy, Rear No.1 Seat, Rh
72840	72840-58070-A1	Armrest Assy, Rear No.1 Seat, Lh
73375	73373-58070	Cover, Rear Seat Shoulder Belt, Lh
73375	73373-58090	Cover, Rear Seat Shoulder Belt, Lh
78656	78656-58020-C0	Cover, Rear Seat Legrest
78987	78987-58010	Cover, Rear Seat Footrest, No.1
79104	79104-58060	Frame Sub-Assy, No.1 Seat Back, Lh
79106	79106-58110	Leg Sub Assy, No.1 Seat, Lh
79246	79246-58030-C0	Cover, Rear Seat Leg, Rh (For Lh Seat)
79959	79959-58180-C0	Cover, Rear Seat Leg, Lh
79968	79968-58060-C0	Cover, Rear Seat Leg Side, No.5, Lh
6221713010	62217-13010	Clip(For Rear Floor Mat Plate)
7889958020	78899-58020	Bolt, Front Seat
9010512394	90105-12394	BOLT FLANGE
9014940012	90149-40012	SCREW
9015960613	90159-60613	New Genuine Part
9016740044	90167-40044	BOLT
9017608044	90176-08044	NUT
9017908191	90179-08191	New Genuine Part
9018304057	90183-04057	New Genuine Part
9046705171	90467-05171	Clip, Instrument Panel
9046710161	90467-10161	Clip
9046710188	90467-10188	Clip(For Deck Boad)
9155100840	91551-00840	Bolt (For Transaxle Housing & Transaxle Case Setting)
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9155211020	91552-11020	New Genuine Part
9155301225	91553-01225	New Genuine Part
9356054012	93560-54012	Screw
9356855016	93568-55016	Screw
9415081000	94150-81000	NUT FLANGE

OEM	Part name	Category
62217-13010	Clip(For Rear Floor Mat Plate)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
66990-58070-A1	Holder Assy, Cup, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71016-58050	Frame Sub-Assy, Rear Seat Cushion, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71324-58110	Cushion, Rear Seat	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71499-58040	Damper, Rear Seat Back Spring	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71499-58050	Damper, Rear Seat Back Spring	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71696-58010	Protector, Rear Seat, No.2	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71826-58070-A0	Moulding, Rear Seat Cushion, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71844-58100-A0	Cover, Rear Seat Reclining, Rh (For Lh Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71848-58210-A0	Cap, Seat Adjuster Cover, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71849-58170-A0	Cap, Seat Adjuster Cover, Lh(For Lh Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71866-58040-A0	Bezel, Rear Seat Cover, No.2	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71874-58040-A0	Shield, Rear Seat Cushion, Lower Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71875-58400-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71875-58430-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71875-58450-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71876-58390-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71876-58400-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71876-58450-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71876-58540-A0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
71879-58090-A0	Cover, Rear Seat Reclining, Inner Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72046-58020-A0	Cover Sub-Assy, Front Seat Track, Outer Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72075-58010	Arm Sub-Assy, Rear Reclining Adjuster, Lwr Inner Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72345-58030-A1	Cap, Seat Stand Frame	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72526-58120-A0	Handle, Reclining Adjuster Release, No.1 Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72553-58060-A0	Protector, Reclining Cover, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72553-58070-A0	Protector, Reclining Cover, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72803-58050	Frame Sub-Assy, Rear Seat Armrest, Rh (For Lh Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72804-58090	Frame Sub-Assy, Rear Seat Armrest, Lh (For Lh Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72840-58070-A1	Armrest Assy, Rear No.1 Seat, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
72890-58A50-A1	Armrest Assy, Rear No.1 Seat, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
73373-58070	Cover, Rear Seat Shoulder Belt, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
73373-58090	Cover, Rear Seat Shoulder Belt, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
78656-58020-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
78899-58020	Bolt, Front Seat	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
78987-58010	Cover, Rear Seat Footrest, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
79104-58060	Frame Sub-Assy, No.1 Seat Back, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
79106-58110	Leg Sub Assy, No.1 Seat, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
79246-58030-C0	Cover, Rear Seat Leg, Rh (For Lh Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
79959-58180-C0	Cover, Rear Seat Leg, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
79968-58060-C0	Cover, Rear Seat Leg Side, No.5, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90105-12394	BOLT FLANGE	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90149-40012	SCREW	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90159-60613	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90167-40044	BOLT	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90176-08044	NUT	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90179-08191	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90183-04057	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90467-05161-A8	Clip(For Rear Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90467-05171	Clip, Instrument Panel	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90467-07042-A3	Clip, Rear Seat Protector	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90467-10161	Clip	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
90467-10188	Clip(For Deck Boad)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
91551-00840	Bolt (For Transaxle Housing & Transaxle Case Setting)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
91552-11020	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
91553-01225	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
93560-54012	Screw	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
93568-55016	Screw	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)
94150-81000	NUT FLANGE	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH):POWER SEAT (1501- )GGH30..L ; (1501- )AGH30,AYH30..L, Q)

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 207
Collected: 2026-08-02
