GGH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,039 parts · 207 categories

4,039 items

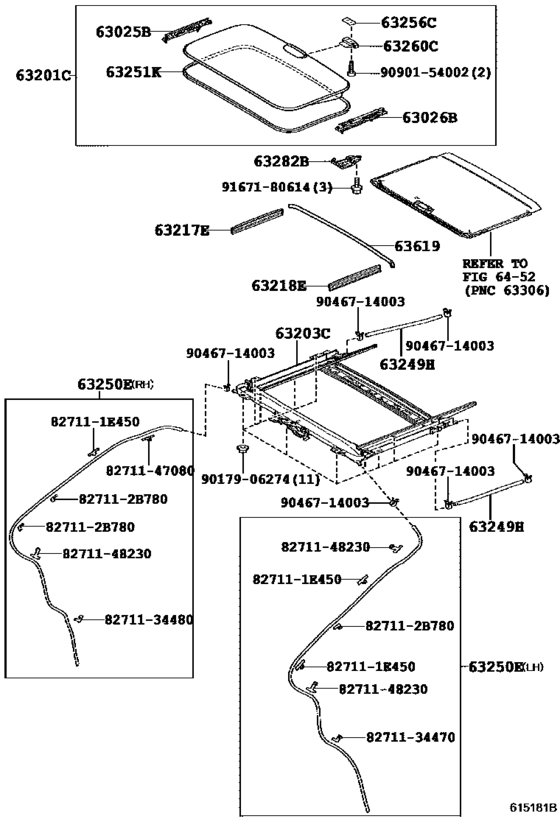

Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- )) 56

#	OEM	Part name
0	82711-1E450	Clamp, Sliding Roof Drain Hose
63025	63025-58020	Link Sub-Assy, Tilt Roof, Rh
63026	63026-58020	Link Sub-Assy, Tilt Roof, Lh
63118	63118-58050	Support, Roof Panel, Rh
63201	63201-58040	Glass Sub-Assy, Tilt Roof
63203	63203-58060	Housing Sub-Assy, Tilt Roof
63214	63214-33070	Channel, Roof Drip, Rear
63217	63217-58020	Garnish, Sliding Roof, Front Rh
63217	63217-58030	Garnish, Sliding Roof Side, Rh
63223	63223-58020	Cable, Sliding Roof Drive, Rh
63224	63224-58020	Cable, Sliding Roof Drive, Lh
63241	63241-58040	Bracket, Sliding Roof Housing, No.1
63241	63241-58050	Bracket, Sliding Roof Housing, No.1
63242	63242-58010	Bracket, Sliding Roof Housing, No.1
63243	63243-58010	Bracket, Removable Roof Housing Side Mounting, Rh
63244	63244-58010	Bracket, Removable Roof Housing Side Mounting, Lh
63246	63246-58010	Bracket, Removable Roof, No.2
63247	63247-58040	Hose, Sliding Roof Drain, Rear Rh
63247	63247-58050	Hose, Sliding Roof Drain, Rear Rh
63248	63248-58030	Hose, Sliding Roof Drain, Rear Lh
63248	63248-58040	Hose, Sliding Roof Drain, Rear Lh
63249	63245-58030	Hose, Sliding Roof Drain
63250	63250-58050	Hose Assy, Tilt Roof Drain
63250	63250-58060	Hose Assy, Tilt Roof Drain
63251	63251-58040	Weatherstrip, Tilt Roof
63251	63251-58050	Weatherstrip, Sliding Roof
63256	63256-44010	Seal, Tilt Roof Glass
63260	63260-26030	Handle Assy, Removable Roof Lock
63260	63260-58030	Gear Assy, Sliding Roof Drive
63263	63263-60030	Plate, Sliding Roof Lock Catch, Rh - SLIDING ROOF LOCK CATCH, LH
63282	63282-58010	Striker, Tilt Roof Lock
63287	63287-58010	Cap, Sliding Roof Housing Drain End, Rh
63288	63288-58010	Cap, Sliding Roof Housing Drain End, Lh
63619	63619-58030	Cover, Tilt Roof Panel
63625	63625-58010	Block, Sliding Roof Guide, Rh
63626	63626-58010	Block, Sliding Roof Guide, Lh
63669	63669-30040	Grommet, Sliding Roof Drain
63801	63801-58040	Glass Sub-Assy, Rear Slide Roof
63804	63804-58050-A0	Housing Sub-Assy, Rear Slide Roof
63804	63804-58050-C0	Housing Sub-Assy, Rear Slide Roof
63804	63804-58040-A0	Housing Sub-Assy, Rear Slide Roof
827112	82711-2B780	Clamp No.1 (For Windseield Washer)
827112	82711-2C280	Clamp No.1 (For Windseield Washer)
827113	82711-3A540	Clamp, Sliding Roof Drain Hose
6323632010	63236-32010	Clamp, Sliding Roof Or Removable Roof Drain Hose
8271134470	82711-34470	Wire, Fuse To Fuse(for Combustion Heater)
8271134480	82711-34480	Clamp, Wiring Harness
8271147080	82711-47080	Wire, Fuse To Fuse(for Combustion Heater)
8271148230	82711-48230	Wire, Fuse To Fuse(for Combustion Heater)
8271160640	82711-60640	Clamp No.1 (For Windseield Washer)
9015950336	90159-50336	SCREW WWASHER
9017906274	90179-06274	Nut
9046714003	90467-14003	Clip Or Clamp(For Ventilation Hose)
9090154002	90901-54002	New Genuine Part
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167380612	91673-80612	BOLT FLANGE

OEM	Part name	Category
63025-58020	Link Sub-Assy, Tilt Roof, Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63026-58020	Link Sub-Assy, Tilt Roof, Lh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63118-58050	Support, Roof Panel, Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63201-58040	Glass Sub-Assy, Tilt Roof	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63203-58060	Housing Sub-Assy, Tilt Roof	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63214-33070	Channel, Roof Drip, Rear	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63217-58020	Garnish, Sliding Roof, Front Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63217-58030	Garnish, Sliding Roof Side, Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63223-58020	Cable, Sliding Roof Drive, Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63224-58020	Cable, Sliding Roof Drive, Lh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63236-32010	Clamp, Sliding Roof Or Removable Roof Drain Hose	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63241-58040	Bracket, Sliding Roof Housing, No.1	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63241-58050	Bracket, Sliding Roof Housing, No.1	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63242-58010	Bracket, Sliding Roof Housing, No.1	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63243-58010	Bracket, Removable Roof Housing Side Mounting, Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63244-58010	Bracket, Removable Roof Housing Side Mounting, Lh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63245-58030	Hose, Sliding Roof Drain	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63246-58010	Bracket, Removable Roof, No.2	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63247-58040	Hose, Sliding Roof Drain, Rear Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63247-58050	Hose, Sliding Roof Drain, Rear Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63248-58030	Hose, Sliding Roof Drain, Rear Lh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63248-58040	Hose, Sliding Roof Drain, Rear Lh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63250-58050	Hose Assy, Tilt Roof Drain	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63250-58060	Hose Assy, Tilt Roof Drain	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63251-58040	Weatherstrip, Tilt Roof	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63251-58050	Weatherstrip, Sliding Roof	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63256-44010	Seal, Tilt Roof Glass	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63260-26030	Handle Assy, Removable Roof Lock	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63260-58030	Gear Assy, Sliding Roof Drive	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63263-60030	Plate, Sliding Roof Lock Catch, Rh - SLIDING ROOF LOCK CATCH, LH	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63282-58010	Striker, Tilt Roof Lock	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63287-58010	Cap, Sliding Roof Housing Drain End, Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63288-58010	Cap, Sliding Roof Housing Drain End, Lh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63619-58030	Cover, Tilt Roof Panel	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63625-58010	Block, Sliding Roof Guide, Rh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63626-58010	Block, Sliding Roof Guide, Lh	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63669-30040	Grommet, Sliding Roof Drain	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63801-58040	Glass Sub-Assy, Rear Slide Roof	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63804-58040-A0	Housing Sub-Assy, Rear Slide Roof	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63804-58050-A0	Housing Sub-Assy, Rear Slide Roof	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
63804-58050-C0	Housing Sub-Assy, Rear Slide Roof	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
82711-1E450	Clamp, Sliding Roof Drain Hose	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
82711-2B780	Clamp No.1 (For Windseield Washer)	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
82711-2C280	Clamp No.1 (For Windseield Washer)	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
82711-34470	Wire, Fuse To Fuse(for Combustion Heater)	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
82711-34480	Clamp, Wiring Harness	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
82711-3A540	Clamp, Sliding Roof Drain Hose	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
82711-47080	Wire, Fuse To Fuse(for Combustion Heater)	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
82711-48230	Wire, Fuse To Fuse(for Combustion Heater)	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
82711-60640	Clamp No.1 (For Windseield Washer)	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
90159-50336	SCREW WWASHER	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
90179-06274	Nut	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
90467-14003	Clip Or Clamp(For Ventilation Hose)	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
90901-54002	New Genuine Part	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
91671-80614	Bolt (For Transmission Control Cable Bracket)	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
91673-80612	BOLT FLANGE	Roof Panel & Back Panel ([01.2015 - ] SLIDING ROOF (1501- ))
