GGH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,039 parts · 207 categories

4,039 items

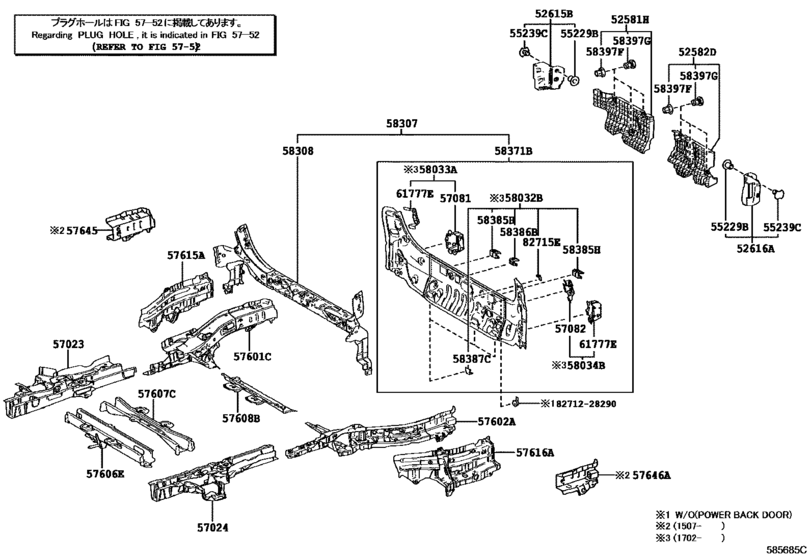

Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- )) 25

#	OEM	Part name
57023	57023-58050	Member Sub-Assy, Rear Side, Rh
57024	57024-58050	Member Sub-Assy, Rear Side, Lh
57081	57081-58030	Bracket Sub-Assy, Rear Bumper Mounting
57082	57082-58030	Bracket Sub-Assy, Rear Bumper Arm Support, Lh
57601	57601-58080	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-58110	Member Sub-Assy, Rear Floor Side, Lh
57606	57606-58110	Member Sub-Assy, Rear Floor Cross, No.2
57607	57607-58100	Member Sub-Assy, Rear Floor Cross, No.3
57608	57608-58130	Member Sub-Assy, Rear Floor Cross, No.4
57615	57061-58010	Member, Rear Floor Side, Rear Rh
57616	57062-58010	Member, Rear Floor Side, Rear Lh
57645	57645-58010	Reinforcement, Rear Side Member, Rh
57646	57646-58030	Reinforcement, Rear Side Member, Lh
58032	58032-58010	Panel Sub-Assy, Rear Floor, Center
58033	58033-58010	Reinforce Sub-Assy, Body Lower Back, Rh
58034	58034-58010	Reinforce Sub-Assy, Body Lower Back, Lh
58307	58307-58070	Panel Sub-Assy, Body Lower Back
58308	58308-58010	Panel Sub-Assy, Body Lower Back, Inner
58371	58302-58020	Panel, Body Lower Back, Outer
58385	58386-12020	Bracket, Rear Bumper Cover, No.1
58386	58386-28050	Bracket, Rear Bumper Cover, No.2
58387	58348-58020	Plate, Rear Floor Finish
61777	61777-58030	Retainer, Lower Back Panel
82715	82715-28J10	Bracket, Wiring Harness Clamp
8271228290	82712-28290	Support, Wiring Harness

OEM	Part name	Category
57023-58050	Member Sub-Assy, Rear Side, Rh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57024-58050	Member Sub-Assy, Rear Side, Lh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57061-58010	Member, Rear Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57062-58010	Member, Rear Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57081-58030	Bracket Sub-Assy, Rear Bumper Mounting	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57082-58030	Bracket Sub-Assy, Rear Bumper Arm Support, Lh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57601-58080	Member Sub-Assy, Rear Floor Side, Rh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57602-58110	Member Sub-Assy, Rear Floor Side, Lh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57606-58110	Member Sub-Assy, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57607-58100	Member Sub-Assy, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57608-58130	Member Sub-Assy, Rear Floor Cross, No.4	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57645-58010	Reinforcement, Rear Side Member, Rh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57646-58030	Reinforcement, Rear Side Member, Lh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58032-58010	Panel Sub-Assy, Rear Floor, Center	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58033-58010	Reinforce Sub-Assy, Body Lower Back, Rh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58034-58010	Reinforce Sub-Assy, Body Lower Back, Lh	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58302-58020	Panel, Body Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58307-58070	Panel Sub-Assy, Body Lower Back	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58308-58010	Panel Sub-Assy, Body Lower Back, Inner	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58348-58020	Plate, Rear Floor Finish	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58386-12020	Bracket, Rear Bumper Cover, No.1	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58386-28050	Bracket, Rear Bumper Cover, No.2	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
61777-58030	Retainer, Lower Back Panel	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
82712-28290	Support, Wiring Harness	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
82715-28J10	Bracket, Wiring Harness Clamp	Rear Floor Panel & Rear Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
