Search › Model › GGH30

GGH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,039 parts · 207 categories
GGH30 ×

← Back to categories

4,039 items

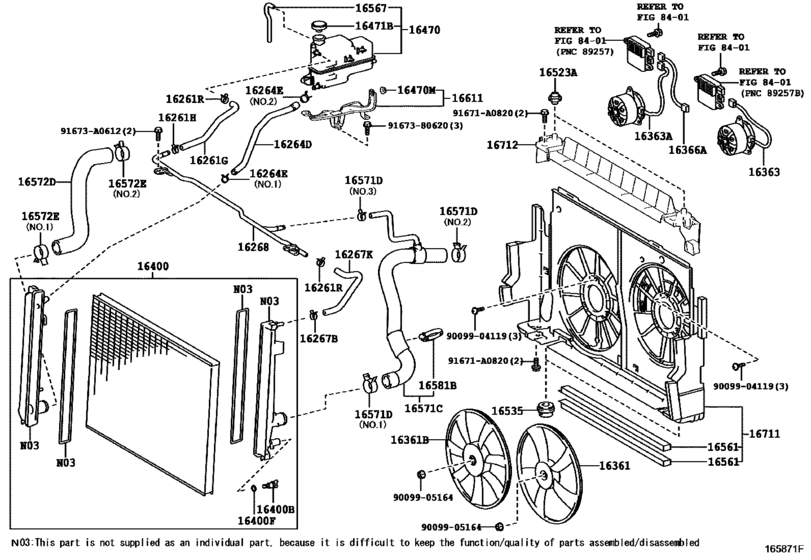

Radiator & Water Outlet ([01.2015 - ] (1501- )2GRFE) 59
#OEMPart name
16261 16261-36120 Hose, Water By-Pass
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16261 16261-31050 Hose, Water By-Pass
16261 96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 16264-31140 Hose, Water By-Pass, No.2
16264 90467-18008 Clip(For Water By-Pass Hose No.2)
16264 96136-41901 Clip Or Clamp(For Ventilation Hose)
16264 16264-31081 Hose, Water By-Pass, No.2
16264 96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16267 16267-36130 Hose, Water By-Pass, No.3
16267 16267-31040 Hose, Water By-Pass, No.3
16268 16268-36200 Pipe, Water By-Pass, No.1
16321 16321-31030 Inlet, Water
16322 16322-31020 Pipe, Water Inlet
16323 16323-31040 Housing, Water Inlet
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16326 16325-31010 Gasket, Water Inlet Housing, No.1
16331 16331-31140 Outlet, Water
16331 90916-03140 Thermostat
16341 16341-31010 Gasket, Water Outlet
16361 16361-31230 Fan
16361 16361-31240 Fan, No.2
16363 16363-31180 Motor, Cooling Fan
16363 16363-31130 Motor, Cooling Fan
16366 16366-31250 Insulator, Cooling Fan Motor
16400 16400-31591 Radiator Assy
16400 16417-30170 Cock Sub-Assy, Radiator Drain
16400 16418-15520 Packing(For Radiator Drain Cock)
16470 16470-28152 Tank Assy, Radiator Reserve
16470 90480-16044 Grommet
16471 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-37011 Cap Sub-Assy, Radiator Reserve Tank
16523 16523-21060 Cushion, Radiator Support
16535 16535-20030 Support, Radiator, Lower
16535 16535-36020 Support, Radiator, Lower
16561 16561-31020 Seal, Radiator To Support, No.1
16567 16472-28150 Hose(For Radiator Reserve Tank)
16571 16571-31250 Hose, Radiator, No.1
16571 90466-41005 Clamp Or Clip, Hose(For Radiator Inlet)
16571 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16571 96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-31220 Hose, Radiator, Outlet
16581 16581-26040 Clamp, Hose(For Water Hose)
16611 16611-36020 Bracket, Radiator Reserve Tank
16711 16711-31430 Shroud, Fan
16712 16712-31120 Shroud, Fan, No.2
91671 91671-A0820 New Genuine Part
91673 91673-A0612 Bolt
9009904119 90099-04119 BOLT WASHER HEAD
9009905164 90099-05164 Nut
9091009127 90910-09127 COCK ASSY DRAIN
9155180620 91551-80620 Bolt
9155180660 91551-80660 BOLT FLANGE
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
9167380620 91673-80620 Bolt
9212280616 92122-80616 Bolt, Stud(For Head To Cylinder Head Cover)
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9676124019 96761-24019 Ring, O(For Water By-Pass Pipe)
9676124021 96761-24021 Ring, O(For Water By-Pass Joint Front)
Source
Public OEM parts-catalog data
Variants
2 / 11
Category
207
Collected
2026-08-02
