Search › Model › GGH30

GGH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,039 parts · 207 categories
GGH30 ×

← Back to categories

4,039 items

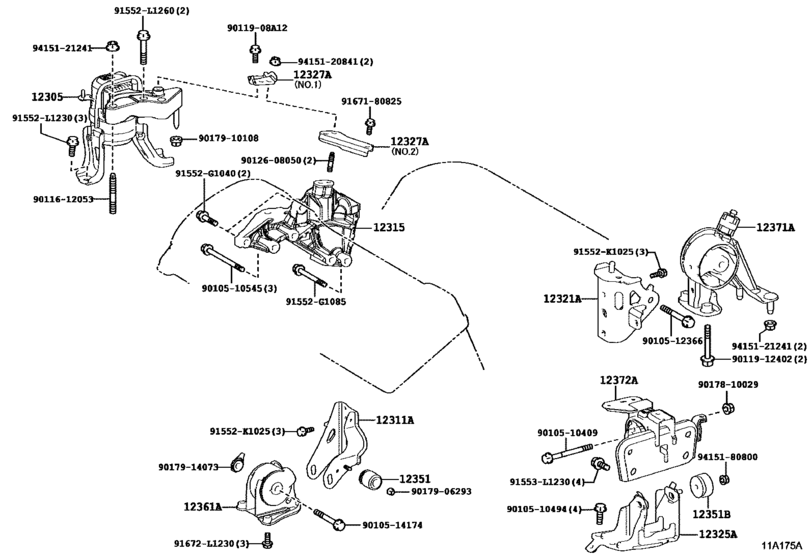

Mounting ([01.2015 - ] (1501- )2GRFE) 37
#OEMPart name
12305 12305-31060 Insulator Sub-Assy, Engine Mounting, Rh
12311 12311-31180 Bracket, Engine Mounting, Front(For Transverse Engine)
12315 12315-31130 Bracket, Engine Mounting, Front No.1 Lh
12321 12321-31170 Bracket, Engine Mounting, Rear(For Transverse Engine)
12325 12325-31020 Bracket, Engine Mounting, Lh(For Transverse Engine)
12327 12327-31010 Stay, Engine Mounting, No.2 Rh
12327 12327-31120 Stay, Engine Mounting, No.2 Rh
12327 12327-31050 Stay, Engine Mounting, No.2 Rh
12351 12351-74120 Damper, Engine Mounting
12351 12351-23040 Damper, Engine Mounting
12361 12361-31460 Insulator, Engine Mounting, Front(For Transverse Engine)
12371 12371-31340 Insulator, Engine Mounting, Rear
12372 12372-31080 Insulator, Engine Mounting, Lh(For Transverse Engine)
91552 91552-G1040 BOLT FLANGE
91552 91552-G1085 New Genuine Part
91552 91552-K1025 BOLT FLANGE
91552 91552-L1230 BOLT FLANGE
91552 91552-L1260 BOLT FLANGE
91553 91553-L1230 New Genuine Part
91672 91672-L1230 BOLT FLANGE
9011908 90119-08A12 New Genuine Part
9010510409 90105-10409 New Genuine Part
9010510494 90105-10494 BOLT FLANGE
9010510545 90105-10545 BOLT FLANGE
9010512366 90105-12366 BOLT FLANGE
9010514174 90105-14174 New Genuine Part
9011612053 90116-12053 BOLT STUD
9011912402 90119-12402 New Genuine Part
9012608050 90126-08050 New Genuine Part
9017810029 90178-10029 Nut(For Front Suspension Support)
9017906293 90179-06293 NUT
9017910108 90179-10108 NUT
9017914073 90179-14073 New Genuine Part
9167180825 91671-80825 Bolt, Compressor, No.1
9415120841 94151-20841 Nut
9415121241 94151-21241 Nut(For Front Stabilizer Link)
9415180800 94151-80800 Nut (For Transmission Control Cable)
Source
Public OEM parts-catalog data
Variants
2 / 11
Category
207
Collected
2026-08-02
