GGH30

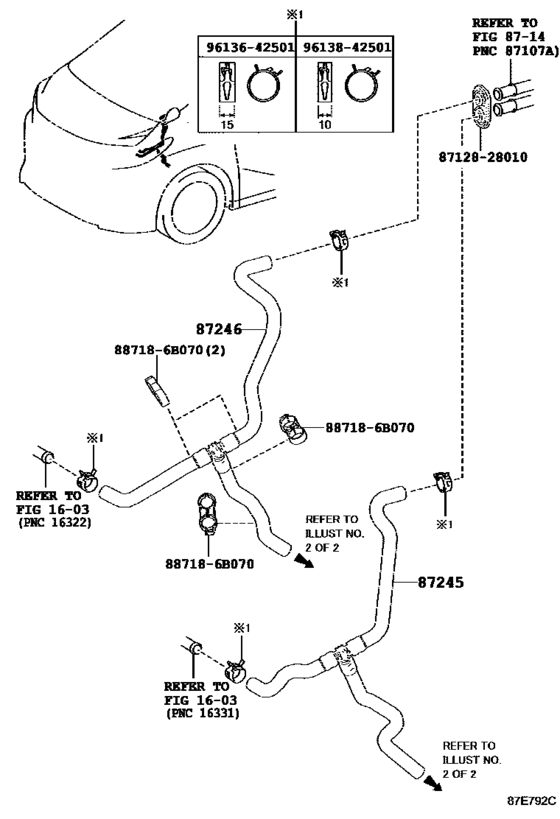

Heating & Air Conditioning - Water Piping ([01.2015 - ] FRONT (1501- )GGH30..RHD) 6
| # | OEM | Part name |
|---|---|---|
| 87245 | 87209-58350 | Hose, Heater Water, Inlet |
| 87246 | 87209-58360 | Hose, Heater Water, Outlet |
| 887186 | 88718-6B070 | Pipe, Cooler Refrigerant Suction, No.2 |
| 8712828010 | 87128-28010 | Grommet, Heater |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| 9613842501 | 96138-42501 | Clip, Hose(For Radiator Hose Sub-Assy) |
| OEM | Part name | Category |
|---|---|---|
| 87128-28010 | Grommet, Heater | Heating & Air Conditioning - Water Piping ([01.2015 - ] FRONT (1501- )GGH30..RHD) |
| 87209-58350 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([01.2015 - ] FRONT (1501- )GGH30..RHD) |
| 87209-58360 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([01.2015 - ] FRONT (1501- )GGH30..RHD) |
| 88718-6B070 | Pipe, Cooler Refrigerant Suction, No.2 | Heating & Air Conditioning - Water Piping ([01.2015 - ] FRONT (1501- )GGH30..RHD) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([01.2015 - ] FRONT (1501- )GGH30..RHD) |
| 96138-42501 | Clip, Hose(For Radiator Hose Sub-Assy) | Heating & Air Conditioning - Water Piping ([01.2015 - ] FRONT (1501- )GGH30..RHD) |
