Search › Model › GGH30
GGH30

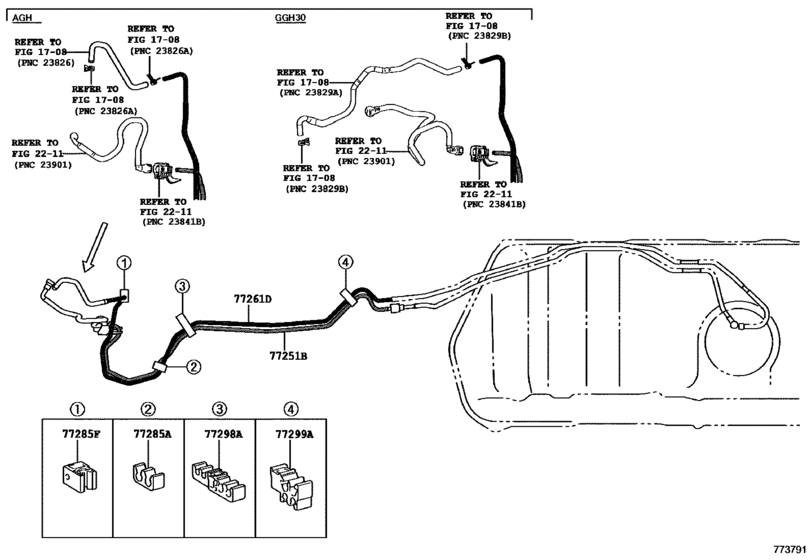

Fuel Tank & Tube ([01.2015 - ] FUEL TUBE (1501- )AGH30,GGH30) 7
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-58040 | Tube, Fuel Main |
| 77261 | 77261-58030 | Tube, Fuel Tank To Canister |
| 77261 | 77261-58031 | Tube, Fuel Tank To Canister |
| 77285 | 77285-42110 | Support, Fuel Return And Main Tube |
| 77285 | 77285-52010 | Clamp, Fuel Tube, No.1 |
| 77298 | 77298-52070 | Clamp, Fuel Tube, No.3 |
| 77299 | 77299-52040 | Clamp, Fuel Tube, No.3 |
| OEM | Part name | Category |
|---|---|---|
| 77251-58040 | Tube, Fuel Main | Fuel Tank & Tube ([01.2015 - ] FUEL TUBE (1501- )AGH30,GGH30) |
| 77261-58030 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([01.2015 - ] FUEL TUBE (1501- )AGH30,GGH30) |
| 77261-58031 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([01.2015 - ] FUEL TUBE (1501- )AGH30,GGH30) |
| 77285-42110 | Support, Fuel Return And Main Tube | Fuel Tank & Tube ([01.2015 - ] FUEL TUBE (1501- )AGH30,GGH30) |
| 77285-52010 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([01.2015 - ] FUEL TUBE (1501- )AGH30,GGH30) |
| 77298-52070 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([01.2015 - ] FUEL TUBE (1501- )AGH30,GGH30) |
| 77299-52040 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([01.2015 - ] FUEL TUBE (1501- )AGH30,GGH30) |
