Search › Model › GGH25

GGH25

Toyota ALPHARD-VELLFIRE · 2008 · 5,204 parts · 232 categories

5,204 items

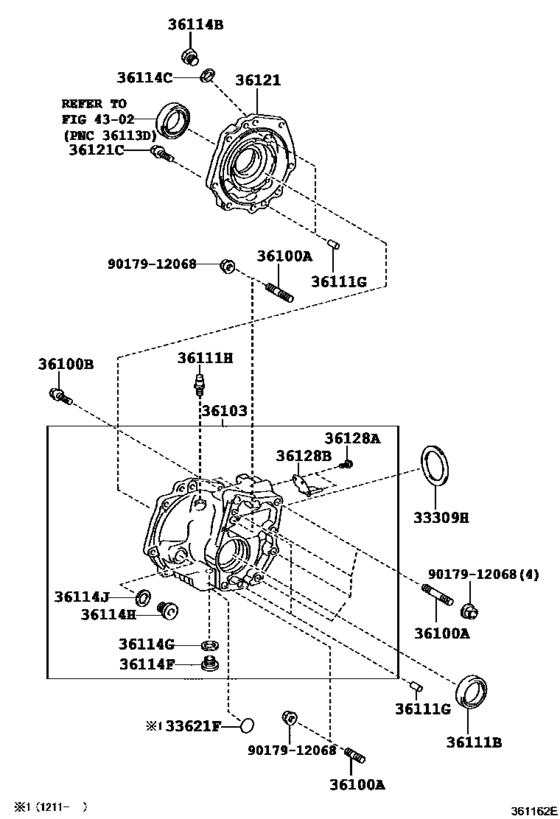

Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25) 49

#	OEM	Part name
33309	36275-52010	Washer, Transfer Output Shaft
33309	36275-52020	Washer, Transfer Output Shaft
33309	36275-52030	Washer, Transfer Output Shaft
33309	36275-52040	Washer, Transfer Output Shaft
33309	36275-52050	Washer, Transfer Output Shaft
33309	36275-52060	Washer, Transfer Output Shaft
33309	36275-52070	Washer, Transfer Output Shaft
33309	36275-52080	Washer, Transfer Output Shaft
33309	36275-52090	Washer, Transfer Output Shaft
33309	36275-52100	Washer, Transfer Output Shaft
33309	36275-52110	Washer, Transfer Output Shaft
33309	36275-52120	Washer, Transfer Output Shaft
33309	36275-52130	Washer, Transfer Output Shaft
33309	36275-52140	Washer, Transfer Output Shaft
33309	36275-52150	Washer, Transfer Output Shaft
33309	36275-52160	Washer, Transfer Output Shaft
33309	36275-52170	Washer, Transfer Output Shaft
33309	36275-52180	Washer, Transfer Output Shaft
33309	36275-52190	Washer, Transfer Output Shaft
33309	36275-52200	Washer, Transfer Output Shaft
33309	36275-52210	Washer, Transfer Output Shaft
33309	36275-52220	Washer, Transfer Output Shaft
33309	36275-52230	Washer, Transfer Output Shaft
33309	36275-52240	Washer, Transfer Output Shaft
33309	36275-52250	Washer, Transfer Output Shaft
33309	36275-52260	Washer, Transfer Output Shaft
33309	36275-52270	Washer, Transfer Output Shaft
33309	36275-52280	Washer, Transfer Output Shaft
33621	33621-42040	Label, Transaxle Oil Information
33621	33621-48020	Label, Transaxle Oil Information
36100	90116-12028	Bolt, Stud (For Transfer & Transaxle Setting)
36100	90116-12034	Bolt, Stud (For Transfer & Transaxle Setting)
36100	90116-12041	Bolt, Stud (For Transfer & Transaxle Setting)
36100	90105-12298	Bolt (For Transfer & Transaxle Setting)
36103	36103-42021	Case Sub-Assy, Transfer
36103	36103-42023	Case Sub-Assy, Transfer
36103	36103-42022	Case Sub-Assy, Transfer
36111	90311-55002	Seal, Oil (For Transfer Case)
36111	90250-10017	Pin, Straight(For Clutch Housing Set)
36111	90930-03133	Plug, Breather
36114	90341-18006	Plug (No magnet)
36114	12157-10010	Gasket (For Drain Plug)
36114	90341-18051	Plug, Drain(Hv)
36114	90341-18023	Plug, W/head Straight Screw, No.1
36121	36121-42011	Cover, Transfer Case, No.1
36121	91552-81030	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
36128	91621-60614	Bolt(For Transaxle & Engine Setting)
36128	36128-42010	Deflector, Breather Oil
9017912068	90179-12068	Nut(For Transaxle Case Cover)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
33621-42040	Label, Transaxle Oil Information	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
33621-48020	Label, Transaxle Oil Information	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36103-42021	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36103-42022	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36103-42023	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36121-42011	Cover, Transfer Case, No.1	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36128-42010	Deflector, Breather Oil	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52010	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52020	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52030	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52040	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52050	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52060	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52070	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52080	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52090	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52100	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52110	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52120	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52130	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52140	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52150	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52160	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52170	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52180	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52190	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52200	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52210	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52220	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52230	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52240	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52250	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52260	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52270	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
36275-52280	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90105-12298	Bolt (For Transfer & Transaxle Setting)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90116-12028	Bolt, Stud (For Transfer & Transaxle Setting)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90116-12034	Bolt, Stud (For Transfer & Transaxle Setting)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90116-12041	Bolt, Stud (For Transfer & Transaxle Setting)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90179-12068	Nut(For Transaxle Case Cover)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90250-10017	Pin, Straight(For Clutch Housing Set)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90311-55002	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90341-18006	Plug (No magnet)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90341-18023	Plug, W/head Straight Screw, No.1	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90341-18051	Plug, Drain(Hv)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
90930-03133	Plug, Breather	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
91552-81030	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
91621-60614	Bolt(For Transaxle & Engine Setting)	Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25)
