GGH25

Toyota ALPHARD-VELLFIRE · 2008 · 5,204 parts · 232 categories

5,204 items

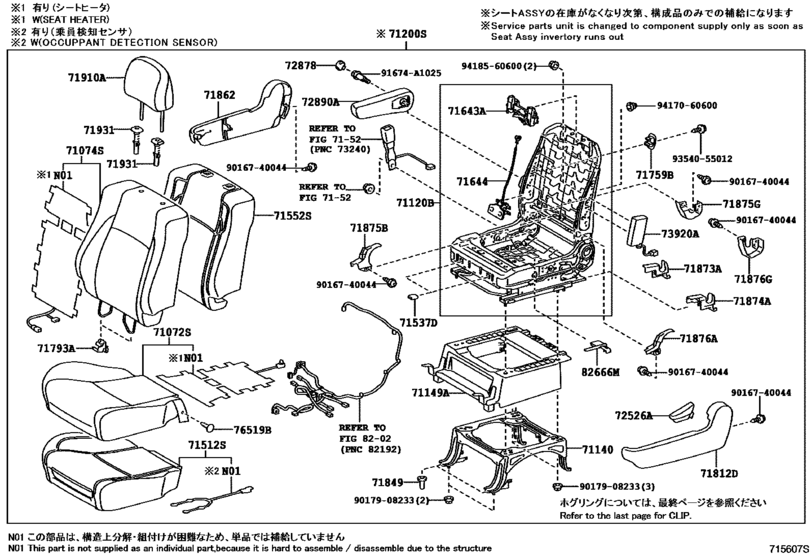

Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX) 51

#	OEM	Part name
71072	71072-58100-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-58240-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-58241-B1	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-58241-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	71074-58190-B2	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-58191-B2	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-58192-B2	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-58440-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-58440-B1	Cover, Front Seat Back, Lh(For Separate Type)
71120	71120-58100	Frame Assy, Front Seat W/adjuster, Lh
71120	71120-58101	Frame Assy, Front Seat W/adjuster, Lh
71120	73214-75010	Plate, Front Seat Belt Anchor
71140	71140-58020	Leg Assy, Front Seat, Lh
71149	71149-58030-C0	Cover, Front Seat Leg, Lh
71200	71200-58380-B2	Seat Assy, Front Lh
71200	71200-58381-B0	Seat Assy, Front Lh
71512	71502-58020	Pad, Front Seat Cushion, Lh (For Separate Type)
71537	71537-26010	Protector, Front Seat Cushion
71552	71552-58060	Pad, Front Seat Back, Lh(For Separate Type)
71643	71643-12011	Unit, Active Headrest, Upr
71644	71644-12030	Unit, Active Headrest, Lwr
71759	71759-28050-C0	Hook, Front Seat Back
71793	71793-58010	Clip, Front Seat Back Cover, Rear
71812	71812-28340-C0	Shield, Front Seat Cushion, Lh
71849	71848-33010	Cap, Rear Seat
71862	71862-58040-C0	Shield, Front Seat Cushion, Inner Lh
71873	71873-28010	Shield, Front Seat Cushion, Lower Rh
71874	71874-28010	Shield, Front Seat Cushion, Lower Lh
71875	71875-58040-C0	Cover, Reclining Adjuster Inside, Rh
71875	71875-58060	Cover, Reclining Adjuster Inside, Rh
71876	71876-58040-C0	Cover, Reclining Adjuster Inside, Lh
71876	71876-58060	Cover, Reclining Adjuster Inside, Rh
71910	71910-58120-B0	Headrest Assy, Front Seat
71910	71910-58180-B0	Headrest Assy, Front Seat
71931	71930-44020-C0	Support, Front Seat Headrest
71931	71931-47010-C0	Support Assy, Rear Seat Legrest
72526	72526-58040-C0	Handle, Reclining Adjuster Release, Lh
72878	72848-28030-C0	Cover, Rear Seat Armrest Hole Rh
72890	72880-58490-B0	Armrest Assy, Front Seat, Inner Lh
72890	72880-58491-B0	Armrest Assy, Front Seat, Inner Lh
72890	72880-58700-B0	Armrest Assy, Front Seat, Inner Lh
73920	73920-58020	Air Bag Assy, Front Seat, Lh
73920	73920-58030	Air Bag Assy, Front Seat, Lh
76519	76519-42010	Clip, Rear Seat Cushion Cover
82666	82666-21060	Holder, Connector
91674	91674-A1025	BOLT FLANGE
9016740044	90167-40044	BOLT
9017908233	90179-08233	NUT
9354055012	93540-55012	SCREW, TAPPING
9417060600	94170-60600	NUT CAP
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71072-58100-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71072-58240-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71072-58241-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71072-58241-B1	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71074-58190-B2	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71074-58191-B2	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71074-58192-B2	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71074-58440-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71074-58440-B1	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71120-58100	Frame Assy, Front Seat W/adjuster, Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71120-58101	Frame Assy, Front Seat W/adjuster, Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71140-58020	Leg Assy, Front Seat, Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71149-58030-C0	Cover, Front Seat Leg, Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71200-58380-B2	Seat Assy, Front Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71200-58381-B0	Seat Assy, Front Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71502-58020	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71537-26010	Protector, Front Seat Cushion	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71552-58060	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71643-12011	Unit, Active Headrest, Upr	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71644-12030	Unit, Active Headrest, Lwr	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71759-28050-C0	Hook, Front Seat Back	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71793-58010	Clip, Front Seat Back Cover, Rear	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71812-28340-C0	Shield, Front Seat Cushion, Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71848-33010	Cap, Rear Seat	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71862-58040-C0	Shield, Front Seat Cushion, Inner Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71873-28010	Shield, Front Seat Cushion, Lower Rh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71874-28010	Shield, Front Seat Cushion, Lower Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71875-58040-C0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71875-58060	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71876-58040-C0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71876-58060	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71910-58120-B0	Headrest Assy, Front Seat	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71910-58180-B0	Headrest Assy, Front Seat	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71930-44020-C0	Support, Front Seat Headrest	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
71931-47010-C0	Support Assy, Rear Seat Legrest	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
72526-58040-C0	Handle, Reclining Adjuster Release, Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
72848-28030-C0	Cover, Rear Seat Armrest Hole Rh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
72880-58490-B0	Armrest Assy, Front Seat, Inner Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
72880-58491-B0	Armrest Assy, Front Seat, Inner Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
72880-58700-B0	Armrest Assy, Front Seat, Inner Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
73214-75010	Plate, Front Seat Belt Anchor	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
73920-58020	Air Bag Assy, Front Seat, Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
73920-58030	Air Bag Assy, Front Seat, Lh	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
76519-42010	Clip, Rear Seat Cushion Cover	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
82666-21060	Holder, Connector	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
90167-40044	BOLT	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
90179-08233	NUT	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
91674-A1025	BOLT FLANGE	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
93540-55012	SCREW, TAPPING	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
94170-60600	NUT CAP	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
94185-60600	Nut, Wire Adjusting, No.1	Seat & Seat Track ([04.2008 - 10.2011] ｼﾞｮｼｭｾｷ (0804-1110)240S,240X,24X,24Z,350S,350X,35X,35Z ; (1112- )HBDX)
