GGH25

Toyota ALPHARD-VELLFIRE · 2008 · 5,204 parts · 232 categories
GGH25 ×

← Back to categories

5,204 items

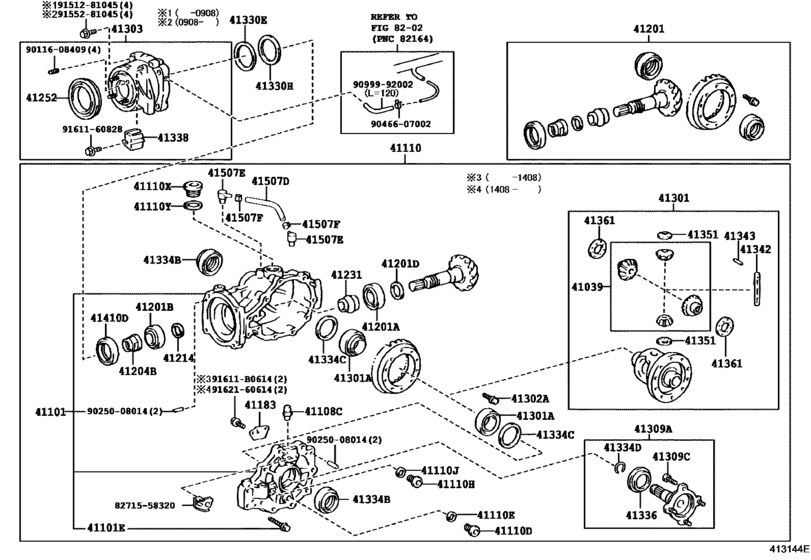

Rear Axle Housing & Differential ([04.2008 - ] (0804- )ANH25,GGH25) 219
#OEMPart name
41039 41039-44011 Gear Kit, Differential, Rear
41039 41039-48030 Gear Kit, Differential, Rear
41101 41101-44011 Carrier Sub-Assy, Differential, Rear
41101 41101-44012 Carrier Sub-Assy, Differential, Rear
41101 41101-45021 Carrier Sub-Assy, Differential, Rear
41101 90105-10371 Bolt (For Rear Differential Carrier)
41108 90930-03075 Plug, Breather
41108 90930-03170 Plug, Breather (For Rear Differential Carrier Cover)
41108 90930-03235 Plug, Breather (For Rear Differential Carrier Cover)
41110 41110-45011 Carrier Assy, Differential, Rear
41110 41110-58060 Carrier Assy, Differential, Rear
41110 41110-58061 Carrier Assy, Differential, Rear
41110 90341-18051 Plug, Drain(Hv)
41110 12157-10010 Gasket (For Drain Plug)
41110 90341-18023 Plug, W/head Straight Screw, No.1
41110 90341-36001 Plug, W/head Taper Screw, No.1
41110 90430-36003 Gasket(For Water Hole)
41171 41171-28030 Protector, Differential, Rear
41183 41183-33010 Deflector, Rear Differential Breather Plug Oil
41183 41183-48010 Deflector, Rear Differential Breather Plug Oil
41196 41196-58020 Damper, Rear Differential Dynamic
41201 41201-49165 Final Gear Kit, Differential, Rear
41201 41201-80124 Final Gear Kit, Differential, Rear
41201 41201-80690 Final Gear Kit, Differential, Rear
41201 90366-35093 Bearing (For Rear Drive Pinion Rear)
41201 90366-35154 Bearing (For Rear Drive Pinion Rear)
41201 90366-30047 Bearing (For Rear Drive Pinion Front)
41201 90366-30099 Bearing (For Rear Drive Pinion Front)
41201 90564-35041 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35042 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35043 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35044 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35045 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35046 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35047 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35048 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35049 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35050 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35051 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35052 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35053 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35054 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35055 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35056 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35057 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35058 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35059 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35060 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35061 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35062 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35063 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35064 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35065 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35070 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35071 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35072 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35073 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35074 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35075 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35076 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35077 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35078 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35079 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35080 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35081 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35082 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35083 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35084 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35085 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35086 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35087 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35088 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35089 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35090 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35091 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35092 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35093 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35094 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35095 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35165 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35167 Washer, Plate (For Rear Differential Drive Pinion)
41204 90178-30001 Nut (For Rear Drive Pinion)
41214 90560-30012 Slinger, Rear Differential Drive Pinion Oil
41231 41231-33030 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-42013 Deflector, Dust (For Rear Differential)
41252 41252-44010 Deflector, Dust (For Rear Differential)
41301 41301-21030 Case Sub-Assy, Rear Differential
41301 41301-48060 Case Sub-Assy, Rear Differential
41301 90366-38017 Bearing(For Rear Differential Case)
41301 90366-38048 Bearing(For Rear Differential Case)
41302 90105-11034 Bolt (For Transfer Gear )
41303 41303-58030 Coupling Sub-Assy, Electro Magnetic Control
41303 41171-28031 Protector, Differential, Rear
41303 90208-74003 Washer, Conical Spring (For Transmission Coupling)
41303 90560-68002 Spacer (For Transmission Coupling)
41303 41303-58033 Coupling Sub-Assy, Electro Magnetic Control
41303 41303-58031 Coupling Sub-Assy, Electro Magnetic Control
41303 41303-58032 Coupling Sub-Assy, Electro Magnetic Control
41309 41309-28050 Shaft Sub-Assy, Rear Differential Side Gear
41309 90114-10028 Bolt (For Rear Differential Side Gear Shaft)
41330 90208-74002 Washer, Conical Spring (For Transmission Coupling)
41330 90560-68001 Spacer (For Transmission Coupling)
41334 90311-42033 Seal, Oil (For Rear Differential Side Gear Shaft)
41334 90311-42046 Seal, Oil (For Rear Differential Side Gear Shaft)
41334 90311-42047 Seal, Oil (For Rear Differential Side Gear Shaft)
41334 90311-42062 SEAL TYPE T OIL
41334 90564-30075 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30076 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30077 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30078 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30079 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30080 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30081 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30082 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30083 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30084 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30085 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30086 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30088 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30089 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30090 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30091 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30092 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30093 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30094 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30095 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30096 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30097 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30098 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30099 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30100 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30101 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30102 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30103 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30104 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30105 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30106 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30107 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30108 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30109 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30110 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30111 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30112 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30113 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30114 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55025 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55026 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55027 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55028 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55029 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55030 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55031 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55032 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55033 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55034 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55035 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55036 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55037 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55038 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55039 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55040 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55041 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55042 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55043 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55044 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55045 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55046 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55047 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55048 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55049 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55050 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55051 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55052 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55053 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55054 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55055 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55056 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55057 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55058 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55059 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-55060 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)
41336 41336-28040 Cover, Dust(For Rear Differential Side Gear Shaft)
41338 41338-44010 Bracket, Connector Clamp
41342 41342-33020 Shaft, Rear Differential Pinion
41343 90250-04053 Pin, Straight (For Front Differential Pinion Shaft)
41351 41351-10030 Washer, Rear Differential Pinion Thrust
41361 41361-10070 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10080 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10090 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10100 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10110 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-10120 Washer, Rear Differential Side Gear Thrust, No.1
41410 90310-54001 Seal, Oil Diaphragm
41410 90310-54003 Seal, Oil Diaphragm
41507 95337-06020 Hose, Differential Pressure Control
41507 90407-10027 Union (For Front Differential)
41507 96132-51100 Clip (For Hose)
52380 52380-58020 Support, Rear Differential, No.1
52390 52390-58030 Support Assy, Differential, Rear
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
91673 91673-A0825 New Genuine Part
8271558320 82715-58320 Bracket,wiring Harness Clamp
9010514133 90105-14133 New Genuine Part
9010514134 90105-14134 New Genuine Part
9010514135 90105-14135 New Genuine Part
9011608409 90116-08409 BOLT STUD
9011912285 90119-12285 Bolt(For Rear Suspension Arm)
9011914127 90119-14127 Bolt
9017814014 90178-14014 New Genuine Part
9017912147 90179-12147 New Genuine Part
9025008014 90250-08014 Pin, Straight(For Timing Gear Cover Set)
9046607002 90466-07002 Clamp Or Clip(For Air Hose)
9099992002 90999-92002 Air Hose (300 mm)
9151281045 91512-81045 New Genuine Part
9155281045 91552-81045 Bolt, No.1(For Alternator)
9161160828 91611-60828 Bolt(For Clutch Release Cylinder Setting)
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9164281030 91642-81030 Bolt
Source
Public OEM parts-catalog data
Variants
1 / 10
Category
232
Collected
2026-08-02
