Search › Model › GGH25

GGH25

Toyota ALPHARD-VELLFIRE · 2008 · 5,204 parts · 232 categories

5,204 items

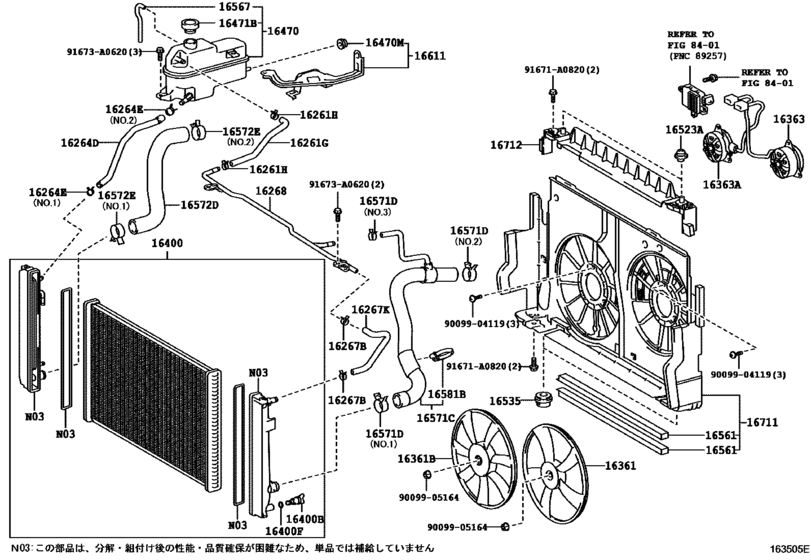

Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE) 61

#	OEM	Part name
16261	16261-28120	Hose, Water By-Pass, No.1
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	16261-31050	Hose, Water By-Pass
16261	96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	16264-28130	Hose, Water By-Pass, No.2
16264	96134-51700	Clip Or Clamp(For Ventilation Hose)
16264	16264-31081	Hose, Water By-Pass, No.2
16264	96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16267	16267-28100	Hose, Water By-Pass, No.3
16267	16267-31040	Hose, Water By-Pass, No.3
16268	16268-28140	Pipe, Water By-Pass, No.1
16268	16268-28141	Pipe, Water By-Pass, No.1
16321	16321-31011	Inlet, Water
16321	16321-31030	Inlet, Water
16322	16322-31010	Pipe, Water Inlet
16323	16323-0W011	Housing, Water Inlet
16323	16323-31040	Housing, Water Inlet
16325	16325-62010	Gasket, Water Inlet Housing, No.1
16326	16325-31010	Gasket, Water Inlet Housing, No.1
16331	16331-31140	Outlet, Water
16331	90916-03140	Thermostat
16341	16341-31010	Gasket, Water Outlet
16361	16361-31190	Fan
16361	16361-31200	Fan, No.2
16363	16363-46170	Motor, Cooling Fan
16363	16363-31060	Motor, Cooling Fan, No.2
16400	16400-31590	Radiator Assy
16400	16417-30170	Cock Sub-Assy, Radiator Drain
16400	16418-15520	Packing(For Radiator Drain Cock)
16470	16470-28150	Tank Assy, Radiator Reserve
16470	16470-28151	Tank Assy, Radiator Reserve
16470	90480-16044	Grommet
16471	16475-37010	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-37011	Cap Sub-Assy, Radiator Reserve Tank
16523	16523-21060	Cushion, Radiator Support
16535	16535-20030	Support, Radiator, Lower
16561	16561-31020	Seal, Radiator To Support, No.1
16567	16472-28150	Hose(For Radiator Reserve Tank)
16571	16571-31250	Hose, Radiator, No.1
16571	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90466-41005	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	16572-31220	Hose, Radiator, Outlet
16581	16581-26040	Clamp, Hose(For Water Hose)
16611	16611-28040	Bracket, Radiator Reserve Tank
16711	16711-31420	Shroud, Fan
16712	16712-31100	Shroud, Fan, No.2
91671	91671-A0820	New Genuine Part
91673	91673-A0620	BOLT FLANGE
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9091009127	90910-09127	COCK ASSY DRAIN
9155180620	91551-80620	Bolt
9155180660	91551-80660	BOLT FLANGE
9167180612	91671-80612	Bolt
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9212280616	92122-80616	Bolt, Stud(For Head To Cylinder Head Cover)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9676124019	96761-24019	Ring, O(For Water By-Pass Pipe)
9676124021	96761-24021	Ring, O(For Water By-Pass Joint Front)

OEM	Part name	Category
16261-28120	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16261-31050	Hose, Water By-Pass	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16264-28130	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16264-31081	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16267-28100	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16267-31040	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16268-28140	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16268-28141	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16321-31011	Inlet, Water	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16321-31030	Inlet, Water	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16322-31010	Pipe, Water Inlet	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16323-0W011	Housing, Water Inlet	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16323-31040	Housing, Water Inlet	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16325-31010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16325-62010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16331-31140	Outlet, Water	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16341-31010	Gasket, Water Outlet	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16361-31190	Fan	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16361-31200	Fan, No.2	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16363-31060	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16363-46170	Motor, Cooling Fan	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16400-31590	Radiator Assy	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16417-30170	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16418-15520	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16470-28150	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16470-28151	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16472-28150	Hose(For Radiator Reserve Tank)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16475-37010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16475-37011	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16523-21060	Cushion, Radiator Support	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16535-20030	Support, Radiator, Lower	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16561-31020	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16571-31250	Hose, Radiator, No.1	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16572-31220	Hose, Radiator, Outlet	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16581-26040	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16611-28040	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16711-31420	Shroud, Fan	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
16712-31100	Shroud, Fan, No.2	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
90099-05164	Nut	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
90466-41005	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
90480-16044	Grommet	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
90910-09127	COCK ASSY DRAIN	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
90916-03140	Thermostat	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
91551-80620	Bolt	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
91551-80660	BOLT FLANGE	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
91671-80612	Bolt	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
91671-A0820	New Genuine Part	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
91673-A0620	BOLT FLANGE	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
92122-80616	Bolt, Stud(For Head To Cylinder Head Cover)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
96134-51700	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
96761-24019	Ring, O(For Water By-Pass Pipe)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
96761-24021	Ring, O(For Water By-Pass Joint Front)	Radiator & Water Outlet ([04.2008 - ] (0804- )2GRFE)
