GGH25

Toyota ALPHARD-VELLFIRE · 2008 · 5,204 parts · 232 categories

← Back to categories

5,204 items

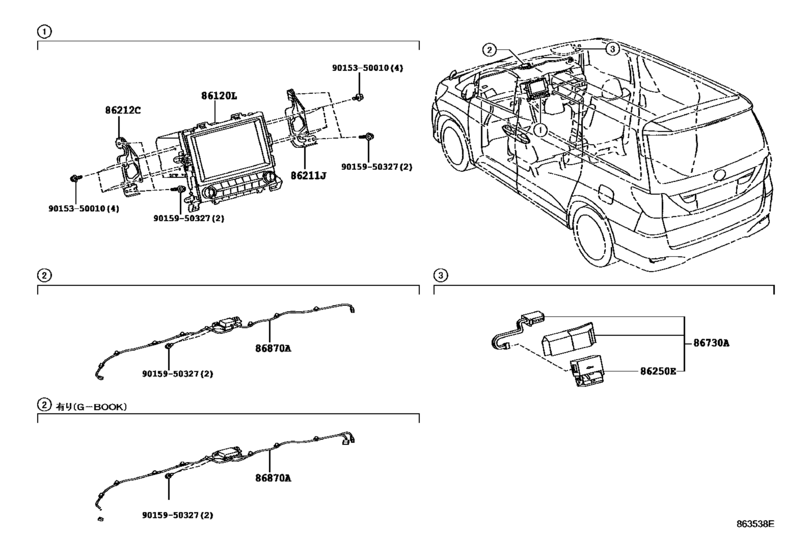

Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110)) 19

#	OEM	Part name
86120	86100-58041	Receiver Assy, Navigation
86120	86100-58044	Receiver Assy, Navigation
86120	86100-58042	Receiver Assy, Navigation
86120	86100-58043	Receiver Assy, Navigation
86120	86100-58061	Receiver Assy, Navigation
86120	86100-58064	Receiver Assy, Navigation
86120	86100-58062	Receiver Assy, Navigation
86120	86100-58063	Receiver Assy, Navigation
86211	86211-58040	Bracket, Radio Receiver, No.1
86211	86211-58080	Bracket, Radio Receiver, No.1
86212	86212-58040	Bracket, Radio Receiver, No.2
86212	86212-58080	Bracket, Radio Receiver, No.2
86250	86250-52020	Microphone Assy, Amplifier
86730	86730-58010	Microphone Assy, Telephone
86870	86870-58020	Antenna Assy, Gps & Vics
86870	86870-58030	Antenna Assy, Gps & Vics
86870	86870-58040	Antenna Assy, Gps & Vics
9015350010	90153-50010	BOLT
9015950327	90159-50327	SCREW WWASHER

OEM	Part name	Category
86100-58041	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86100-58042	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86100-58043	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86100-58044	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86100-58061	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86100-58062	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86100-58063	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86100-58064	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86211-58040	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86211-58080	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86212-58040	Bracket, Radio Receiver, No.2	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86212-58080	Bracket, Radio Receiver, No.2	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86250-52020	Microphone Assy, Amplifier	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86730-58010	Microphone Assy, Telephone	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86870-58020	Antenna Assy, Gps & Vics	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86870-58030	Antenna Assy, Gps & Vics	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
86870-58040	Antenna Assy, Gps & Vics	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
90153-50010	BOLT	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
90159-50327	SCREW WWASHER	Navigation & Front Monitor Display ([04.2008 - 10.2011] (0804-1110))
