Search › Model › GGA10

GGA10

Toyota MARK-X-ZIO · 2007 · 4,329 parts · 197 categories

4,329 items

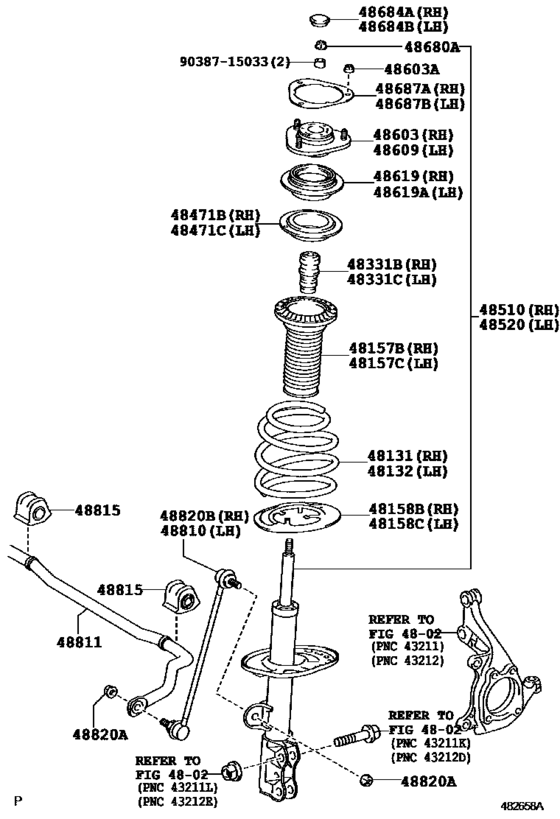

Front Spring & Shock Absorber ([09.2007 - ] (0709- )) 25

#	OEM	Part name
48131	48131-72020	Spring, Front Coil, Rh
48157	48157-47020	Insulator, Front Coil Spring, Upper Rh
48157	48157-72010	Insulator, Front Coil Spring, Upper Rh
48158	48158-21010	Insulator, Front Coil Spring, Lower Rh
48158	48158-42010	Insulator, Front Coil Spring, Lower
48331	48331-72010	Bumper, Front Spring, Rh
48471	48471-42010	Seat, Front Coil Spring, Upper
48510	48510-79035	Absorber Assy, Shock, Front Rh
48510	48510-79125	Absorber Assy, Shock, Front Rh
48520	48520-79035	Absorber Assy, Shock, Front Lh
48520	48520-79125	Absorber Assy, Shock, Front Lh
48603	48609-72010	Support Sub-Assy, Front Suspension, Rh
48603	90178-10030	Nut(For Front Suspension Support)
48619	48619-28010	Bearing, Strut Mounting
48680	90177-14005	Nut(For Front Support To Front Shock Absorber)
48684	48684-42020	Cover, Front Suspension Support Dust, Rh
48687	48687-28010	Plate, Front Suspension Support
48810	48820-42030	Link Assy, Front Stabilizer
48811	48811-12A10	Bar, Stabilizer, Front
48815	48815-12370	Bush, Front Stabilizer Bar, No.1
48815	48815-12390	Bush, Front Stabilizer Bar, No.1
48815	48815-72010	Bush, Front Stabilizer Bar, No.1
48815	48815-72020	Bush, Front Stabilizer Bar, No.1
48820	90179-12151	Nut(For Front Stabilizer Link)
9038715033	90387-15033	COLLAR

OEM	Part name	Category
48131-72020	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48157-47020	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48157-72010	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48158-21010	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48158-42010	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48331-72010	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48471-42010	Seat, Front Coil Spring, Upper	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48510-79035	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48510-79125	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48520-79035	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48520-79125	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48609-72010	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48619-28010	Bearing, Strut Mounting	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48684-42020	Cover, Front Suspension Support Dust, Rh	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48687-28010	Plate, Front Suspension Support	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48811-12A10	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48815-12370	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48815-12390	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48815-72010	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48815-72020	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
48820-42030	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
90177-14005	Nut(For Front Support To Front Shock Absorber)	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
90178-10030	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
90387-15033	COLLAR	Front Spring & Shock Absorber ([09.2007 - ] (0709- ))
