GGA10

Toyota MARK-X-ZIO · 2007 · 4,329 parts · 197 categories

4,329 items

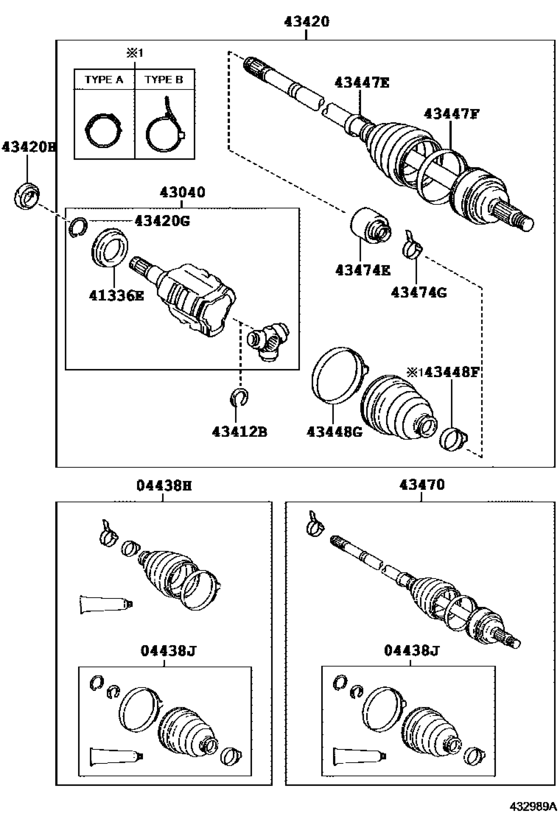

Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- )) 22

#	OEM	Part name
4438	04428-42120	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04428-78030	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04438-42180	Boot Kit, Front Drive Shaft Inboard Joint
41336	41336-28020	Cover, Front Drive Shaft Dust, Lh
43040	43040-28011	Joint Assy, Front Drive Inboard, Lh
43412	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43420	43420-42200	Shaft Assy, Front Drive, Lh
43420	43420-42201	Shaft Assy, Front Drive, Lh
43420	90521-33002	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43420	90311-50033	Oil Seal, Front Drive Shaft, Lh
43420	90311-50045	Oil Seal, Front Drive Shaft, Lh
43420	90311-50064	SEAL TYPE T OIL
43447	42345-42120	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-42110	Clamp, No.2 (For Front Axle Outboard Joint Boot)
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43470	43470-49675	Shaft Assy, Front Drive Outboard Joint, Lh
43470	43470-49676	Shaft Assy, Front Drive Outboard Joint, Lh
43474	43474-42010	Damper, Front Drive Shaft, Lh
43474	43474-42050	Damper, Front Drive Shaft, Lh
43474	42345-14010	Clamp, Rear Drive Shaft Boot

OEM	Part name	Category
04428-42120	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
04428-78030	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
04438-42180	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
41336-28020	Cover, Front Drive Shaft Dust, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
42345-42110	Clamp, No.2 (For Front Axle Outboard Joint Boot)	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
42345-42120	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
43040-28011	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
43420-42200	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
43420-42201	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
43470-49675	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
43470-49676	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
43474-42010	Damper, Front Drive Shaft, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
43474-42050	Damper, Front Drive Shaft, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
90311-50033	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
90311-50045	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
90311-50064	SEAL TYPE T OIL	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
90521-33002	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([09.2007 - ] ﾚﾌﾄ (0709- ))
