Search › Model › GGA10

GGA10

Toyota MARK-X-ZIO · 2007 · 4,329 parts · 197 categories

4,329 items

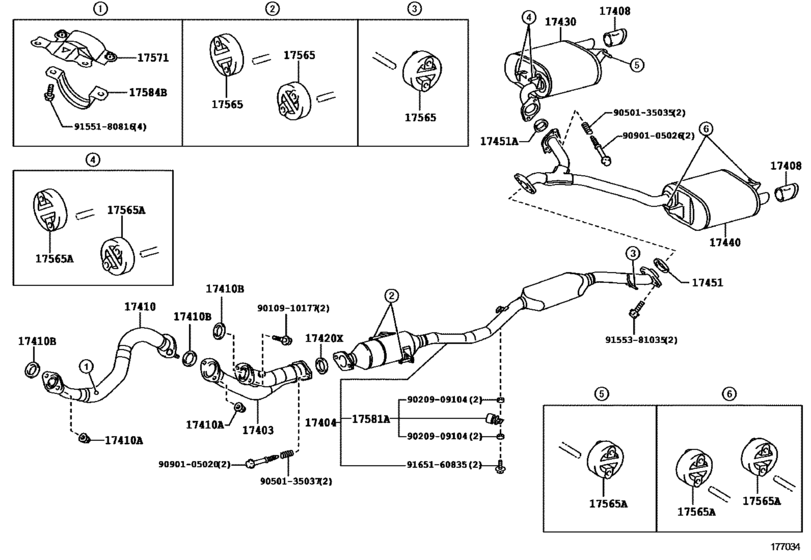

Exhaust Pipe ([02.2011 - ] (1102- )2GRFE) 32

#	OEM	Part name
17403	17403-31070	Pipe Sub-Assy, Exhaust, Front No.3
17404	17404-31080	Pipe Sub-Assy, Exhaust Forked
17408	17408-31060	Baffle Sub Assy, Exhaust Tail Pipe
17410	17410-31690	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06089	Gasket, Exhaust Pipe
17420	17451-28040	Gasket, Exhaust Pipe
17420	17451-28041	Gasket, Exhaust Pipe
17430	17430-31590	Pipe Assy, Exhaust, Tail
17430	17430-31593	Pipe Assy, Exhaust, Tail
17430	17430-31591	Pipe Assy, Exhaust, Tail
17440	17440-31030	Pipe, Exhaust Tail, Lh
17440	17440-31031	Pipe, Exhaust Tail, Lh
17451	90917-06078	Gasket, Exhaust Pipe
17451	90917-A6003	Gasket, Exhaust Pipe
17451	17451-23041	Gasket, Exhaust Pipe
17451	17451-23042	Gasket, Exhaust Pipe, Center
17565	17565-22030	Support, Exhaust Pipe, No.1
17565	17565-22040	Support, Exhaust Pipe, No.1
17571	17571-31190	Bracket, Exhaust Pipe Support, No.1
17581	17581-70080	Damper, Exhaust Pipe
17584	17584-31040	Bracket, Exhaust Pipe No.1 Support
9010910177	90109-10177	BOLT
9020909104	90209-09104	New Genuine Part
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9155180816	91551-80816	Bolt(For Manual Transmission Oil Separator)
9155381035	91553-81035	BOLT, FLANGE
9165160835	91651-60835	Bolt(For Front Suspension Control Accumulator)

OEM	Part name	Category
17403-31070	Pipe Sub-Assy, Exhaust, Front No.3	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17404-31080	Pipe Sub-Assy, Exhaust Forked	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17408-31060	Baffle Sub Assy, Exhaust Tail Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17410-31690	Pipe Assy, Exhaust, Front	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17430-31590	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17430-31591	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17430-31593	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17440-31030	Pipe, Exhaust Tail, Lh	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17440-31031	Pipe, Exhaust Tail, Lh	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17451-23041	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17451-23042	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17565-22030	Support, Exhaust Pipe, No.1	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17571-31190	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17581-70080	Damper, Exhaust Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
17584-31040	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90109-10177	BOLT	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90209-09104	New Genuine Part	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90917-06078	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90917-06089	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
90917-A6003	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
91553-81035	BOLT, FLANGE	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
91651-60835	Bolt(For Front Suspension Control Accumulator)	Exhaust Pipe ([02.2011 - ] (1102- )2GRFE)
