GE306

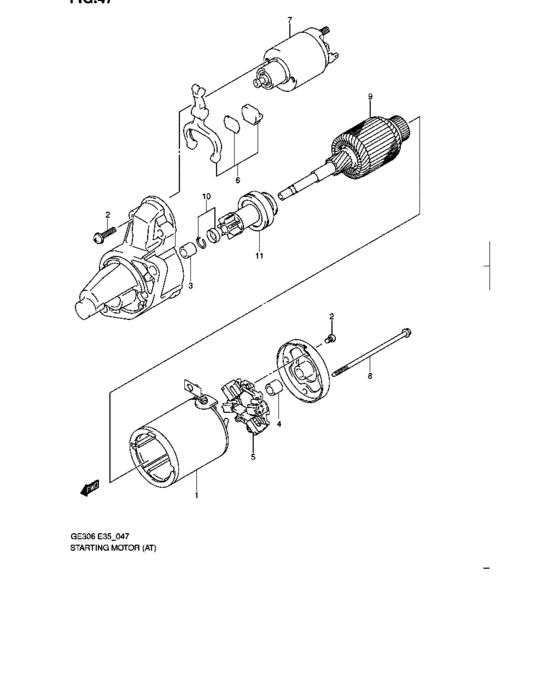

Starting motor (AT) 15
| # | OEM | Part name |
|---|---|---|
| 0 | 31100-68H10-000 | Motor assy,starting |
| 0 | 31100-68H11-000 | MOTOR ASSY,STARTING |
| 1 | 31110-68H10-000 | YOKE ASSY |
| 2 | 31136-79030-000 | SCREW ASSY |
| 2 | 31175-79030-000 | Screw Set |
| 3 | 31152-68H00-000 | BUSH |
| 4 | 31172-64B60-000 | BEARING,REAR |
| 5 | 31173-68H00-000 | BRUSH ASSY |
| 6 | 31191-68H00-000 | LEVER ASSY |
| 7 | 31220-68H00-000 | Switch assy |
| 7 | 31220-68H01-000 | SWITCH ASSY |
| 8 | 31261-75F10-000 | Bolt |
| 9 | 31311-68H00-000 | ARMATURE ASSY |
| 10 | 31313-68H00-000 | STOPPER SET |
| 11 | 31320-68H10-000 | CLUTCH ASSY |
| OEM | Part name | Category |
|---|---|---|
| 31100-68H10-000 | Motor assy,starting | Starting motor (AT) |
| 31100-68H11-000 | MOTOR ASSY,STARTING | Starting motor (AT) |
| 31110-68H10-000 | YOKE ASSY | Starting motor (AT) |
| 31136-79030-000 | SCREW ASSY | Starting motor (AT) |
| 31152-68H00-000 | BUSH | Starting motor (AT) |
| 31172-64B60-000 | BEARING,REAR | Starting motor (AT) |
| 31173-68H00-000 | BRUSH ASSY | Starting motor (AT) |
| 31175-79030-000 | Screw Set | Starting motor (AT) |
| 31191-68H00-000 | LEVER ASSY | Starting motor (AT) |
| 31220-68H00-000 | Switch assy | Starting motor (AT) |
| 31220-68H01-000 | SWITCH ASSY | Starting motor (AT) |
| 31261-75F10-000 | Bolt | Starting motor (AT) |
| 31311-68H00-000 | ARMATURE ASSY | Starting motor (AT) |
| 31313-68H00-000 | STOPPER SET | Starting motor (AT) |
| 31320-68H10-000 | CLUTCH ASSY | Starting motor (AT) |
