Search › Model › GE306
GE306

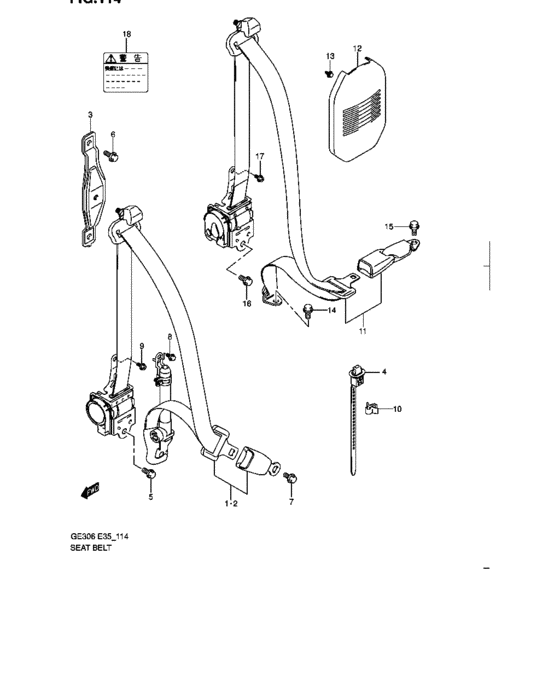

Seat belt (SEAT BELT) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 84901-68H12-BHA | Belt assy,fr r |
| 1 | 84901-68H15-BHA | BELT ASSY,FR,R |
| 2 | 84902-68H02-BHA | Belt assy,fr,l(beige) |
| 3 | 84990-72J00-000 | BRACKET ASSY,FIX ANCHOR |
| 4 | 85198-68H00-000 | CLAMP,FR BUCKLE HARNESS |
| 5 | 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle |
| 7 | 09117-11002-000 | BOLT(11X20) |
| 8 | 09136-06155-000 | SCREW(6X16) |
| 10 | 09403-04401-000 | CLAMP |
| 11 | 84904-68H01-BHA | Belt assy,rr(beige) |
| 12 | 84967-68H00-R8H | COVER,RR ELR |
| 13 | 09409-10312-000 | CLIP |
| 18 | 84998-68H01-000 | LABEL,CRS WARNING |
| OEM | Part name | Category |
|---|---|---|
| 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle | Seat belt (SEAT BELT) |
| 09117-11002-000 | BOLT(11X20) | Seat belt (SEAT BELT) |
| 09136-06155-000 | SCREW(6X16) | Seat belt (SEAT BELT) |
| 09403-04401-000 | CLAMP | Seat belt (SEAT BELT) |
| 09409-10312-000 | CLIP | Seat belt (SEAT BELT) |
| 84901-68H12-BHA | Belt assy,fr r | Seat belt (SEAT BELT) |
| 84901-68H15-BHA | BELT ASSY,FR,R | Seat belt (SEAT BELT) |
| 84902-68H02-BHA | Belt assy,fr,l(beige) | Seat belt (SEAT BELT) |
| 84904-68H01-BHA | Belt assy,rr(beige) | Seat belt (SEAT BELT) |
| 84967-68H00-R8H | COVER,RR ELR | Seat belt (SEAT BELT) |
| 84990-72J00-000 | BRACKET ASSY,FIX ANCHOR | Seat belt (SEAT BELT) |
| 84998-68H01-000 | LABEL,CRS WARNING | Seat belt (SEAT BELT) |
| 85198-68H00-000 | CLAMP,FR BUCKLE HARNESS | Seat belt (SEAT BELT) |
