Search › Model › GE306
GE306

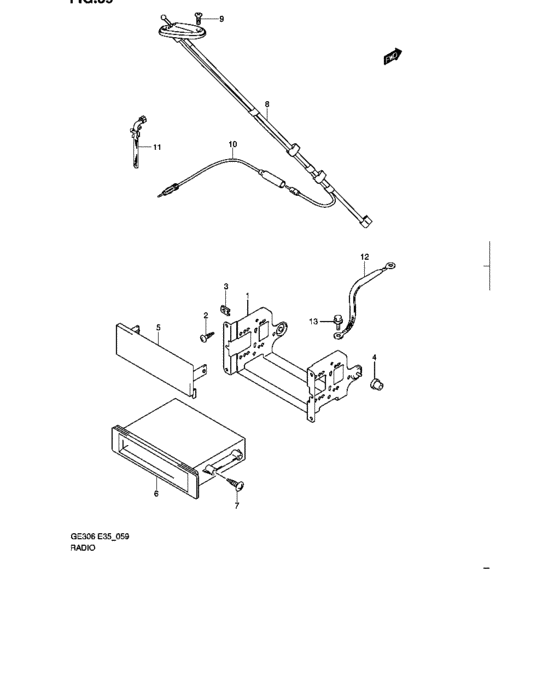

Radio (RADIO) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 39321-54G03-000 | BRACKET,TUNER |
| 2 | 03541-0516A-000 | SCREW |
| 3 | 09148-05045-000 | NUT |
| 4 | 34955-54G10-000 | BUSH,RADIO BRKT |
| 5 | 39161-74G00-000 | COVER,RADIO HOLE |
| 5 | 39161-80J00-000 | COVER,RADIO HOLE |
| 6 | 39182-70E51-000 | POCKET,TUNER |
| 6 | 39182-80J00-000 | Pocket,tuner |
| 6 | 39182-80J10-000 | POCKET,TUNER |
| 7 | 03241-0512A-000 | SCREW |
| 8 | 39250-68H10-000 | ANTENNA ASSY |
| 9 | 09129-04003-000 | SCREW(4X12) |
| 10 | 39271-68H00-000 | Feeder comp,ant i/p |
| 10 | 39271-68H01-000 | New Genuine Part |
| 11 | 09407-12404-000 | CLAMP(L:140) |
| 12 | 39312-78F01-000 | WIRE,NOISE SUPPR |
| 13 | 09115-06005-000 | BOLT(6X16) |
| OEM | Part name | Category |
|---|---|---|
| 03241-0512A-000 | SCREW | Radio (RADIO) |
| 03541-0516A-000 | SCREW | Radio (RADIO) |
| 09115-06005-000 | BOLT(6X16) | Radio (RADIO) |
| 09129-04003-000 | SCREW(4X12) | Radio (RADIO) |
| 09148-05045-000 | NUT | Radio (RADIO) |
| 09407-12404-000 | CLAMP(L:140) | Radio (RADIO) |
| 34955-54G10-000 | BUSH,RADIO BRKT | Radio (RADIO) |
| 39161-74G00-000 | COVER,RADIO HOLE | Radio (RADIO) |
| 39161-80J00-000 | COVER,RADIO HOLE | Radio (RADIO) |
| 39182-70E51-000 | POCKET,TUNER | Radio (RADIO) |
| 39182-80J00-000 | Pocket,tuner | Radio (RADIO) |
| 39182-80J10-000 | POCKET,TUNER | Radio (RADIO) |
| 39250-68H10-000 | ANTENNA ASSY | Radio (RADIO) |
| 39271-68H00-000 | Feeder comp,ant i/p | Radio (RADIO) |
| 39271-68H01-000 | New Genuine Part | Radio (RADIO) |
| 39312-78F01-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39321-54G03-000 | BRACKET,TUNER | Radio (RADIO) |
