Search › Model › GE306
GE306

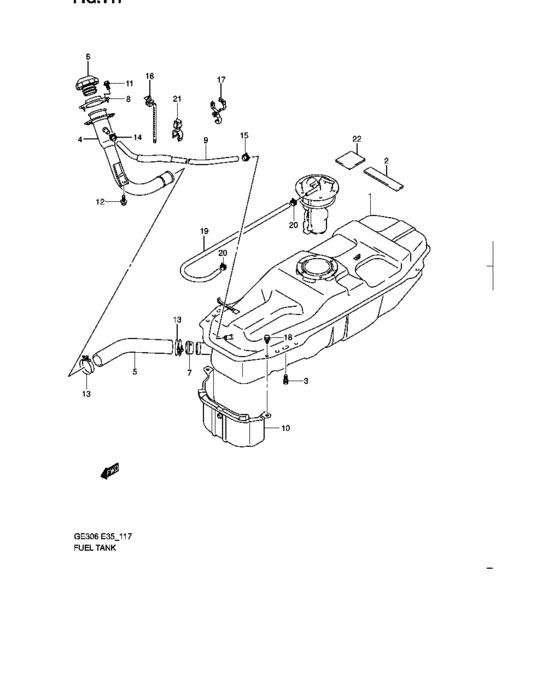

Fuel tank (FUEL TANK) 27
| # | OEM | Part name |
|---|---|---|
| 1 | 89101-68H01-000 | Tank assy,fuel |
| 2 | 89381-63J00-000 | PAD,FUEL TANK |
| 3 | 09118-08151-XC0 | BOLT(8X25) |
| 3 | 89191-83J00-000 | BOLT,FUEL TANK FIXER |
| 4 | 89210-68H11-000 | NECK,FUEL FILLER |
| 5 | 89241-68H00-000 | HOSE,FUEL TANK FILLER |
| 6 | 89260-50J00-000 | CAP ASSY,FUEL FILLER |
| 7 | 89280-77A00-000 | VALVE,FUEL TANK INLET |
| 8 | 89285-58J00-000 | PACKING,FUEL FILLER |
| 9 | 89290-68H00-000 | Hose comp,fuel tank breather |
| 9 | 89290-68H01-000 | HOSE,FUEL TANK BREATHER |
| 10 | 89311-79A00-000 | COVER,FUEL TANK,FR |
| 11 | 09116-05014-000 | BOLT(5X20) |
| 12 | 09116-06205-000 | BOLT(6X16) |
| 13 | 09400-45311-000 | CLAMP |
| 14 | 09401-16406-000 | Clip - Clip, hose |
| 14 | 09401-16407-000 | CLIP |
| 15 | 09401-18404-000 | CLIP |
| 16 | 09407-11402-000 | CLAMP(L:90) |
| 16 | 09407-17402-000 | CLAMP |
| 17 | 09408-00230-000 | CLAMP |
| 18 | 09409-08327-000 | CLIP |
| 19 | 09355-54128-00B | HOSE(5.6X12.4X2000) |
| 20 | 09401-11415-000 | CLIP |
| 21 | 09408-00056-000 | CLIP |
| 21 | 09408-00189-000 | CLAMP |
| 22 | 76354-52D00-000 | PAD,FUEL TANK |
| OEM | Part name | Category |
|---|---|---|
| 09116-05014-000 | BOLT(5X20) | Fuel tank (FUEL TANK) |
| 09116-06205-000 | BOLT(6X16) | Fuel tank (FUEL TANK) |
| 09118-08151-XC0 | BOLT(8X25) | Fuel tank (FUEL TANK) |
| 09355-54128-00B | HOSE(5.6X12.4X2000) | Fuel tank (FUEL TANK) |
| 09400-45311-000 | CLAMP | Fuel tank (FUEL TANK) |
| 09401-11415-000 | CLIP | Fuel tank (FUEL TANK) |
| 09401-16406-000 | Clip - Clip, hose | Fuel tank (FUEL TANK) |
| 09401-16407-000 | CLIP | Fuel tank (FUEL TANK) |
| 09401-18404-000 | CLIP | Fuel tank (FUEL TANK) |
| 09407-11402-000 | CLAMP(L:90) | Fuel tank (FUEL TANK) |
| 09407-17402-000 | CLAMP | Fuel tank (FUEL TANK) |
| 09408-00056-000 | CLIP | Fuel tank (FUEL TANK) |
| 09408-00189-000 | CLAMP | Fuel tank (FUEL TANK) |
| 09408-00230-000 | CLAMP | Fuel tank (FUEL TANK) |
| 09409-08327-000 | CLIP | Fuel tank (FUEL TANK) |
| 76354-52D00-000 | PAD,FUEL TANK | Fuel tank (FUEL TANK) |
| 89101-68H01-000 | Tank assy,fuel | Fuel tank (FUEL TANK) |
| 89191-83J00-000 | BOLT,FUEL TANK FIXER | Fuel tank (FUEL TANK) |
| 89210-68H11-000 | NECK,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89241-68H00-000 | HOSE,FUEL TANK FILLER | Fuel tank (FUEL TANK) |
| 89260-50J00-000 | CAP ASSY,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89280-77A00-000 | VALVE,FUEL TANK INLET | Fuel tank (FUEL TANK) |
| 89285-58J00-000 | PACKING,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89290-68H00-000 | Hose comp,fuel tank breather | Fuel tank (FUEL TANK) |
| 89290-68H01-000 | HOSE,FUEL TANK BREATHER | Fuel tank (FUEL TANK) |
| 89311-79A00-000 | COVER,FUEL TANK,FR | Fuel tank (FUEL TANK) |
| 89381-63J00-000 | PAD,FUEL TANK | Fuel tank (FUEL TANK) |
