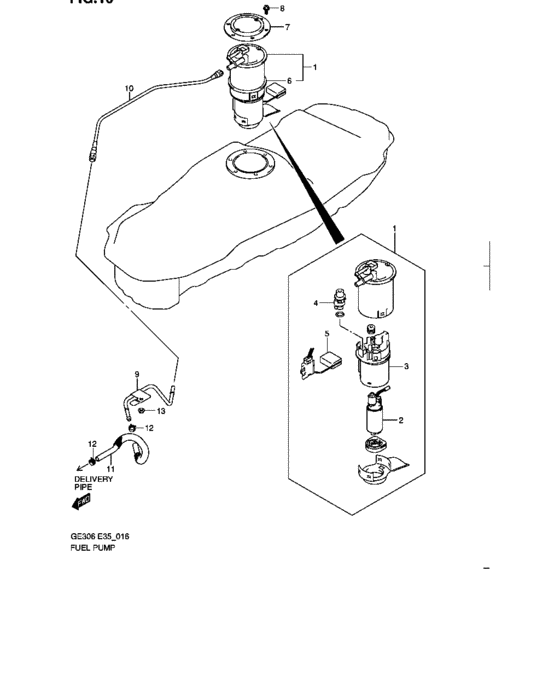

Fuel Pump (FUEL PUMP)
14
| # | OEM | Part name |
|---|
| 1 |
15100-68812-000 |
PUMP SET,FUEL |
| 2 |
15110-68H02-000 |
PUMP ASSY,FUEL |
| 2 |
15110-68H03-000 |
PUMP ASSY,FUEL |
| 3 |
15310-68H01-000 |
FILTER ASSY,FUEL |
| 4 |
15610-58J10-000 |
REGULATOR ASSY,FUEL |
| 5 |
34810-68H00-000 |
GAUGE ASSY,FUEL LEVEL |
| 6 |
15111-75F01-000 |
GASKET,FUEL PUMP |
| 7 |
15121-75F01-000 |
PLATE,FUEL PUMP |
| 8 |
02162-0610A-000 |
SCREW |
| 9 |
15820-68H01-000 |
PIPE,FUEL |
| 10 |
15812-68H00-000 |
PIPE,FUEL PUMP TO PIPE |
| 11 |
15824-68H01-000 |
HOSE,FUEL PIPE TO ENG |
| 12 |
09401-13419-000 |
CLIP |
| 13 |
09159-06076-000 |
NUT |
| OEM |
Part name |
Category |
| 02162-0610A-000 |
SCREW |
Fuel Pump (FUEL PUMP) |
| 09159-06076-000 |
NUT |
Fuel Pump (FUEL PUMP) |
| 09401-13419-000 |
CLIP |
Fuel Pump (FUEL PUMP) |
| 15100-68812-000 |
PUMP SET,FUEL |
Fuel Pump (FUEL PUMP) |
| 15110-68H02-000 |
PUMP ASSY,FUEL |
Fuel Pump (FUEL PUMP) |
| 15110-68H03-000 |
PUMP ASSY,FUEL |
Fuel Pump (FUEL PUMP) |
| 15111-75F01-000 |
GASKET,FUEL PUMP |
Fuel Pump (FUEL PUMP) |
| 15121-75F01-000 |
PLATE,FUEL PUMP |
Fuel Pump (FUEL PUMP) |
| 15310-68H01-000 |
FILTER ASSY,FUEL |
Fuel Pump (FUEL PUMP) |
| 15610-58J10-000 |
REGULATOR ASSY,FUEL |
Fuel Pump (FUEL PUMP) |
| 15812-68H00-000 |
PIPE,FUEL PUMP TO PIPE |
Fuel Pump (FUEL PUMP) |
| 15820-68H01-000 |
PIPE,FUEL |
Fuel Pump (FUEL PUMP) |
| 15824-68H01-000 |
HOSE,FUEL PIPE TO ENG |
Fuel Pump (FUEL PUMP) |
| 34810-68H00-000 |
GAUGE ASSY,FUEL LEVEL |
Fuel Pump (FUEL PUMP) |
