Search › Model › GE306
GE306

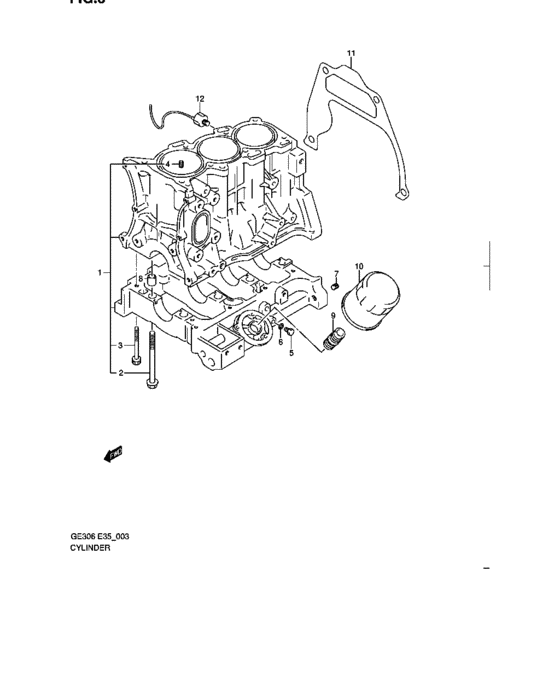

Cylinder (CYLINDER) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 11200-67H02-000 | Block assy,cylinder |
| 1 | 11200-67H03-X12 | BLOCK ASSY,CYLINDER K6A |
| 2 | 11117-73G00-000 | BOLT,CYLINDER HEAD |
| 3 | 11261-73G01-000 | BOLT,8X59 |
| 4 | 11112-73010-000 | PLUG,OIL VENTURI |
| 5 | 09247-10001-000 | PLUG - Plug, oil drain |
| 6 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer |
| 7 | 09246-08004-000 | PLUG,3/8PT H:4 |
| 8 | 09206-13024-000 | PIN(11X13.6X13) |
| 9 | 11241-69G01-000 | STAND,OIL FILTER |
| 9 | 11241-69G02-000 | STAND,OIL FILTER |
| 10 | 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil |
| 11 | 11311-67H20-000 | PLATE,CLUTCH HSG UPPER |
| 11 | 11311-67H00-000 | PLATE,CLUTCH HSG UPPER |
| 12 | 18640-78G00-000 | SENSOR ASSY,KNOCK |
| OEM | Part name | Category |
|---|---|---|
| 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | Cylinder (CYLINDER) |
| 09206-13024-000 | PIN(11X13.6X13) | Cylinder (CYLINDER) |
| 09246-08004-000 | PLUG,3/8PT H:4 | Cylinder (CYLINDER) |
| 09247-10001-000 | PLUG - Plug, oil drain | Cylinder (CYLINDER) |
| 11112-73010-000 | PLUG,OIL VENTURI | Cylinder (CYLINDER) |
| 11117-73G00-000 | BOLT,CYLINDER HEAD | Cylinder (CYLINDER) |
| 11200-67H02-000 | Block assy,cylinder | Cylinder (CYLINDER) |
| 11200-67H03-X12 | BLOCK ASSY,CYLINDER K6A | Cylinder (CYLINDER) |
| 11241-69G01-000 | STAND,OIL FILTER | Cylinder (CYLINDER) |
| 11241-69G02-000 | STAND,OIL FILTER | Cylinder (CYLINDER) |
| 11261-73G01-000 | BOLT,8X59 | Cylinder (CYLINDER) |
| 11311-67H00-000 | PLATE,CLUTCH HSG UPPER | Cylinder (CYLINDER) |
| 11311-67H20-000 | PLATE,CLUTCH HSG UPPER | Cylinder (CYLINDER) |
| 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil | Cylinder (CYLINDER) |
| 18640-78G00-000 | SENSOR ASSY,KNOCK | Cylinder (CYLINDER) |
