GE306

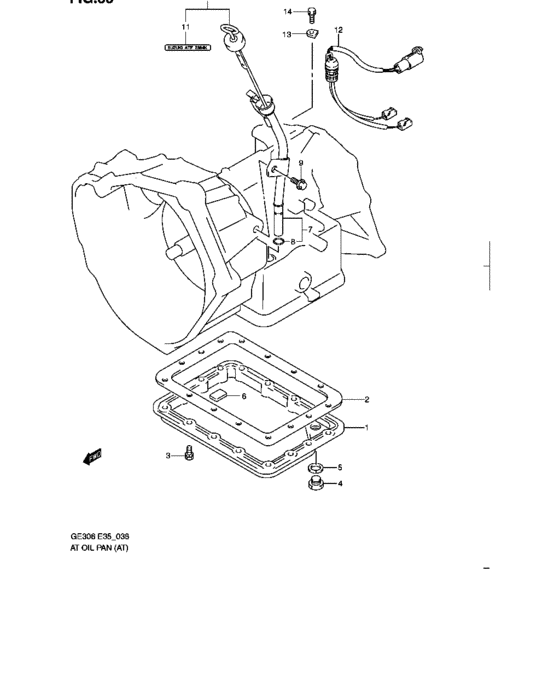

At oil pan (AT) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 24761-85500-000 | PAN,T/M OIL |
| 2 | 24784-85500-000 | GASKET,T/M OIL PAN |
| 3 | 24882-85501-000 | BOLT,T/M OIL PAN |
| 4 | 09247-10007-000 | PLUG |
| 5 | 09168-12009-000 | GASKET(12X16.7X2) |
| 6 | 24861-78230-000 | MAGNET,OIL CLEANER |
| 7 | 24785-60H30-000 | TUBE ASSY,T/M OIL FILLER |
| 8 | 24785-82300-000 | O-RING,OIL FILLER TUBE |
| 9 | 01550-0816A-000 | Bolt - Bolt, rear |
| 10 | 24830-60H31-000 | GAUGE,T/M OIL LEVEL |
| 11 | 24839-67H10-000 | EMBLEM,ATF |
| 12 | 24743-68H10-000 | HARNESS,SOLENOID WIRE |
| 13 | 24742-82300-000 | PLATE,SOLENOID WIRE HARN HOLD |
| 14 | 01570-0616A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0816A-000 | Bolt - Bolt, rear | At oil pan (AT) |
| 01570-0616A-000 | Bolt | At oil pan (AT) |
| 09168-12009-000 | GASKET(12X16.7X2) | At oil pan (AT) |
| 09247-10007-000 | PLUG | At oil pan (AT) |
| 24742-82300-000 | PLATE,SOLENOID WIRE HARN HOLD | At oil pan (AT) |
| 24743-68H10-000 | HARNESS,SOLENOID WIRE | At oil pan (AT) |
| 24761-85500-000 | PAN,T/M OIL | At oil pan (AT) |
| 24784-85500-000 | GASKET,T/M OIL PAN | At oil pan (AT) |
| 24785-60H30-000 | TUBE ASSY,T/M OIL FILLER | At oil pan (AT) |
| 24785-82300-000 | O-RING,OIL FILLER TUBE | At oil pan (AT) |
| 24830-60H31-000 | GAUGE,T/M OIL LEVEL | At oil pan (AT) |
| 24839-67H10-000 | EMBLEM,ATF | At oil pan (AT) |
| 24861-78230-000 | MAGNET,OIL CLEANER | At oil pan (AT) |
| 24882-85501-000 | BOLT,T/M OIL PAN | At oil pan (AT) |
