Search › Model › GE306
GE306

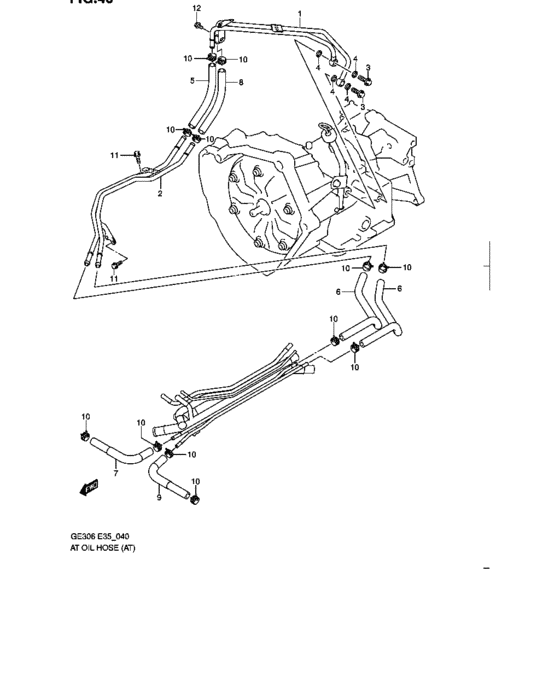

At oil hose (AT) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 22910-68H10-000 | PIPE,OIL NO.1 |
| 2 | 22920-68H10-000 | Pipe,oil no.2 |
| 2 | 22920-68H11-000 | PIPE,OIL NO.2 |
| 3 | 09360-10055-000 | UNION - Bolt, oil pipe union |
| 4 | 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT |
| 5 | 22931-66H10-000 | HOSE,OIL OUTLET NO.1 |
| 6 | 22934-68H10-000 | HOSE,OIL NO.4 |
| 7 | 22935-68HH0-000 | HOSE,OIL NO.5 |
| 8 | 22936-66H10-000 | HOSE,OIL INLET NO.1 |
| 9 | 22936-68H10-000 | HOSE,OIL NO.6 |
| 10 | 09401-15410-000 | CLIP |
| 11 | 01550-0612A-000 | Bolt |
| 12 | 02162-0610A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | At oil hose (AT) |
| 02162-0610A-000 | SCREW | At oil hose (AT) |
| 09360-10055-000 | UNION - Bolt, oil pipe union | At oil hose (AT) |
| 09401-15410-000 | CLIP | At oil hose (AT) |
| 22910-68H10-000 | PIPE,OIL NO.1 | At oil hose (AT) |
| 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT | At oil hose (AT) |
| 22920-68H10-000 | Pipe,oil no.2 | At oil hose (AT) |
| 22920-68H11-000 | PIPE,OIL NO.2 | At oil hose (AT) |
| 22931-66H10-000 | HOSE,OIL OUTLET NO.1 | At oil hose (AT) |
| 22934-68H10-000 | HOSE,OIL NO.4 | At oil hose (AT) |
| 22935-68HH0-000 | HOSE,OIL NO.5 | At oil hose (AT) |
| 22936-66H10-000 | HOSE,OIL INLET NO.1 | At oil hose (AT) |
| 22936-68H10-000 | HOSE,OIL NO.6 | At oil hose (AT) |
