GDJ155

Toyota LAND-CRUISER-PRADO · 2015 · 4,889 parts · 239 categories

← Back to categories

4,889 items

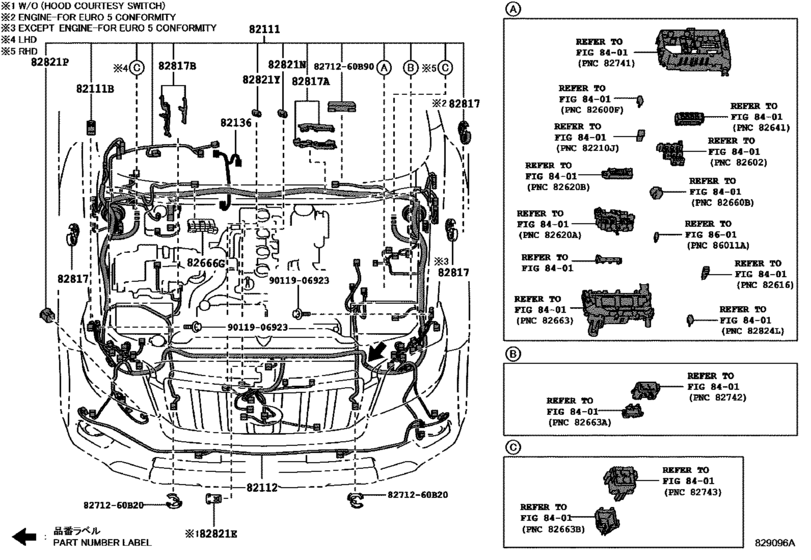

Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- )) 12

#	OEM	Part name
82111	82111-6AT80	Wire, Engine Room Main
82111	90980-04083	Condenser
82112	82112-60810	Wire, Engine Room, No.2
82112	82112-60820	Wire, Engine Room, No.2
82136	82136-60C30	Wire, Dash
82817	82817-32840	Protector, Wiring Harness, No.1
82821	82821-60150	Cover, Connector - CONECTOR
82821	82821-12400	Cover, Connector
82821	82821-50560	Cover, Connector
8271260	82712-60B20	Support, Wiring Harness
8271260	82712-60B90	Support, Wiring Harness
9011906923	90119-06923	BOLT WWASHER

OEM	Part name	Category
82111-6AT80	Wire, Engine Room Main	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
82112-60810	Wire, Engine Room, No.2	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
82112-60820	Wire, Engine Room, No.2	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
82136-60C30	Wire, Dash	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
82712-60B20	Support, Wiring Harness	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
82712-60B90	Support, Wiring Harness	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
82817-32840	Protector, Wiring Harness, No.1	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
82821-12400	Cover, Connector	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
82821-50560	Cover, Connector	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
82821-60150	Cover, Connector - CONECTOR	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
90119-06923	BOLT WWASHER	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
90980-04083	Condenser	Wiring & Clamp ([08.2013 - ] ENGINE ROOM(EXCEPT EURO 6) (1308- ))
