Search › Model › GDJ155
GDJ155

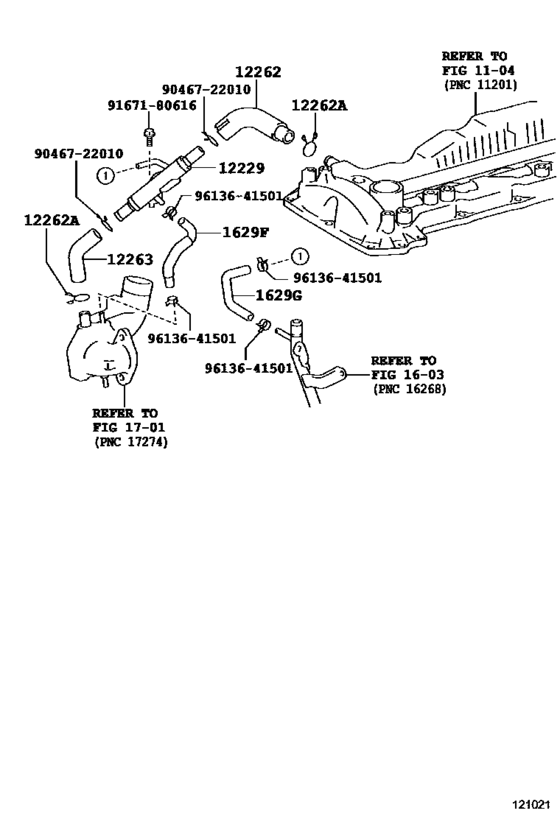

Ventilation Hose ([06.2015 - ] (1506- )1GDFTV) 7
| # | OEM | Part name |
|---|---|---|
| 12229 | 12229-11060 | Pipe, Ventilation |
| 12262 | 12262-11110 | Hose, Ventilation, No.2 |
| 12262 | 90466-22005 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 12263-11020 | Hose, Ventilation, No.3 |
| 9046722010 | 90467-22010 | Clip Or Clamp(For Ventilation Hose) |
| 9167180616 | 91671-80616 | BOLT FLANGE |
| 9613641501 | 96136-41501 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12229-11060 | Pipe, Ventilation | Ventilation Hose ([06.2015 - ] (1506- )1GDFTV) |
| 12262-11110 | Hose, Ventilation, No.2 | Ventilation Hose ([06.2015 - ] (1506- )1GDFTV) |
| 12263-11020 | Hose, Ventilation, No.3 | Ventilation Hose ([06.2015 - ] (1506- )1GDFTV) |
| 90466-22005 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([06.2015 - ] (1506- )1GDFTV) |
| 90467-22010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([06.2015 - ] (1506- )1GDFTV) |
| 91671-80616 | BOLT FLANGE | Ventilation Hose ([06.2015 - ] (1506- )1GDFTV) |
| 96136-41501 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Ventilation Hose ([06.2015 - ] (1506- )1GDFTV) |
