GDJ155

Toyota LAND-CRUISER-PRADO · 2015 · 4,889 parts · 239 categories
GDJ155 ×

← Back to categories

4,889 items

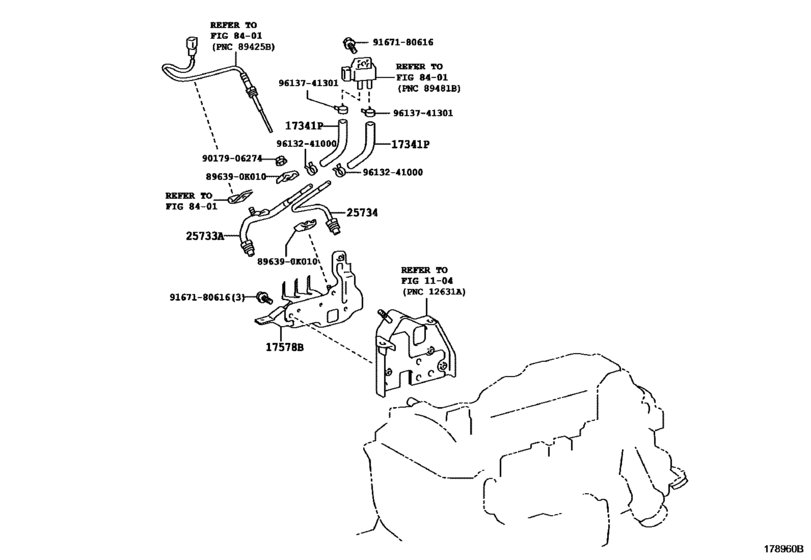

Vacuum Piping ([06.2015 - ] (1506- )1GDFTV) 34
#OEMPart name
17341 17341-11460 Hose, Air
17578 17578-11040 Clamp, Pipe
17696 17696-11010 Bracket, Gas Filter
23265 90917-11044 Filter, Gas, No.1
25706 25706-11010 Pipe Sub-Assy, Vacuum Transmitting, No.1
25707 25707-11010 Pipe Sub-Assy, Vacuum Transmitting, No.2
25708 25708-11010 Pipe Sub-Assy, Vacuum Transmitting, No.3
25709 25709-11020 Pipe Sub-Assy, Vacuum Transmitting, No.4
25733 25733-0E010 Pipe, Vacuum, No.1
25734 25734-0E010 Pipe, Vacuum, No.2
25760 25760-11420 Hose Assy, Vacuum Transmitting
25761 25761-11010 Hose, Vaccum Transmitting, No.1
25770 25770-11010 Hose Assy, Vacuum Transmitting, No.2
25771 25771-11020 Hose, Vaccum Transmitting, No.2
25780 25780-11010 Hose Assy, Vacuum Transmitting, No.3
25781 25781-11010 Hose, Vacuum Transmitting, No.3
25790 25791-11010 Hose Assy, Vacuum Transmitting, No.4
25804 25804-11010 Valve Set, Vacuum Control
25804 25804-11020 Valve Set, Vacuum Control
25860 25860-30070 Valve Assy, Vacuum Switching
25860 25860-30160 Valve Assy, Vacuum Switching
25860 90910-12089 Valve Assy, Vacuum Switching
25861 25861-11040 Bracket, Vacuum Switching Valve
896390 89639-0K010 Wire, Brake Control
9017906274 90179-06274 Nut
9046607002 90466-07002 Clamp Or Clip(For Air Hose)
9099992002 90999-92002 Air Hose (300 mm)
9167180612 91671-80612 Bolt
9167180616 91671-80616 BOLT FLANGE
9167180816 91671-80816 Bolt (For Transmission Control Cable Bracket)
9167281225 91672-81225 New Genuine Part
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9613241000 96132-41000 Clip, No.1(For Idle-Up Hose)
9613741301 96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose)
