GDJ155

Toyota LAND-CRUISER-PRADO · 2015 · 4,889 parts · 239 categories
GDJ155 ×

← Back to categories

4,889 items

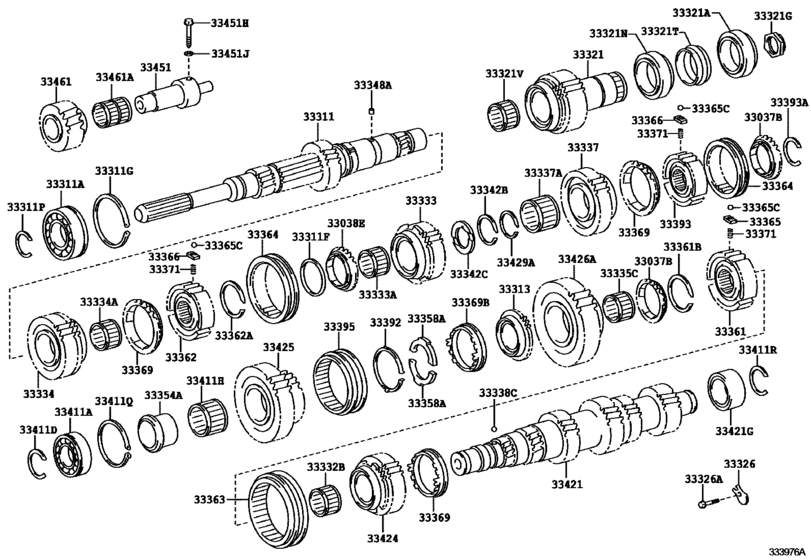

Transmission Gear (Mtm) ([08.2009 - ] RA61F (0908- )6F) 104
#OEMPart name
33037 33037-35020 Ring Set, Synchronizer, No.1
33037 33037-35050 Ring Set, Synchronizer, No.1
33038 33038-35010 Ring Set, Synchronizer, No.2
33311 33311-60221 Shaft, Input
33311 90363-34002 Bearing (For Input Shaft Front)
33311 90560-45004 Spacer (For Input Shaft)
33311 90520-81007 Ring, Shaft Snap (For Front Bearing)
33311 90520-31026 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-31027 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-31028 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-31029 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-31030 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-31031 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33313 33313-35010 Piece, Reverse Gear Spline
33321 33302-35022 Shaft, Output
33321 90366-50089 Bearing (For Output Shaft Rear)
33321 90179-48004 Nut (For Manual Transmission Output Shaft Rear Set)
33321 90366-50097 Bearing (For Output Shaft Front)
33321 35469-35030 Spacer (For Output Shaft)
33321 90364-33017 Bearing (For Output Shaft Center)
33321 90364-T0038 Bearing, Input Shaft
33326 33326-35010 Plate, Bearing Lock
33326 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
33332 90364-54007 Bearing, Needle Roller (For 2Nd Gear)
33333 33034-35111 Gear, 3Rd
33333 90364-45010 Bearing, Needle Roller (For 3Rd Gear)
33334 33035-35010 Gear, 4Th
33334 90364-45011 Bearing, Needle Roller (For 4Th Gear)
33335 90364-48002 Bearing, Needle Roller(For 1St Gear)
33337 33037-60060 Gear Sub-Assy, 6Th
33337 90364-42003 Bearing, Needle Roller (For 6Th Gear)
33338 90360-06004 Ball, Detent(For Gear Shift Head No.4)
33338 90080-36191 Ball, Check Valve
33342 90520-39026 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-39027 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-39028 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-39029 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-39030 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-39031 Ring, Shaft Snap (For Gear Thrust Washer)
33342 33342-35010 Washer, 3Rd Gear Thrust
33348 90250-04056 Pin, Straight (For Gear Thrust Washer)
33354 33354-35010 Race, Reverse Gear Bearing, Inner
33358 33358-35010 Key, Synchromesh Shifting, No.4
33361 33361-35050 Hub, Transmission Clutch, No.1
33361 90520-45013 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-45014 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-45015 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-45016 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-45017 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-45018 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-45019 Ring, Shaft Snap (For Clutch Hub No.1)
33362 33362-35050 Hub, Transmission Clutch, No.2
33362 90520-42012 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-42013 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-42014 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-42015 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-42016 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-42017 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-42018 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33363 33363-35041 Sleeve, Transmission Hub, No.1
33364 33364-35061 Sleeve, Transmission Hub, No.2
33365 33365-35050 Key, Synchromesh Shifting, No.1
33365 90360-05010 Ball(For Synchromesh Shifting Key)
33366 33366-35060 Key, Synchromesh Shifting, No.2
33369 33369-35050 Ring, Synchronizer, No.1
33369 33369-35060 Ring, Synchronizer, No.3
33369 33381-35011 Ring, Synchronizer, No.4
33371 33371-53010 Spring, Synchromesh Shifting Key, No.1
33392 33392-35010 Spring, Synchromesh Shifting Key, No.3
33393 33393-35061 Hub, Transmission Clutch, No.3
33393 90520-33022 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-33023 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-33024 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-33025 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-33026 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-33027 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-33028 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33395 33395-35051 Sleeve, Transmission Hub, No.3
33411 90363-34003 Bearing Or Roller(For Counter Gear Front)
33411 90520-31015 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31016 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31017 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31018 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31019 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31020 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31021 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31022 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31023 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31024 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31025 Ring, Counter Gear Front Bearing Snap, No.1
33411 90520-31033 Ring, Counter Gear Front Bearing Snap, No.1
33411 90364-45009 Bearing Or Roller(For Counter Gear Rear)
33411 90520-68005 Ring, Counter Gear Front Bearing Snap, No.2
33421 33421-60210 Gear, Counter
33421 90365-34009 Bearing, Radial Ball(For Counter Gear Rear)
33424 33424-35011 Gear, Counter Shaft 2Nd Speed
33425 33425-35010 Gear, Countershaft Reverse
33426 33426-35011 Gear, Countershaft, 1St Speed
33429 90562-42002 Ring, Shaft Snap
33451 33451-60050 Shaft, Reverse Idler Gear
33451 90105-10530 Bolt (For Reverse Idler Gear Shaft)
33451 90430-10021 Gasket (For Reverse Idler Gear Shaft)
33461 33461-60061 Gear, Reverse Idler
33461 90364-23005 Bearing, Reverse Idler Gear
