GDJ155

Toyota LAND-CRUISER-PRADO · 2015 · 4,889 parts · 239 categories

← Back to categories

4,889 items

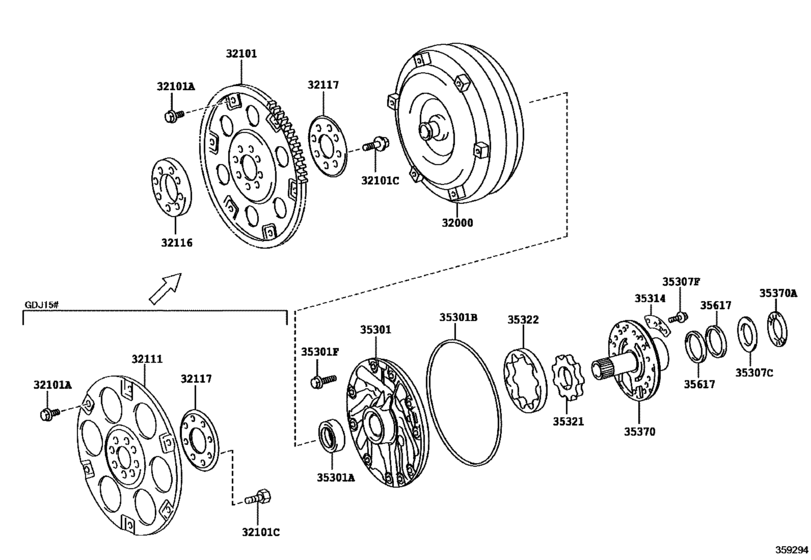

Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC) 18

#	OEM	Part name
32000	32000-71070	Converter Assy, Torque
32101	90105-10413	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10546	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-13010	Bolt, Flywheel Setting
32111	32111-71010	Plate, Pump Impeller Drive
32117	32117-60050	Spacer, Drive Plate, Rear
35301	35301-71010	Body Sub-Assy, Front Oil Pump
35301	90311-38101	Seal, Oil (For Front Oil Pump)
35301	35697-60010	Ring, O (For Front Oil Pump Body)
35301	90105-08091	Bolt (For Front Oil Pump Setting)
35307	35789-71070	Race, Thrust Bearing (For Stator Shaft)
35307	90148-60079	Bolt (For Stator Shaft)
35314	35314-71010	Plate, Front Oil Pump
35321	35321-71010	Gear, Front Oil Pump Drive
35322	35322-71010	Gear, Front Oil Pump Driven
35370	35370-71010	Shaft Assy, Stator
35370	90374-71002	Bearing,needle Roller
35617	35617-50030	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
32000-71070	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
32111-71010	Plate, Pump Impeller Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
32117-60050	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
35301-71010	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
35314-71010	Plate, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
35321-71010	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
35322-71010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
35370-71010	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
35617-50030	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
35697-60010	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
35789-71070	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
90105-08091	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
90105-10413	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
90105-10546	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
90105-13010	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
90148-60079	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
90311-38101	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
90374-71002	Bearing,needle Roller	Torque Converter, Front Oil Pump & Chain (Atm) ([06.2015 - ] AC60F (1506- )6FC)
