Search › Model › GDJ155
GDJ155

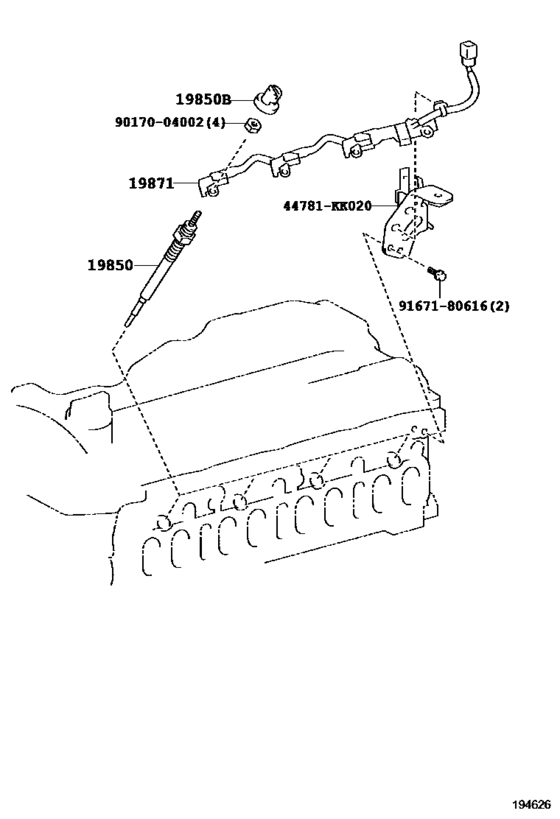

Ignition Coil & Spark Plug ([06.2015 - ] (1506- )1GDFTV) 7
| # | OEM | Part name |
|---|---|---|
| 19850 | 19850-11010 | Plug Assy, Glow |
| 19850 | 19850-11040 | PLUG ASSY, GLOW |
| 19850 | 90189-04024 | Grommet, Screw(For Glow Plug) |
| 19871 | 19871-11010 | Connector, Glow Plug No.1 |
| 44781 | 44781-KK020 | Bracket, Hose |
| 9017004002 | 90170-04002 | Nut, Connecting(For Glow Plug) |
| 9167180616 | 91671-80616 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 19850-11010 | Plug Assy, Glow | Ignition Coil & Spark Plug ([06.2015 - ] (1506- )1GDFTV) |
| 19850-11040 | PLUG ASSY, GLOW | Ignition Coil & Spark Plug ([06.2015 - ] (1506- )1GDFTV) |
| 19871-11010 | Connector, Glow Plug No.1 | Ignition Coil & Spark Plug ([06.2015 - ] (1506- )1GDFTV) |
| 44781-KK020 | Bracket, Hose | Ignition Coil & Spark Plug ([06.2015 - ] (1506- )1GDFTV) |
| 90170-04002 | Nut, Connecting(For Glow Plug) | Ignition Coil & Spark Plug ([06.2015 - ] (1506- )1GDFTV) |
| 90189-04024 | Grommet, Screw(For Glow Plug) | Ignition Coil & Spark Plug ([06.2015 - ] (1506- )1GDFTV) |
| 91671-80616 | BOLT FLANGE | Ignition Coil & Spark Plug ([06.2015 - ] (1506- )1GDFTV) |
