Search › Model › GDJ155
GDJ155

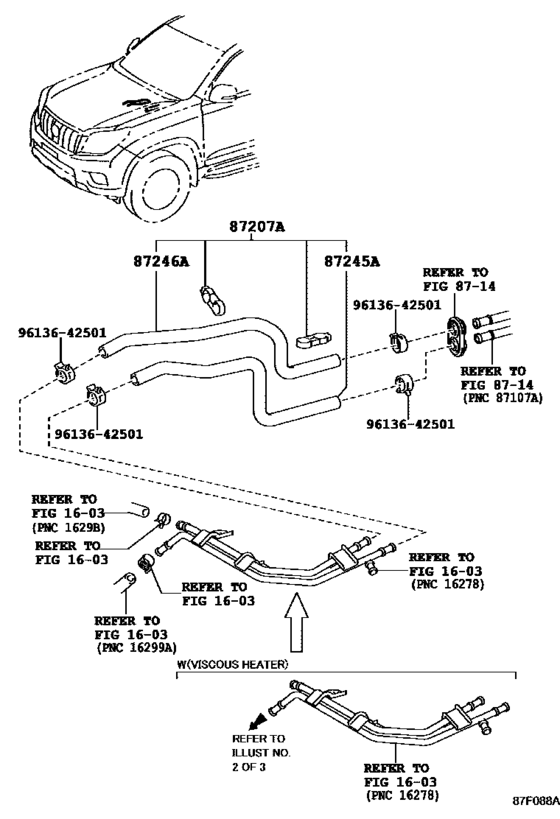

Heating & Air Conditioning - Water Piping ([06.2015 - ] FRONT (1506- )GDJ15#) 4
| # | OEM | Part name |
|---|---|---|
| 87207 | 87209-60G50 | Pipe & Hose Sub-Assy, Water A |
| 87245 | 87245-60L90 | Hose, Heater Water, Inlet A |
| 87246 | 87245-60L80 | Hose, Heater Water, Outlet A |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87209-60G50 | Pipe & Hose Sub-Assy, Water A | Heating & Air Conditioning - Water Piping ([06.2015 - ] FRONT (1506- )GDJ15#) |
| 87245-60L80 | Hose, Heater Water, Outlet A | Heating & Air Conditioning - Water Piping ([06.2015 - ] FRONT (1506- )GDJ15#) |
| 87245-60L90 | Hose, Heater Water, Inlet A | Heating & Air Conditioning - Water Piping ([06.2015 - ] FRONT (1506- )GDJ15#) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([06.2015 - ] FRONT (1506- )GDJ15#) |
