Search › Model › GDJ155
GDJ155

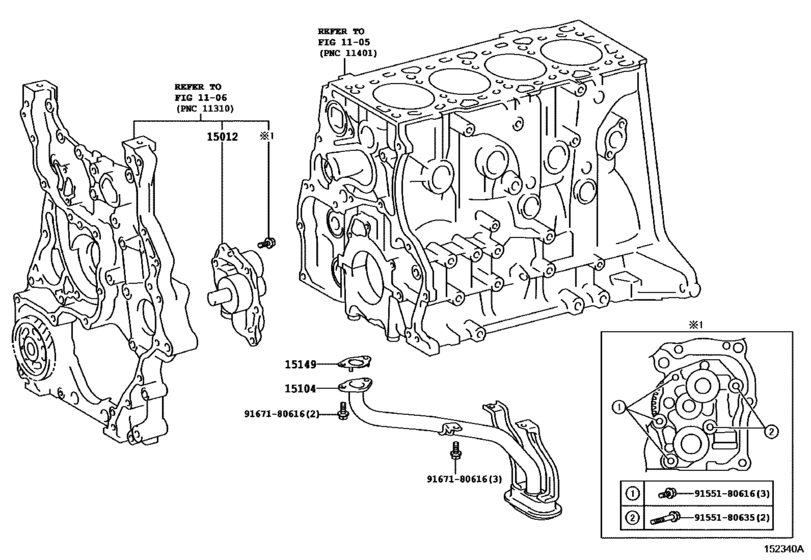

Engine Oil Pump ([06.2015 - ] (1506- )1GDFTV) 6
| # | OEM | Part name |
|---|---|---|
| 15012 | 15012-11030 | Cover Sub-Assy, Oil Pump |
| 15104 | 15104-11210 | Strainer Sub-Assy, Oil |
| 15149 | 15149-11120 | Gasket, Oil Strainer Flange |
| 9155180616 | 91551-80616 | BOLT FLANGE |
| 9155180635 | 91551-80635 | Bolt(For Head To Camshaft Bearing Cap) |
| 9167180616 | 91671-80616 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 15012-11030 | Cover Sub-Assy, Oil Pump | Engine Oil Pump ([06.2015 - ] (1506- )1GDFTV) |
| 15104-11210 | Strainer Sub-Assy, Oil | Engine Oil Pump ([06.2015 - ] (1506- )1GDFTV) |
| 15149-11120 | Gasket, Oil Strainer Flange | Engine Oil Pump ([06.2015 - ] (1506- )1GDFTV) |
| 91551-80616 | BOLT FLANGE | Engine Oil Pump ([06.2015 - ] (1506- )1GDFTV) |
| 91551-80635 | Bolt(For Head To Camshaft Bearing Cap) | Engine Oil Pump ([06.2015 - ] (1506- )1GDFTV) |
| 91671-80616 | BOLT FLANGE | Engine Oil Pump ([06.2015 - ] (1506- )1GDFTV) |
