GDJ150

Toyota LAND-CRUISER-PRADO · 2015 · 5,737 parts · 259 categories
GDJ150 ×

← Back to categories

5,737 items

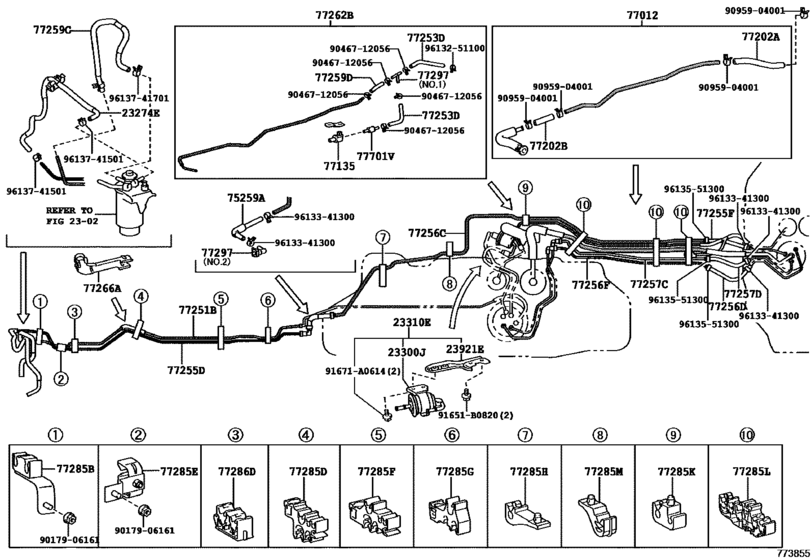

Fuel Tank & Tube ([06.2015 - ] FUEL TUBE,W(SUB TANK) (1506- )GDJ150) 51
#OEMPart name
23274 23274-11010 Hose, Fuel, No.3
23300 23300-30410 Filter Assy, Fuel
23310 23310-30020 Filter Assy, Fuel Pump
23921 23921-30060 Support, Fuel Filter
75259 77259-60F20 Hose, Fuel
77012 77012-60200 Tube Sub-Assy, Fuel Tank Breather
77012 77012-60201 Tube Sub-Assy, Fuel Tank Breather
77012 77012-60230 Tube Sub-Assy, Fuel Tank Breather
77012 77012-60231 Tube Sub-Assy, Fuel Tank Breather
77135 77135-42010 Bracket, Check Valve
77202 95313-13020 Hose, Fuel, No.1 (For Breather Tube)
77202 77269-35050 Hose, Fuel, No.1 (For Breather Tube)
77251 77251-60C00 Tube, Fuel Main
77253 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77253 95337-06020 Hose, Differential Pressure Control
77255 77255-60D00 Tube, Fuel Return
77255 95338-08022 Hose, Fuel, No.5 (For Main Tube, No.1) - FUEL, NO.2 (FOR FUEL RETURN TUBE)
77256 77256-60A40 Tube, Fuel Return, No.2
77256 95338-08026 Hose, Fuel, No.1 (For Fuel Return No.2 Tube)
77256 77256-60810 Tube, Fuel Return, No.2
77257 77255-60B70 Tube, Fuel Return, No.2
77259 77259-60F00 Hose, Fuel
77259 95333-06010 Hose, Fuel
77262 77019-60180 Tube, Fuel Tank To Canister, No.2
77266 77266-60150 Protector, Fuel Tube, No.1
77285 77285-60D70 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35670 Clamp, Fuel Tube, No.1
77285 77285-35660 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35680 Clamp, Fuel Tube, No.1
77285 77285-60D80 Clamp, Fuel Tube, No.1
77285 77285-35700 Clamp, Fuel Tube, No.1
77285 77285-35610 Clamp, Fuel Tube, No.1
77285 77285-35770 Clamp, Fuel Tube, No.1
77285 77285-60C20 Clamp, Fuel Tube, No.1
77285 77285-35710 Clamp, Fuel Tube, No.1
77286 77285-60C30 Clamp, Fuel Tube, No.2
77297 77297-52030 Connector, Fuel Tube
77297 77297-60030 Connector, Fuel Main Tube - FUEL TUBE
77701 90917-10092 Valve, Check (For Sub-Fuel Tank)
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91671 91671-A0614 Bolt
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9095904001 90959-04001 Clip, Fuel Hose
9613251100 96132-51100 Clip (For Hose)
9613341300 96133-41300 Clip(For Air Hose No.6)
9613551300 96135-51300 Clamp, Hose
9613741501 96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
9613741701 96137-41701 Clamp Or Clip, Hose(For Water By-Pass Hose)
