GDJ150

Toyota LAND-CRUISER-PRADO · 2015 · 5,737 parts · 259 categories
GDJ150 ×

← Back to categories

5,737 items

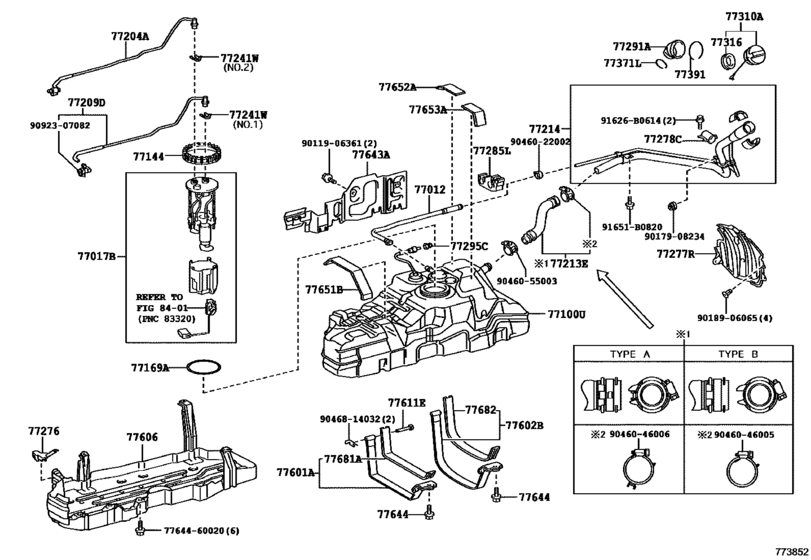

Fuel Tank & Tube ([06.2015 - ] FUEL TANK (1506- )GDJ150) 59
#OEMPart name
77012 77012-60200 Tube Sub-Assy, Fuel Tank Breather
77012 77012-60201 Tube Sub-Assy, Fuel Tank Breather
77012 77012-60230 Tube Sub-Assy, Fuel Tank Breather
77012 77012-60231 Tube Sub-Assy, Fuel Tank Breather
77017 77010-60191 Tube Sub-Assy, Fuel Tank Vent
77100 77001-60A30 Tank Sub-Assy, Fuel
77100 77001-60A50 Tank Sub-Assy, Fuel
77144 77144-35010 Retainer, Fuel Pump Gauge
77169 77169-30050 Gasket, Fuel Suction Tube Set - (for the fuel tank pump housing)
77204 77204-60140 Tube, Fuel Tank Return
77209 77209-60750 Tube Sub-Assy, Fuel Tank Main
77209 77209-60760 Tube Sub-Assy, Fuel Tank Main
77213 77213-60360 Hose, Fuel Tank To Filler Pipe
77213 77213-60390 Hose, Fuel Tank To Filler Pipe
77214 77210-60130 Pipe, Fuel Tank Filler
77214 77210-60410 Pipe, Fuel Tank Filler
77214 77300-12020 Cap Assy, Fuel Tank
77214 77300-12030 Cap Assy, Fuel Tank (For Diesel)
77214 77210-60150 Pipe, Fuel Tank Filler
77241 77241-33011 Clip, Tube Joint
77241 77241-35450 Tube, Fuel Tank Suction
77276 77276-35040 Protector, Fuel Hose
77277 77277-60150 Protector, Fuel Tank Filler Pipe
77278 77277-60190 Protector, Fuel Tank Filler Pipe, No.2
77285 77285-35770 Clamp, Fuel Tube, No.1
77285 77285-60C20 Clamp, Fuel Tube, No.1
77291 77291-60130 Shield, Fuel Tank Filler Pipe
77295 77295-27010 Grommet, Fuel Tube
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77371 77371-35010 Ring, Fuel Tank Filler Pipe Shield
77391 77391-12060 Ring, Fuel Inlet Box
77601 77601-60340 Band Sub-Assy, Fuel Tank, No.1
77601 77601-60420 Band Sub-Assy, Fuel Tank, No.1
77602 77602-60120 Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-60190 Protector Sub-Assy, Fuel Tank, No.1
77611 77653-35040 Pin (For Fuel Tank Band)
77643 77643-35020 Protector, Fuel Tank, No.3
77643 77643-35040 Protector, Fuel Tank, No.3
77644 77644-35030 Bolt, Fuel Tank
77651 77651-35070 Cushion, Fuel Tank
77652 77652-35060 Cushion, Fuel Tank, No.2
77653 77653-35050 Cushion, Fuel Tank, No.3
77681 77681-60210 Seat, Fuel Tank Band
77682 77681-35041 Seat, Fuel Tank Band
91626 91626-B0614 BOLT, W/WASHER
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
7764460020 77644-60020 Bolt, Fuel Tank
9011906361 90119-06361 BOLT WWASHER
9017908234 90179-08234 NUT
9018906065 90189-06065 CLIP
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046046006 90460-46006 Clamp (For Fuel Filler Pipe)
9046055003 90460-55003 Clamp Or Clip(For Air Hose, No.1)
9046814032 90468-14032 CLIP
9092307082 90923-07082 New Genuine Part
