GDH201

Toyota HIACE · 2017 · 3,172 parts · 182 categories

3,172 items

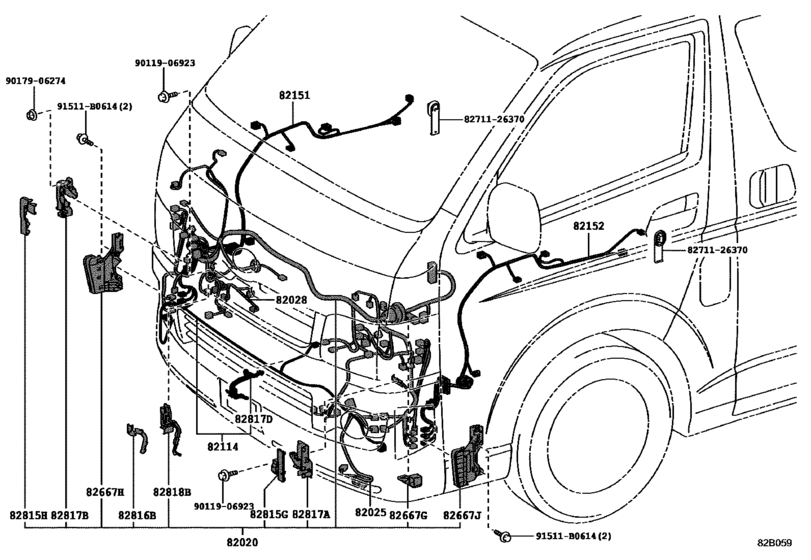

Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201) 20

#	OEM	Part name
82020	82020-26F50	Harness Assy, Wiring Cowl To Headlamp
82025	82025-26020	Wiring Sub-Assy, Front Side
82028	82028-26060	Wiring Sub-Assy, Cowl
82114	82114-26063	Wire, Engine Room, No.4
82151	82151-26571	Wire, Front Door, Rh
82152	82152-26502	Wire, Front Door, Lh
82667	82666-26300	Holder, Connector No.9
82667	82666-26312	Holder, Connector, No.23
82667	82666-26322	Holder, Connector, No.24
82815	82815-26A90	Cover, Wiring Harness Protector No.5
82815	82815-26611	Cover, Wiring Harness Protector No.6
82816	82815-26A80	Cover, Wiring Harness Protector, No.1
82817	82817-26N20	Protector, Wiring Harness, No.2
82817	82817-26B21	Protector, Wiring Harness, No.3
82817	82817-26J71	Protector, Wiring Harness, No.5
82818	82817-26N10	Protector, Wiring Harness, No.3
91511	91511-B0614	BOLT, FLANGE
8271126370	82711-26370	Wire, Fuse To Fuse(for Combustion Heater)
9011906923	90119-06923	BOLT WWASHER
9017906274	90179-06274	Nut

OEM	Part name	Category
82020-26F50	Harness Assy, Wiring Cowl To Headlamp	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82025-26020	Wiring Sub-Assy, Front Side	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82028-26060	Wiring Sub-Assy, Cowl	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82114-26063	Wire, Engine Room, No.4	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82151-26571	Wire, Front Door, Rh	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82152-26502	Wire, Front Door, Lh	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82666-26300	Holder, Connector No.9	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82666-26312	Holder, Connector, No.23	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82666-26322	Holder, Connector, No.24	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82711-26370	Wire, Fuse To Fuse(for Combustion Heater)	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82815-26611	Cover, Wiring Harness Protector No.6	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82815-26A80	Cover, Wiring Harness Protector, No.1	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82815-26A90	Cover, Wiring Harness Protector No.5	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82817-26B21	Protector, Wiring Harness, No.3	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82817-26J71	Protector, Wiring Harness, No.5	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82817-26N10	Protector, Wiring Harness, No.3	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
82817-26N20	Protector, Wiring Harness, No.2	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
90119-06923	BOLT WWASHER	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
90179-06274	Nut	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
91511-B0614	BOLT, FLANGE	Wiring & Clamp ([12.2016 - ] FRONT DOOR & HEADLAMP (1612- )GDH201)
